Product Details:
|
| Name: | Glass Washing Machine Technical Parameters | Maximum Glass Width: | 2500mm (effective Maximum: 2650mm) |
|---|---|---|---|
| Minimum Glass Specification: | 400mm×400mm (limited To Single Row On Left And Right Sides) | Glass Thickness: | 3mm-25mm (digital Display) |
| Speed Range: | Glass Thickness Within 3-25mm Vmax=1-12m/min | Color: | Option |
| High Light: | W2500mm Vertical Glass Washing Machine,Feeding Section Vertical Glass Washing Machine,W2500mm Glass Cleaning Machine |
||

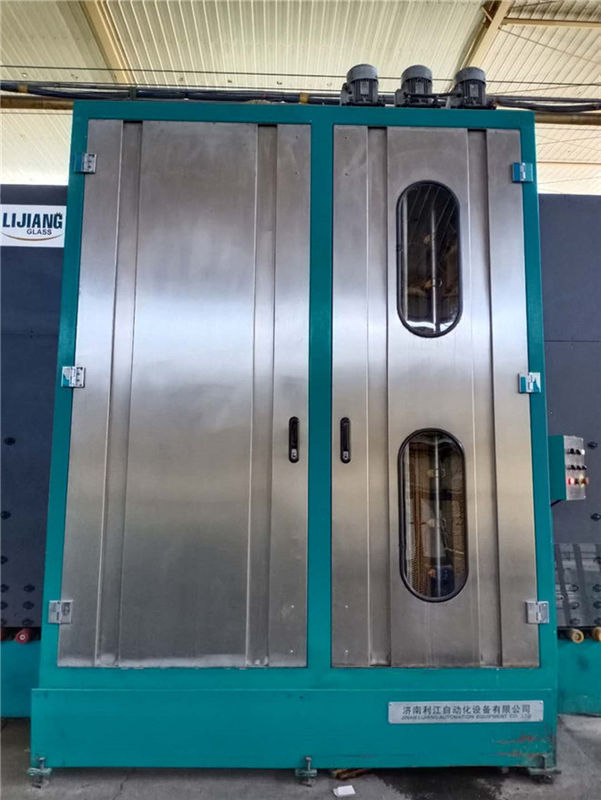

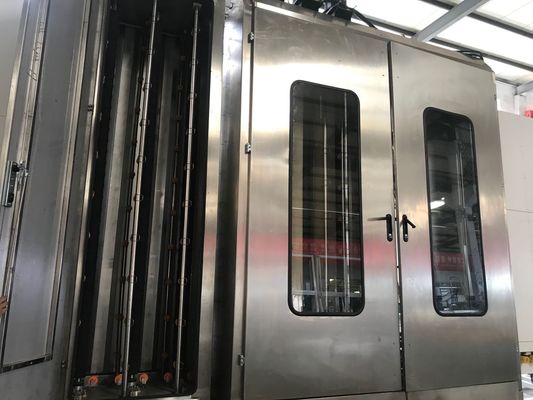

Glass washing machine technical parameters CP-2500A (12 m/min)
1, USES of glass cleaning machine glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high-quality Low-E glass,it is composed of the incoming segment, cleaning air-drying segment and outgoing segment.
2. The remaining sheet metal parts are sprayed with advanced mechanical paint or powder.
3. Rubber rollers are made of vulcanized rubber with a stainless steel shaft.
4. The cleaning part that comes in contact with water is made of stainless steel.
5. Cleaning department, lift for the entire wind staff, maximum lift: 350mm, easy to clean and maintain.
6. Three pairs of brushes (Ø150mm) stainless steel shaft construction (Low-E glass, regular coated glass, and sunshine coated glass can be cleaned without damaging the coated surface).
7. Two sets of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with the heating system (with temperature control, optional opening and closing).
8. The fan is equipped with an air filter in the air inlet chamber, which has a large amount of air and an excellent air drying effect.
The entire fan box is located at the top of the workshop and has an air filter screen on the side for easy inspection and cleaning.
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
|
Main drive, brush speed regulation method |
frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100 |
| Weight | 3940kg |
Frequently Asked Questions
Q: What is Kation's after-sales service system?
A: Kation has its own service system, creating a "tree of knowledge" for guides.
Customers can find the usual problems and answers when they meet.
Q: What are the details of after-sales service?
A: Step 1: Notification before installation
Step 2: Check before installation
Step 3: Onsite installation
Step 4: Onsite debugging
Step 5: Onsite training
Step 6: Client sign
Step 7: Online service
Step 8: Technical service
For more information, please search www.lijiang-glass.com.
Q: What are the payment terms?
A: You can negotiate T / T, L / C and other payment terms.
Q: What is the warranty for this machine?
A: 1) 12 months warranty.
2) 24-hour technical support by email or phone
3) English manual and video tutorial
4) We will provide consumable parts at the agency price.
5) 24 hours daily online service, free technical support.
