Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame

Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame
Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame
Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame

Large Image :  Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame

Product Details:
Place of Origin: Jinan City, Shandong Province, China
Brand Name: Jinan Lijiang Glass Machinery
Certification: CE & ISO9000
Model Number: LJTB01 Butyl Extruder Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Discussible
Packaging Details: Wooden Cases Package
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 sets per month
Contact Now

Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame

Description
Voltage: 380V 50HZ Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas Power(w): 3KW
Air Pressure: 0.5-0.8Mpa Product Name: Insulating Glass Making Machine Butyl Extruder Machine
Warranty: 1year Application: Extruding The Hot Melt Butyl Into Insulating Glass
Conveying Speed: 0-30m/min Power: 3kw
Power Supply: 380V 50Hz Function: Double Glass Aluminum Spacer
Extruding Pressure: 110-160℃,10-15Mpa
High Light:

15Mpa Butyl Extruder Machine

,

Spacer Frame Butyl Extruder Machine

,

15Mpa extrusion coating machine

Product Description

LJTB01 Butyl Extruder Machine

Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame 0

LJTB01 Butyl Extruder Machine

This type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
4-30mm
Speed
0-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW, 50HZ
Dimension
2600×680×1100mm(L×W×H)
Weight
650kg
Detailed Images

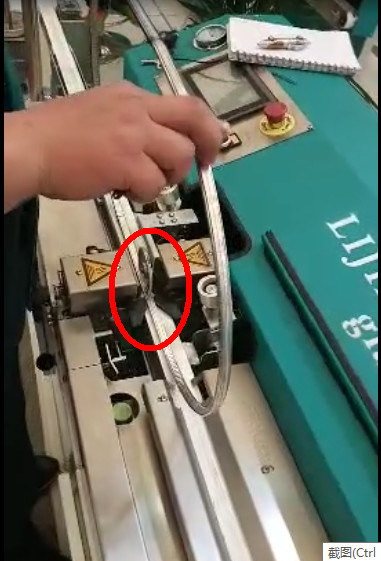

1, Filter out debris automatically through auto exhaust, keep spreading quickly and
evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.
5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing material automatically.

Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame 1







Benefits & Advantages

1.The machine height of can be adjusted according to the size of spacer frame 2.The machine time could be adjusted 3.The machine adopts auto loading and replenish 4.The machine adopts auto drilling, filling and sealing function 5.It use Germany Siemens PLC control system 6.The touching screen interface, simple and visible 8.It adopts vacuum pump loading device ,increase the loading speed 9.The desiccant filling machine could use big bucket desiccant ,save desiccant refill time, improve the work efficiency.
Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame 2



The Unique ID Code Number
All the electrical wires of the machine parts, have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.
Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame 3

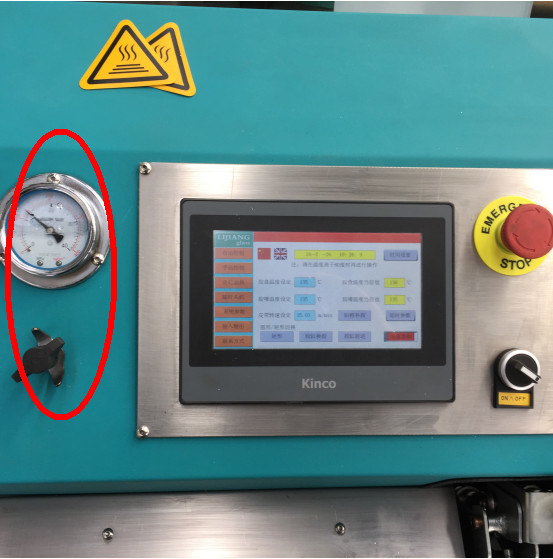

The Touching Screen Interface
The touching screen interface, which the parts of machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.
Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame 4



The Materials Bucket
The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)
Insualting Glass Machine 15Mpa Butyl Extruder Machine For Aluminum Spacer Frame 5



The Electrical Component
The electrical component are all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.
