Insulated Glass Double Glass 10mpa Hot Melt Coating Machine For Spreading Aluminum Spacer Frames Evenly

Insulated Glass Double Glass 10mpa Hot Melt Coating Machine For Spreading Aluminum Spacer Frames Evenly
Insulated Glass Double Glass 10mpa Hot Melt Coating Machine For Spreading Aluminum Spacer Frames Evenly
Insulated Glass Double Glass 10mpa Hot Melt Coating Machine For Spreading Aluminum Spacer Frames Evenly Insulated Glass Double Glass 10mpa Hot Melt Coating Machine For Spreading Aluminum Spacer Frames Evenly Insulated Glass Double Glass 10mpa Hot Melt Coating Machine For Spreading Aluminum Spacer Frames Evenly Insulated Glass Double Glass 10mpa Hot Melt Coating Machine For Spreading Aluminum Spacer Frames Evenly Insulated Glass Double Glass 10mpa Hot Melt Coating Machine For Spreading Aluminum Spacer Frames Evenly

Large Image :  Insulated Glass Double Glass 10mpa Hot Melt Coating Machine For Spreading Aluminum Spacer Frames Evenly

Product Details:
Place of Origin: Jinan City, Shandong Province, China
Brand Name: Jinan Lijiang Glass Machinery
Certification: CE & ISO9000
Model Number: LJTB01 Butyl Extruder Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Discussible
Packaging Details: Wooden Cases Package
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 sets per month
Contact Now

Insulated Glass Double Glass 10mpa Hot Melt Coating Machine For Spreading Aluminum Spacer Frames Evenly

Description
Name: Automatic Butyl Extruder Dimension(L*W*H): 2600mm*680mm*1100mm
Glass Thickness: 3-25mm Speed: 5-47m/min
Air Pressure: ≥0.6MPa Voltage: 380V, 5Kw, 50Hz
Color: Personality Customization Diameter Of Butyl Cylinder: 200mm
High Light:

10mpa Hot Melt Coating Machine

,

Aluminum Spacer Hot Melt Coating Machine

,

10mpa hot melt coater

Butyl extruder machine for spreading aluminum spacer frames evenly with hot melt butyl



Insulated Glass Double Glass 10mpa Hot Melt Coating Machine For Spreading Aluminum Spacer Frames Evenly 0

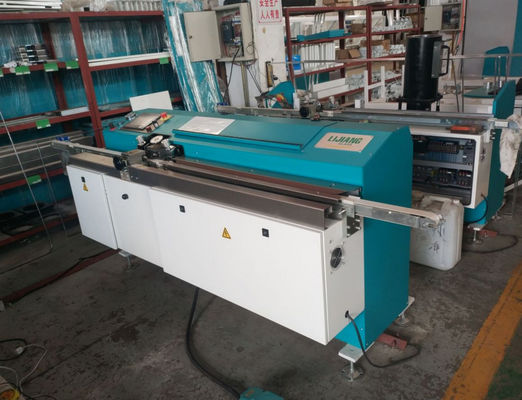

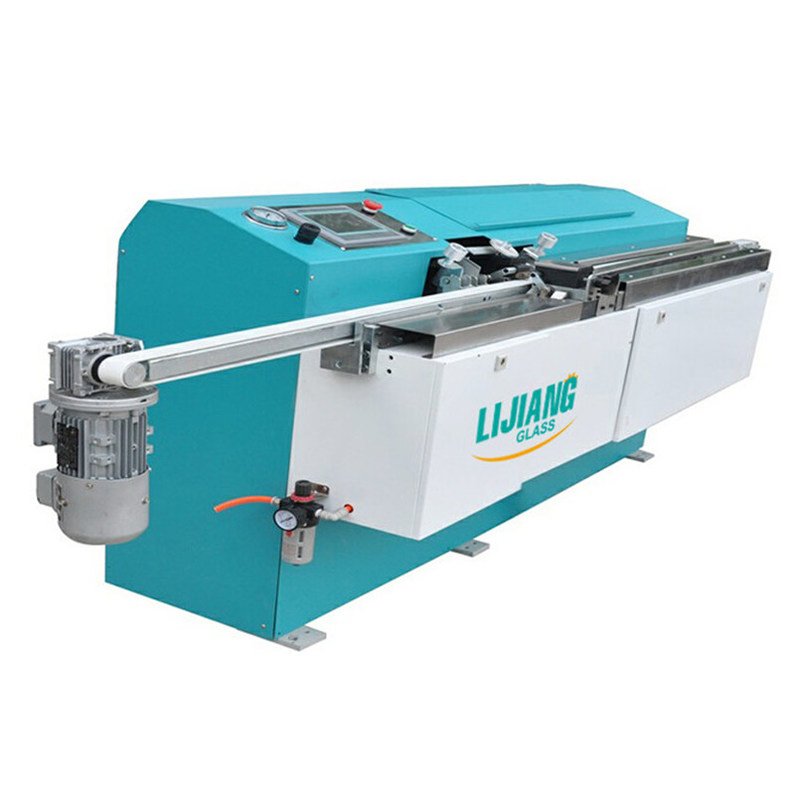

LJTB01 Butyl Extruder Machine

This type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.



Benefits & Advantages

1.The machine height of can be adjusted according to the size of spacer frame 2.The machine time could be adjusted 3.The machine adopts auto loading and replenish 4.The machine adopts auto drilling, filling and sealing function 5.It use Germany Siemens PLC control system 6.The touching screen interface, simple and visible 8.It adopts vacuum pump loading device ,increase the loading speed 9.The desiccant filling machine could use big bucket desiccant ,save desiccant refill time, improve the work efficiency.
Insulated Glass Double Glass 10mpa Hot Melt Coating Machine For Spreading Aluminum Spacer Frames Evenly 1



The Unique ID Code Number
All the electrical wires of the machine parts, have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.
Insulated Glass Double Glass 10mpa Hot Melt Coating Machine For Spreading Aluminum Spacer Frames Evenly 2



The Touching Screen Interface
The touching screen interface, which the parts of machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.
Insulated Glass Double Glass 10mpa Hot Melt Coating Machine For Spreading Aluminum Spacer Frames Evenly 3



The Materials Bucket
The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)
Insulated Glass Double Glass 10mpa Hot Melt Coating Machine For Spreading Aluminum Spacer Frames Evenly 4



The Electrical Component
The electrical component are all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.
Item.
Spec.
filling aluminum frame max size
2000mm*2000mm
filling aluminum frame min size
300mm*250mm
molecular sieve diameter needed
0.5-0.9mm
Dimension
1300mm*1100mm*3650mm
Air source
≥0.65MPa
Total power
220V 50Hz 1.5Kw
Name
Brand
PLC
Germany SIEMENS
Triplet
TAIWAN AIRTAC
Low voltage electrical apparatus
Germany SIEMENS
Solenoid valve
TAIWAN AIRTAC
Sensor
Korea AUTONICS
Gas driller
Taiwan BOA
Guide
Taiwan TBI
Switch power
Taiwan TEND
