Product Details:
|
| Name: | Butyl Extruder Machine | Squeeze Pressure: | 10-18MPa |
|---|---|---|---|
| Temperature: | 110~140℃ | Aluminum Spacer Width: | 4-30mm |
| Speed: | 0-47m/min | ||
| High Light: | 110C Butyl Extruder,Cylinder 200mm Butyl Extruder,Cylinder 200mm hot melt butyl extruder |
||
LJTB01 butyl extruder has complete functions and stable working mode

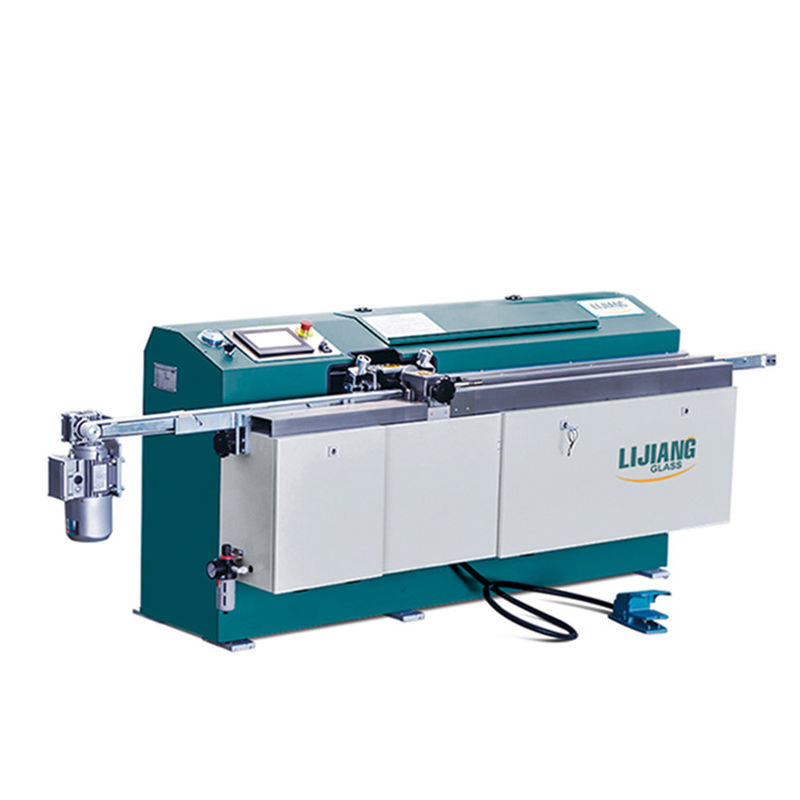

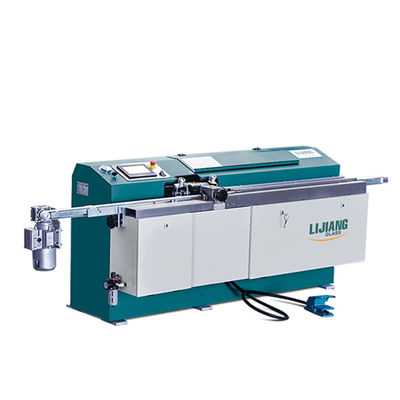

LJTB01 Butyl Extruder Machine
² Application of frequency converter
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly
with hot melt butyl. LJTB01 butyl extruder machine use large electrical control panel which makes
the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the
speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China.
² Technical Data of butyl silicone sealant
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600*680*1100mm(L*W*H) |
| Weight | 650kg |
² Main components
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
LJTB01 butyl extruder machine is very popular with energy-saving. Its squeezing system adopts
pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable.
The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier.
It can prolong the life of squeezing system and set the heating time in 24 hours with electricity
and air pressure. The distance of squeezing head can be adjusted automatically according
to different aluminum spacer. The LJTB01 butyl extruder machine has reached the worldwide
technology with the characteristic of complete function and stable working mode.
² Other features of china pneumatic
1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.
5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing material automatically.
