Product Details:
|
| Product Name: | Butyl Extruder Machine For Aluminum Spacer Bar | Application: | Making Double Glazing Glass Products Machine |
|---|---|---|---|
| After-sales Service Provided: | Engineers Service | Warranty: | 1 Year |
| Condition: | NEW MACHINE | Heating Time: | 15 Mins |
| Voltage: | 380V 50Hz 3P | ||
| High Light: | 3P Butyl Extruder Machine,glazing glass Butyl Extruder Machine,Aluminum Spacer Bar IGU Machine |
||

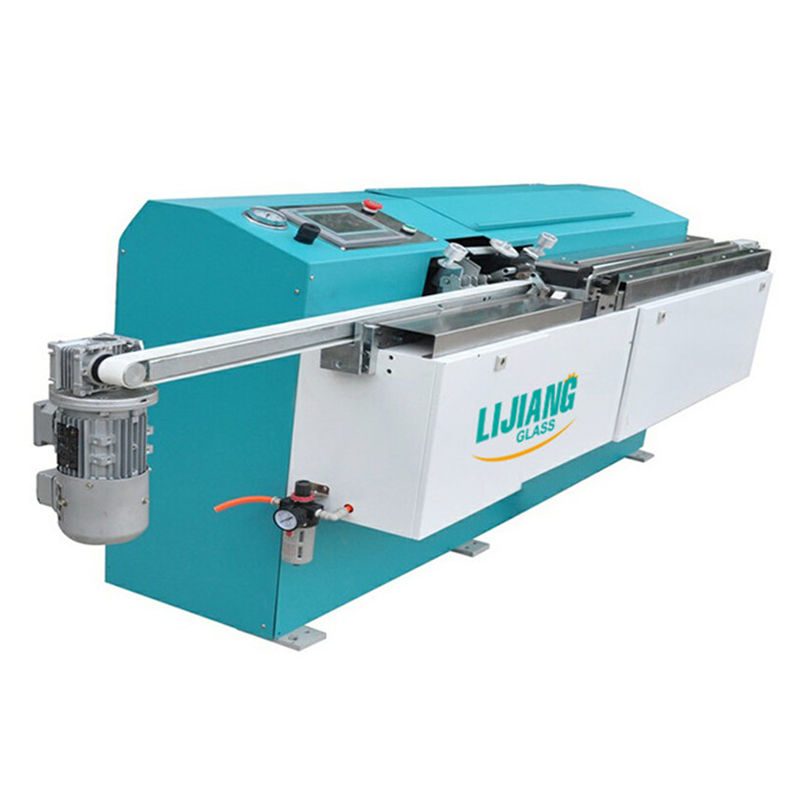

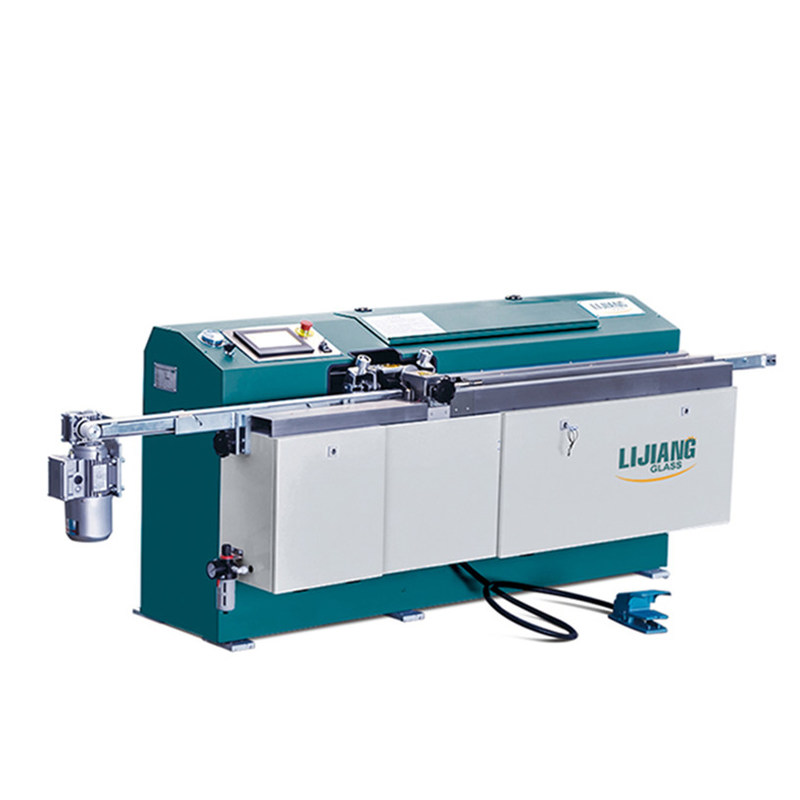

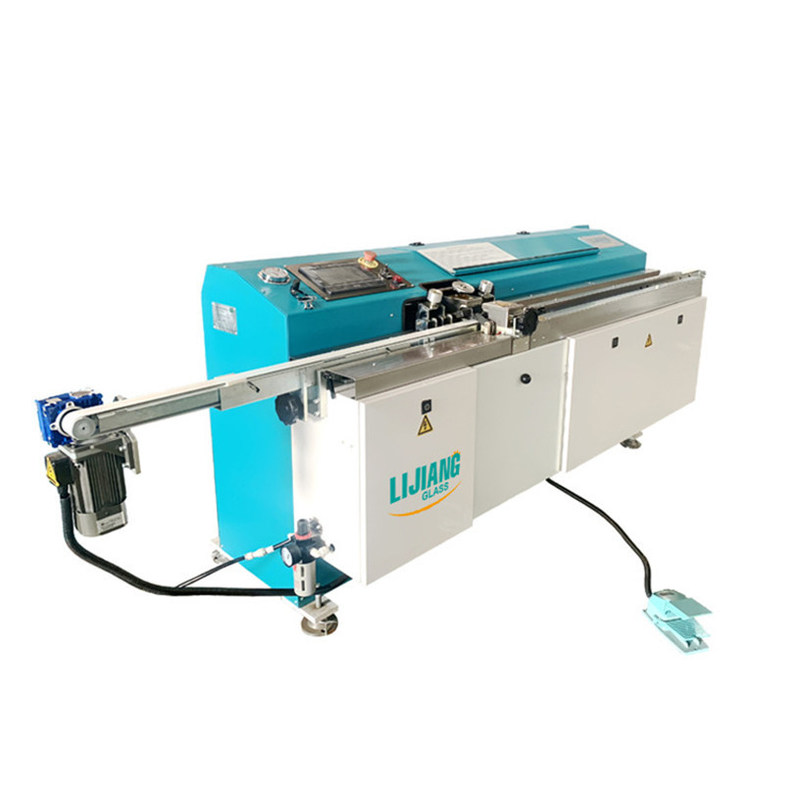

Overview of butyl sealant extruder machine
As one of the important equipment of producing IGU, the effect of butyl glue is directly related to the sealing of insulating glass. Butyl sealant extruder is automatic one, easy to operate and convenient to use.
Butyl sealant extruder machine is used for spreading spacer frames evenly with hot melt butyl. The operation of the butyl extruder is more easier than before,it uses large electrical control panel . The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min. Automatic Butyl extruder machine LJTB01 is a special equipment for the production of making Hollow glass.
Features of butyl sealant coating machine
1. It is convenient and practical to use movable vertical and horizontal sealant
2. The main accessories are German brands. PLC program control, stable performance
3. Unique design structure, with automatic exhaust function, to ensure continuous glue application
4. Non adhesive synchronous belt is used, and talcum powder is not needed for cleaning
5. Touch screen operation, simple and practical
6. Glue application speed can reach 47m / min
7. Automatically adjust the width of glue head, and the integrated control of quick opening valve ensures the consistency of double-sided gluing
8. It can save the glue consumption compared with the ordinary butyl rubber machine, and the gluing can reach 7g / m
9. The rubber cylinder adopts pull-up structure, which is convenient for operation
10. Automatically adjust the glue output according to the speed change
11. The hydraulic system imported from Germany is adopted to ensure even and full glue delivery
Details of Butyl sealant sealing machine
1.Simple operation,KINCO Touch Screen
Smart touch screen,Updated programming,Clear interface,
2.Stable performance,Adopt Siemens brand
Germany Siemens parts
3.Automatically alarm system, reminding adding butyl.
4.,More stable performance.Germany HAVE Valve,Adopt Germany’s Harvey valve
5.The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
Germany Maximator Cylinder
7.Detail picture of butyl sealant spreading machine
Optional functions:
200L glue cylinder is optional
Tech parameters of Butyl Coating machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
