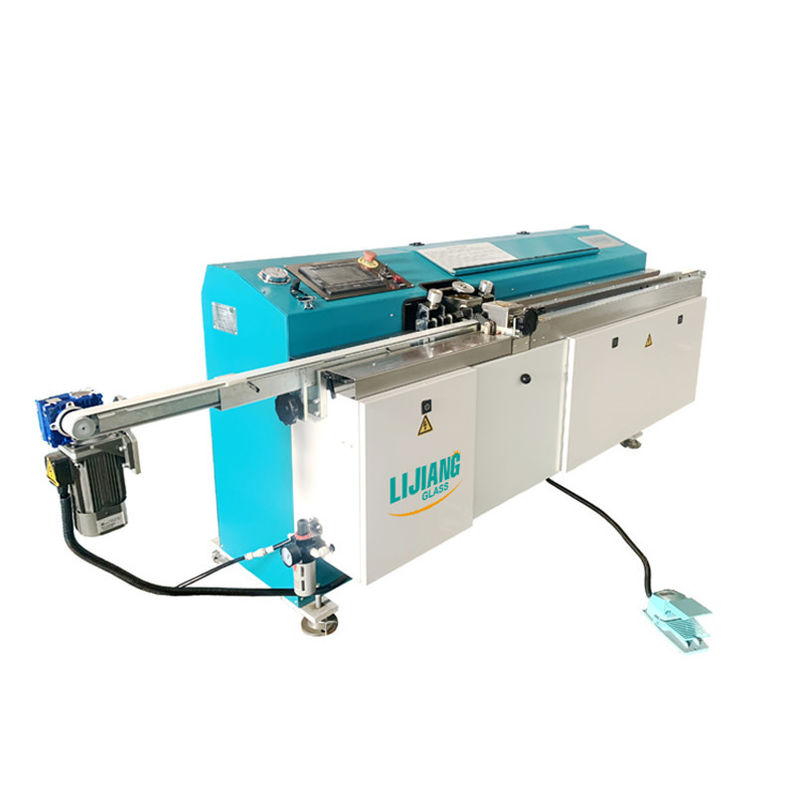

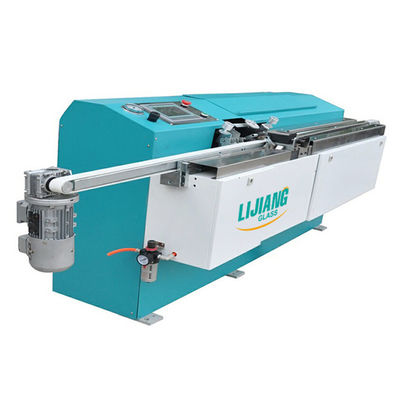

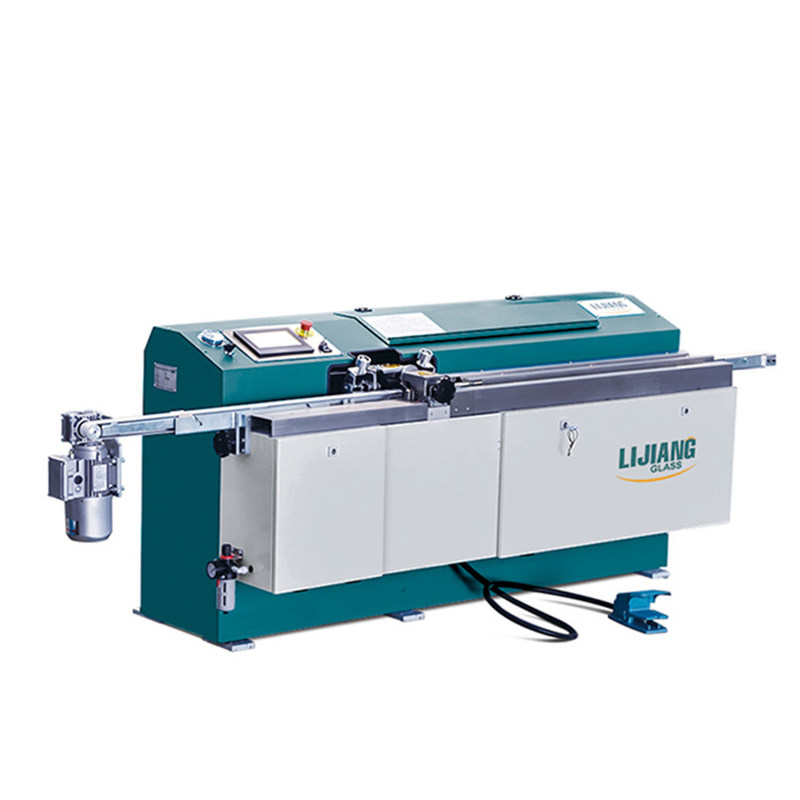

PLC Insulating Glass Butyl Extruder For Making Double Glazing Glass Units

PLC Insulating Glass Butyl Extruder For Making Double Glazing Glass Units
PLC Insulating Glass Butyl Extruder For Making Double Glazing Glass Units PLC Insulating Glass Butyl Extruder For Making Double Glazing Glass Units PLC Insulating Glass Butyl Extruder For Making Double Glazing Glass Units

Large Image :  PLC Insulating Glass Butyl Extruder For Making Double Glazing Glass Units

Product Details:
Place of Origin: JIANN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month

PLC Insulating Glass Butyl Extruder For Making Double Glazing Glass Units

Description
Production Name: Butyl Extruder Machine Coating Speed: 47m/min
Heating Time: 5 - 15 Mins Glue Barrel: 7 Kg
Machine Control: PLC And Servo Warranty: 1 Year
Voltage: 380V 50Hz 3P
High Light:

Insulating Glass Butyl Extruder

,

47m/min Butyl Extruder Machine

,

PLC Insulating Glass Butyl Extruder

Insulating Glass Butyl Extruder Machine  For Making Double Glazing Glass Units



Insulating Glass Butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The conveyor of aluminum is controlled by frequency converter. Butyl extruder uses large electrical control panel which makes the operation more easier than before. The speed can be adjusted from 0m/min to 47m/min. Butyl extruder squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier. The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers. Finally, the butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode.

PLC Insulating Glass Butyl Extruder For Making Double Glazing Glass Units 0

Main feature of insulating glass extruder machine :



• Hydraulic system using German brands

• PLC control system, KINCO touch screen interface

• Alarm system, reminding adding butyl glue

• Exhaust function

• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable

• Short preheating time, improve work efficiency

• Coating shape frames, the roller device can be selected at will

• Fast coating speed, can up to 47m/min

• Saving glue. The amount of glue on both sides can reach 4g / m

• Stable pressure and even coating



Technical data :

Squeeze pressure 10-18MPa
Temperature 110~140℃
Glue thickness 0.3-0.5mm
Glue width 3.5mm
Aluminum spacer width 6A - 27A
Speed 5-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 650kg




Related Product-Automatic butyl extruder machine

PLC Insulating Glass Butyl Extruder For Making Double Glazing Glass Units 1

Overview of automatic butyl extruder machine



Automatic butyl extruder machine can line with the insulating glass assembly line to realize fully automatic production, and the whole coating process does not need manual work. This automatic butyl extruder machine consists of pressing wheel system (linear pressing wheel, arc pressing wheel), centering wheel, glue nozzle unit, extrusion unit, transmission unit, rotation mechanism, support mechanism, frame unit, pneumatic system, hydraulic system and control system.



Main features:

(1) There is the alarm device, it will automatically alarm when there is no glue (there will be a prompt on the touch screen);

(2) Timing heating function, workers can set the start-up time of the equipment in advance, the equipment will automatically start the system heating before the official work quickly.

(3) Automatically adjust the distance between front and back glue nozzles according to the width of aluminum spacer.

(4) The transmission motor is controlled by servo motor, and the transmission speed can reach up to 50m / min.

(5) Simple, stable and reliable operation, precise coating effect, fast coating speed and high production efficiency.

(6)Large frame support mechanism, to prevent large-scale aluminum frame from shaking by a wide margin at the corner, resulting in frame deformation.



Technical Data



Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 415v 50 hz 3 phrase
Dimension 2950×890×1004mm(L×W×H)
Weight 750kg



 PLC Insulating Glass Butyl Extruder For Making Double Glazing Glass Units 2PLC Insulating Glass Butyl Extruder For Making Double Glazing Glass Units 3PLC Insulating Glass Butyl Extruder For Making Double Glazing Glass Units 4PLC Insulating Glass Butyl Extruder For Making Double Glazing Glass Units 5PLC Insulating Glass Butyl Extruder For Making Double Glazing Glass Units 6

PLC Insulating Glass Butyl Extruder For Making Double Glazing Glass Units 7
