Product Details:
|
| Name: | Glass Washing Machine Technical Parameters CP-2500A | Maximum Glass Width: | 2500mm (effective Maximum: 2650mm) |
|---|---|---|---|
| Minimum Glass Specification: | 400mm×400mm (limited To Single Row On Left And Right Sides) | Glass Thickness: | 3mm-25mm (digital Display) |
| Speed Range: | Glass Thickness Within 3-25mm Vmax=1-12m/min | Main Drive, Brush Speed Regulation Method: | Frequency Control |
| High Light: | 12m/min Tempered Glass Washing Drying Machine,400mm×400mm Glass Washing Drying Machine |
||
Tempered Glass Washing And Drying Machine, high efficiency, energy saving 70%;
glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.
Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency；
2. The rest of the sheet metal parts are sprayed with advanced mechanicalpaint or powder；
3. The rubber roller is made of vulcanized rubber with stainless steel shaft；
4. The washing part in contact with water is made of stainless steel；
5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain；

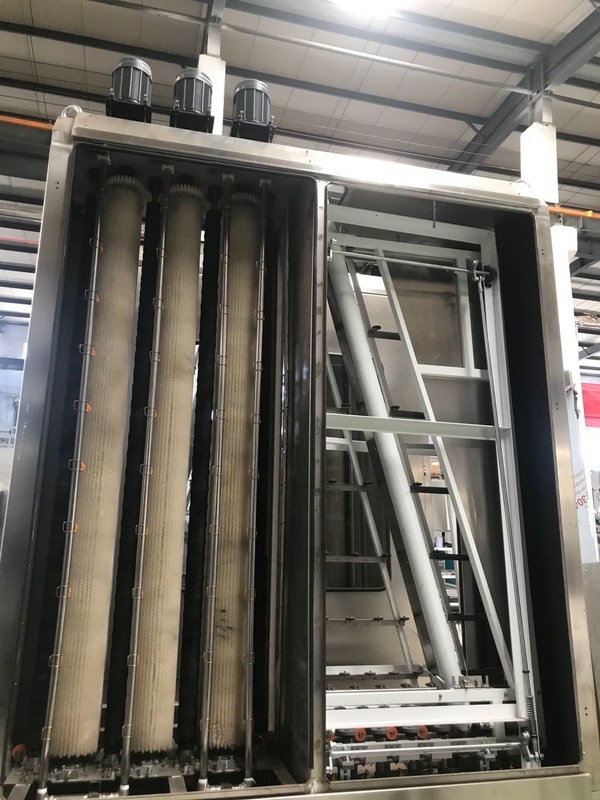

6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated
glass and sunshine coated glass can be washed without damaging the coated surface)；
7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air dryingeffect, with heating system(with temperature control device, optional opening and closing)；
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
| Main drive, brush speed regulation method | frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100 |
| Weight | 3940kg |
Jinan Lijiang Automation Equipment Co., Ltd. is in beautiful spring
City------Jinan. A company that integrates research and development of glass processing equipment,Sales and service to the whole. The transportation is very convenient because it is close to the Beijing-Shanghai high-speed train.
Convenient.
The company is committed to building high-end insulated glass machinery and equipment by learning from:Famous experts, establishment of R&D center, domestic and international cooperationWell-known companies, high-tech imports, etc. North to our friendly partner now
Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua, etc.Famous company. Since the establishment of our company, our products have been exported to Europe,America, South America, Middle East, Southeast Asia, India, about 30 countries and regions. Same Time, our company has cooperated with well-known domestic research institutes such as industry in North China Group, Shandong University, etc. will constantly improve the level of technical research. So far, Vertical automatic IG production line with filling gas online, vertical IG sealing individually produced Robot, automatic spacer bending machine, automatic desiccant filling machine, new fully automatic Butyl extruder, its technology and quality have reached the highest reading level in China.
With the rapid development of the insulating glass industry, LIJIANG looks forward to working with you to win both sides.
Create a new world in collaboration with the situation.
