Aluminum Spacer Bar 30mm Butyl Extruder Machine

Aluminum Spacer Bar 30mm Butyl Extruder Machine
Aluminum Spacer Bar 30mm Butyl Extruder Machine
Aluminum Spacer Bar 30mm Butyl Extruder Machine Aluminum Spacer Bar 30mm Butyl Extruder Machine Aluminum Spacer Bar 30mm Butyl Extruder Machine Aluminum Spacer Bar 30mm Butyl Extruder Machine

Large Image :  Aluminum Spacer Bar 30mm Butyl Extruder Machine

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJGZ2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: 6000-7000usd
Packaging Details: WOODENCASE
Delivery Time: 30-40WORKING DAYS
Payment Terms: L/C, D/A
Supply Ability: 20SET/MONTH

Aluminum Spacer Bar 30mm Butyl Extruder Machine

Description
Total Power: 380V, 5KW, 50HZ Name: Automatic Aluminum Spacer Bar Butyl Coating Extruder Machine
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

30mm Butyl Extruder Machine

,

Spacer Butyl Extruder Machine

,

30mm double glazing glass machine

Automatic Aluminum Spacer Bar Butyl Coating Extruder Machine



The butter extruder LJTB01 is used to distribute the aluminum spacer frame evenly using hot butyl. The device uses a large power control panel, making operation easier. The aluminum transmitter is controlled by a frequency converter, the speed can be adjusted from 0m / min to 47m / min, which is the fastest speed in China. It is very popular for energy saving. The crimping system adopts portable and hydraulic transmission, making the crimping pressure more stable. The easily distributed cylinder can be filled with butyl using a vertical rotary press system. It can extend the life of the crimping system and set the heating time within 24 hours with electric and air pressure. The distance of the crimping head can be adjusted automatically according to different aluminum screws. This machine achieves technology all over the world with perfect working features and stable working patterns.
Aluminum Spacer Bar 30mm Butyl Extruder Machine 0
Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
4-30mm
Speed
0-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW, 50HZ
Dimension
2600×680×1100mm(L×W×H)
Weight
650kg
Aluminum Spacer Bar 30mm Butyl Extruder Machine 1

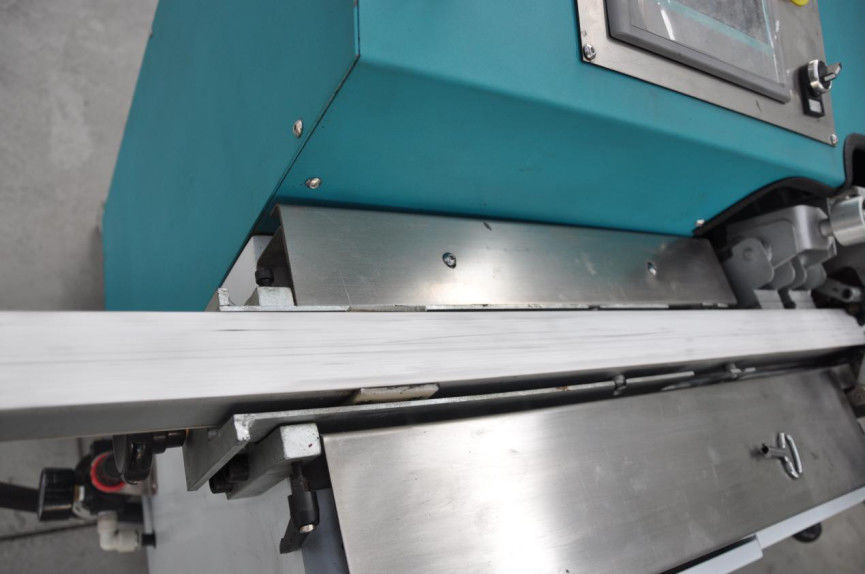

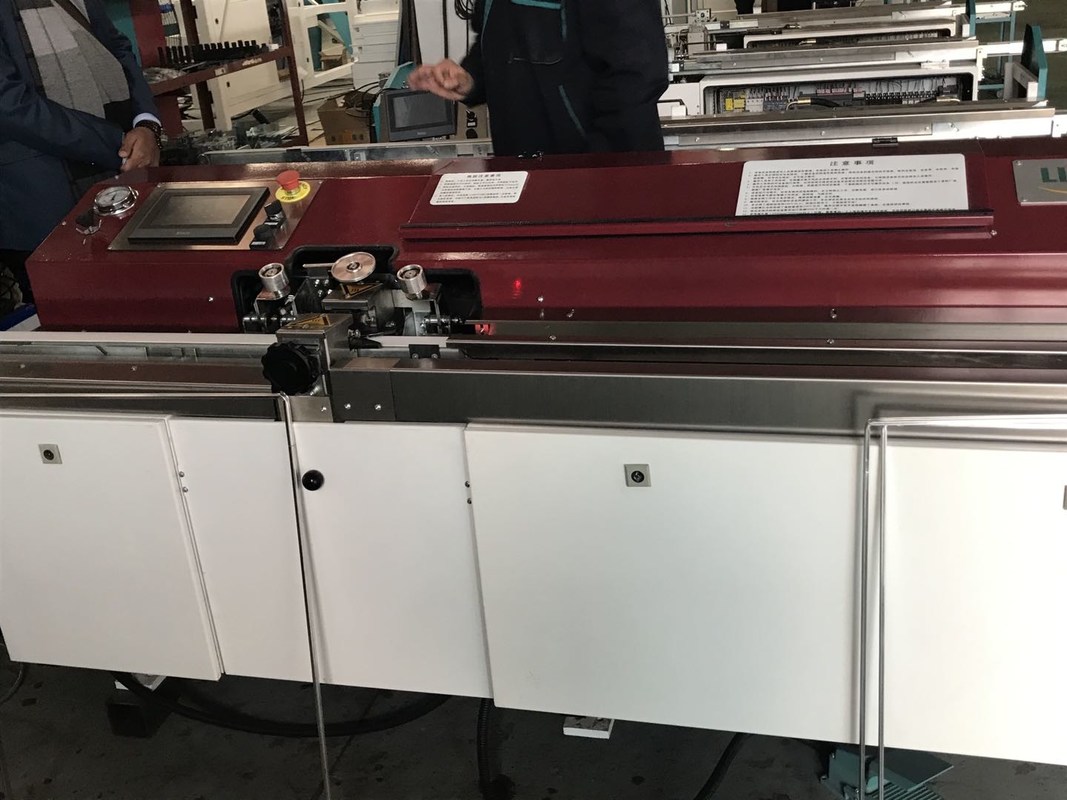

Machine Details
An automatic butyl extruder is used to evenly distribute the aluminum spacer frame (and other spacers) with hot melt butyl. Butyl extruder uses large electric control panel which can operate much easier than before. The speed can be adjusted from 0m / min to 47m / min, it is the fastest speed in China to date. Butyl extruders are very popular for energy saving. The crimping system adopts German pneumatic and hydraulic supercharging system, which makes the crimping pressure more stable. The butyl extruder has reached the technology all over the world with its full function and the features of famous spare parts.
Aluminum Spacer Bar 30mm Butyl Extruder Machine 2
Aluminum Spacer Bar 30mm Butyl Extruder Machine 3

Company information

LIJIANG GLASS is located in the beautiful spring city of Jinan. A company that integrates research, development, sales, and service of glass processing equipment. Due to its proximity to the Beijing-Shanghai high-speed train, it is very convenient for transportation.


The company is committed to building high-end insulated glass machinery equipment, learning from well-known experts, establishing R & D centers, cooperating with well-known companies at home and abroad, and importing advanced technology. Currently, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known companies. Since the establishment of the company, our products have been exported to Europe, America, South America, Middle East, Southeast Asia, India, about 30 countries and regions. At the same time, we cooperated with famous domestic research institutes such as North China Industrial Group, Shandong University, etc. to constantly improve the level of technical research. So far, we have been independently producing the vertical automatic IG production line with filling gas, vertical IG sealing robot, automatic spacer bending machine, automatic desiccant filling machine, and new fully automatic butyl extruder. It was Its technology and quality reached the highest top level in China


With the rapid development of the insulating glass industry, LIJIANG looks forward to creating a win-win situation and jointly creating a new world.

Aluminum Spacer Bar 30mm Butyl Extruder Machine 4
