Product Details:
|
| Name: | LJTB01 Butyl Extruder Machine | Temperature: | 110~140℃ |
|---|---|---|---|
| Aluminum Spacer Width: | 4-30mm | Speed: | 0-47m/min |
| Diameter Of Butyl Cylinder: | 200mm | Air Supply: | 0.4m³/min |
| High Light: | 5g/M Butyl Extruder Machine,40% Butyl Extruder Machine,5g/M hot melt butyl machine |
||

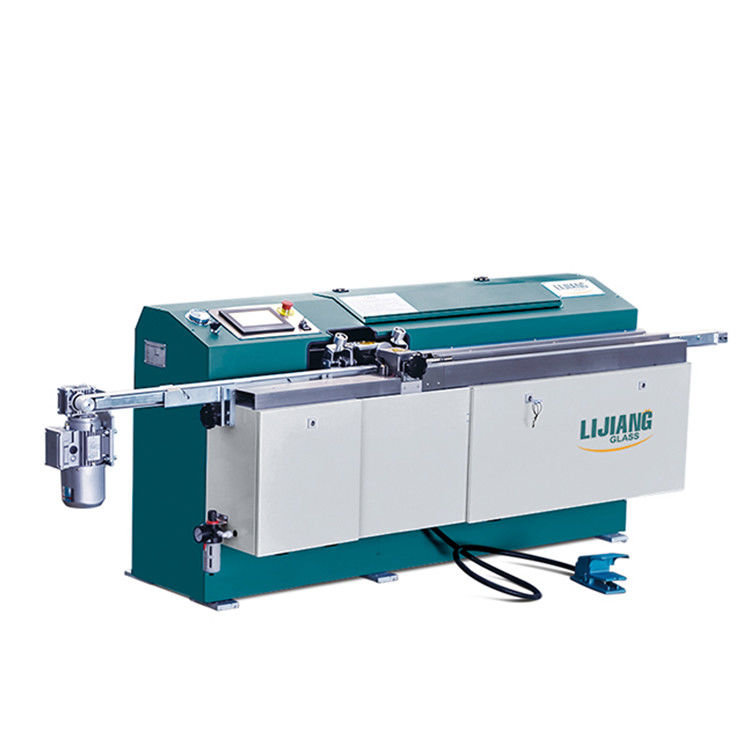

LJTB01 Butyl Extruder Machine, Can save about 40% materials, only 5g/m.
² Application
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot
melt butyl. LJTB01 butyl extruder machine use large electrical control panel which makes the operation
more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted
from 0m/min to 47m/min, which has the fastest speed in China. LJTB01 butyl extruder machine is very popular
with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes
the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes
the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with
electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different
aluminum spacer. The LJTB01 butyl extruder machine has reached the worldwide technology with the characteristic
of complete function and stable working mode.
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600*680*1100mm(L*W*H) |
| Weight | 650kg |
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |

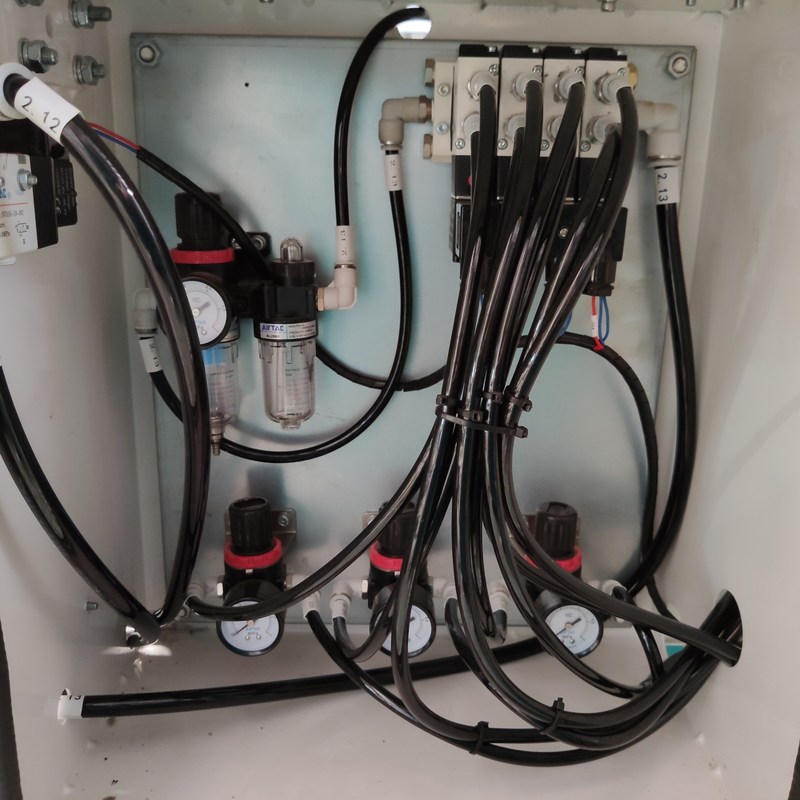

| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |

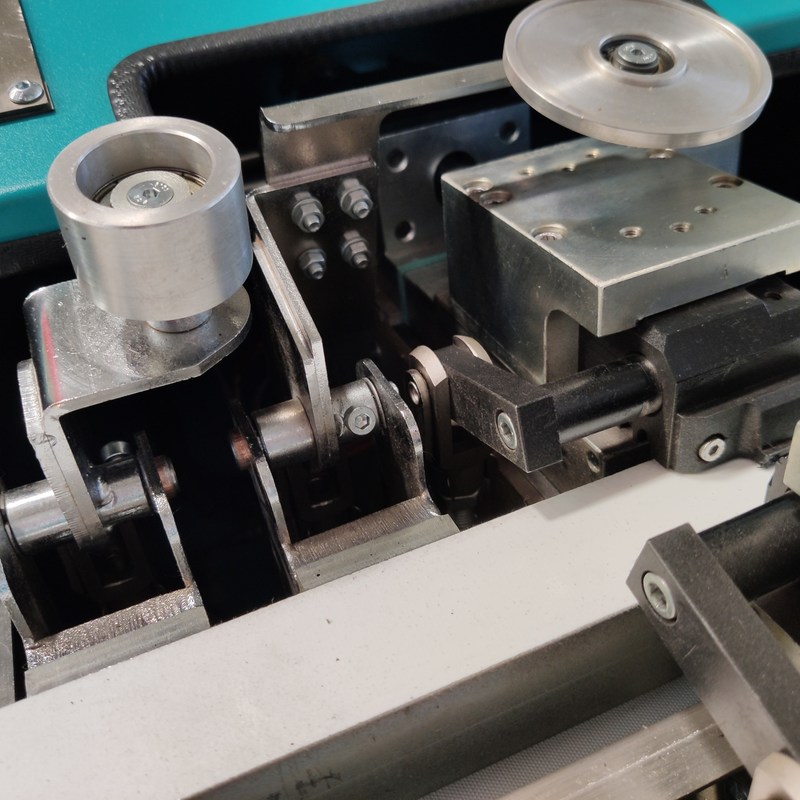

Unique Guiding Wheel
Automatically measure the width of frame, use guiding wheel to help arc frames coating.

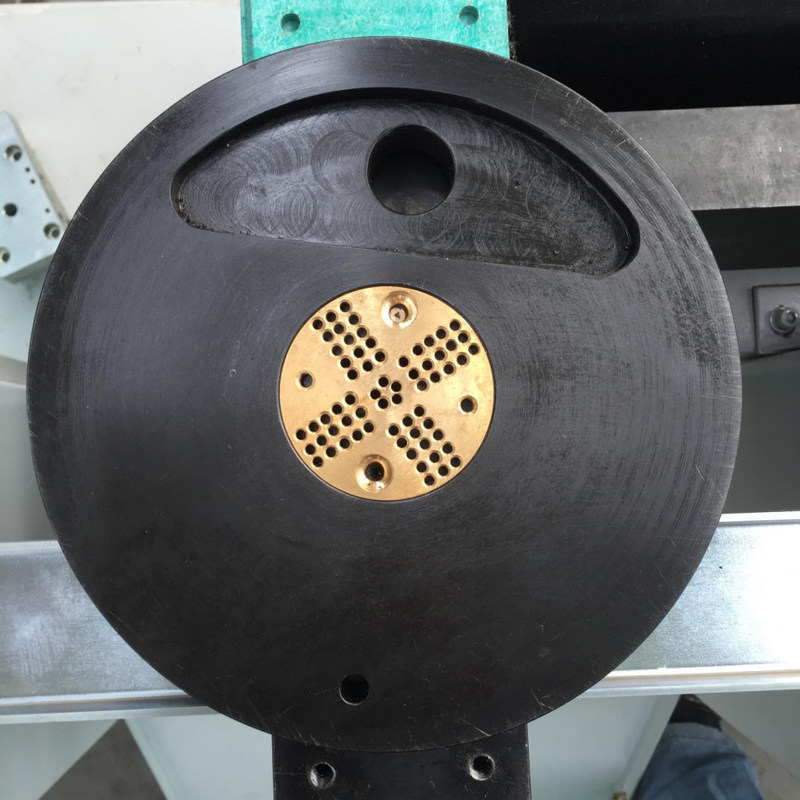

Special Structure
Automatic exhaust function, keep spreading butyl constantly and evenly without bubbles.
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and development,
sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very
convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from
famous experts, establishing the research and development centers, cooperating with domestic and foreign
well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North
Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and
other well-known enterprises. Since the establishment of the company, our products have been exported to
Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions.
At the same time, our company worked with the well-known domestic research institutes, such as the North
China Industrial Group, Shandong University and others, to constantly improve the level of technical research.

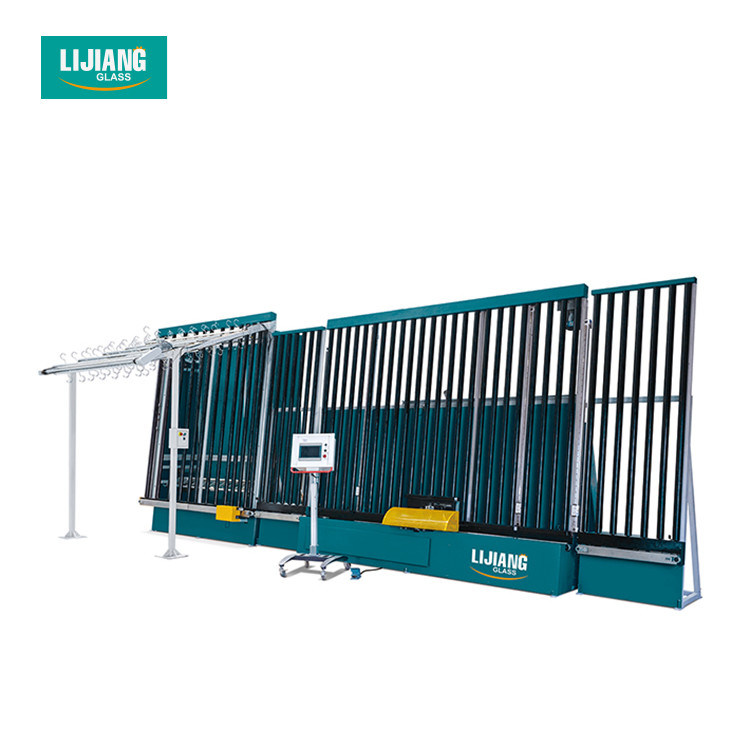

So far, we have independently produced the vertical automatic IG production line with filling gas on line,
the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine
and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading
level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win
situation and jointly creating a new world.
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding
customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
