Product Details:
|
| Name: | Automatic New Butyl Extruder Machine | Overall Dimension: | 3000mm*620mm*1102mm |
|---|---|---|---|
| Type: | Horizontal | Model: | LJTB03 |
| Color: | Customers' Request | Min Glass Size: | 170mm*400mm (2000mm Machine) |
| Max Glass Size: | 2500mm*3500mm | Brand: | LiJiang |
| Voltage Power: | 3P 380V 50HZ | Kw: | 2.5kw |
| High Light: | Entry Level hot melt butyl machine,Glazing butyl silicone sealant |
||
Affordable entry-level butyl rubber machine butyl machine,green
Adjustment and function of internal parameters

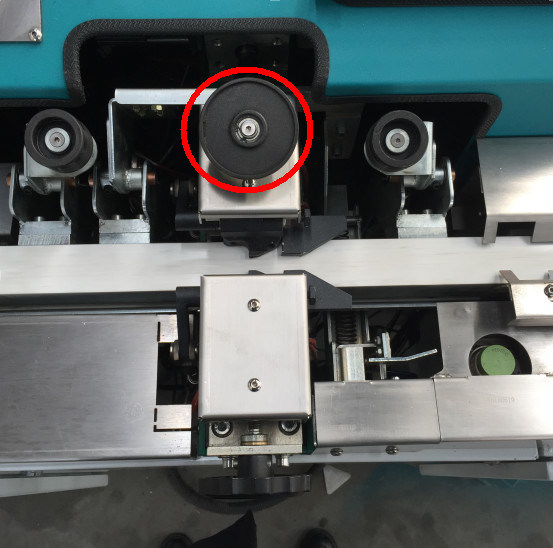

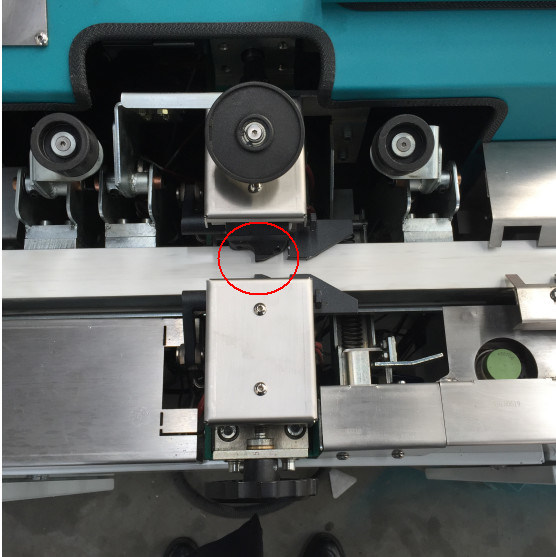

After using for a long time, the belt will become loose. Adjust the tightening adjustment screw to adjust the tightening of the belt.The pressure wheel can be adjusted through the fixed seat of the cylinder.The extension Angle can also be adjusted by the cylinder telescopic rodBelt deviation causes aluminum frame deviation, adjust the belt tightening screws, adjust the belt. After the pressing wheel falls, the direction of the pressing wheel and the belt transmission are not perpendicular, which causes the pressing wheel to run off with the aluminum strip.Check whether the travel switch is firmly installed and has output signal, and whether the movable bending plate of the aluminum strip with thick side is firmly installed and it is required that the movable bending plate is parallel to the guide guard plate. Whether the piston of the small oil cylinder can be telescopic, and can be telescopic in place, stroke 25mm. If not fully telescopic, check whether the small oil cylinder fastening screw is loose or whether the piston rod deformation stuck, check whether the throttle valve adjusting position is appropriate. Under the condition of the above three problems, the pressure regulating valve handle of the adjustment panel is removed to remove the pressure. Under the condition of heating, the system will place the aluminum strip between the rubber nozzle, rotate the adjusting hand wheel to adjust the rubber nozzle to an appropriate position, and then re-thicken the side.
if need to change the sealing ring of the glue seat here, specific operation, adjust the panel handle removing the pressure regulating valve, rubber mouth temperature under the condition of 40-50 degrees, open glue seat six fixed screw, flipped open the slider below slotted line copper pad, notice need not hurt bad copper pad, dismantle the broken seal, the glue, the seat of the glue is clean install new seal, pressure on the copper pad, can be installed on glue
Troubleshooting and maintenance of equipment
1.Butyl rubber cylinder cannot advance in place
2.When the piston of the oil cylinder is fully retracted, oil comes out of the hydraulic station
3.Air spring cannot be positioned (light displacement after the back of butyl rubber cylinder)
4.The air spring does not extend itself
5.The glue is not even, broken flow, aluminum frame can not glue
6.In the automatic state, the pressure wheel does not press, the rubber mouth does not glue
7.The photoelectric signal is unstable, which leads to the break of the glue
8.The aluminum frame is out of alignment during gluing
9.Thickness measurement is inaccurate
10.The rubber mouth appears to be porous butyl gum
11.Glue base or leakage of glue
12.The booster pump frequently fails to work under pressure
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
