Product Details:
|
| Name: | Automatic New Butyl Extruder Machine | Overall Dimension: | 2800mm*700mm*900mm |
|---|---|---|---|
| Type: | Horizontal | Model: | LJTB01 |
| Color: | Customers' Request | Min Glass Size: | 170mm*400mm (2000mm Machine) |
| Max Glass Size: | 2500mm*3500mm | Brand: | LiJiang |
| Voltage Power: | 3P 380V 50HZ | Kw: | 5.7kw |
| High Light: | 0.4 MPa hot melt butyl extruder,Liquid double glass machine |
||

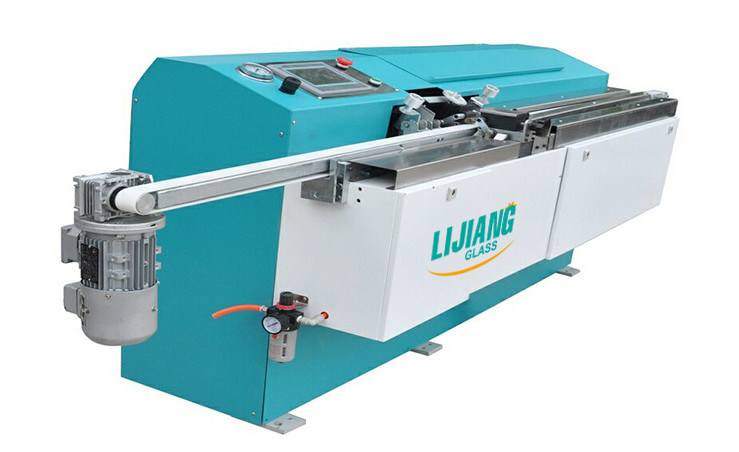

High cost performance outstanding liquid outstanding performance Butyl rubber machine
Adjustment and function of internal parameters

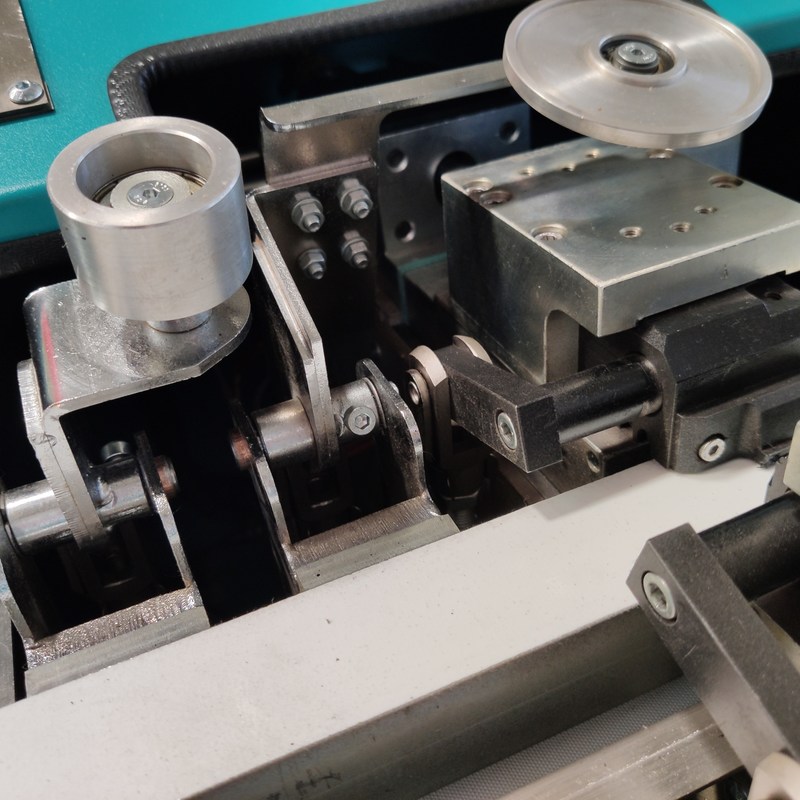

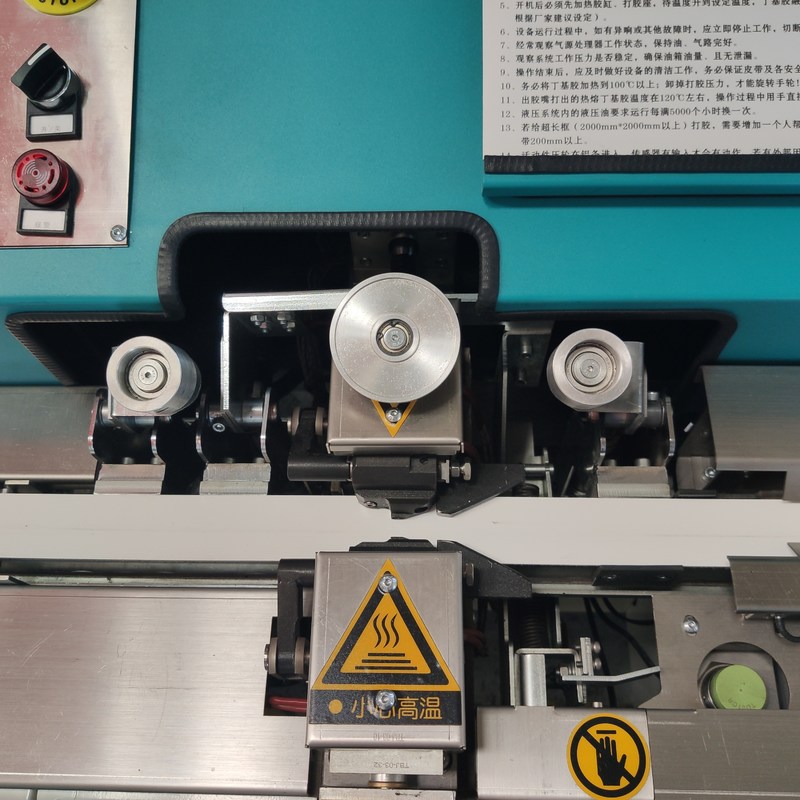

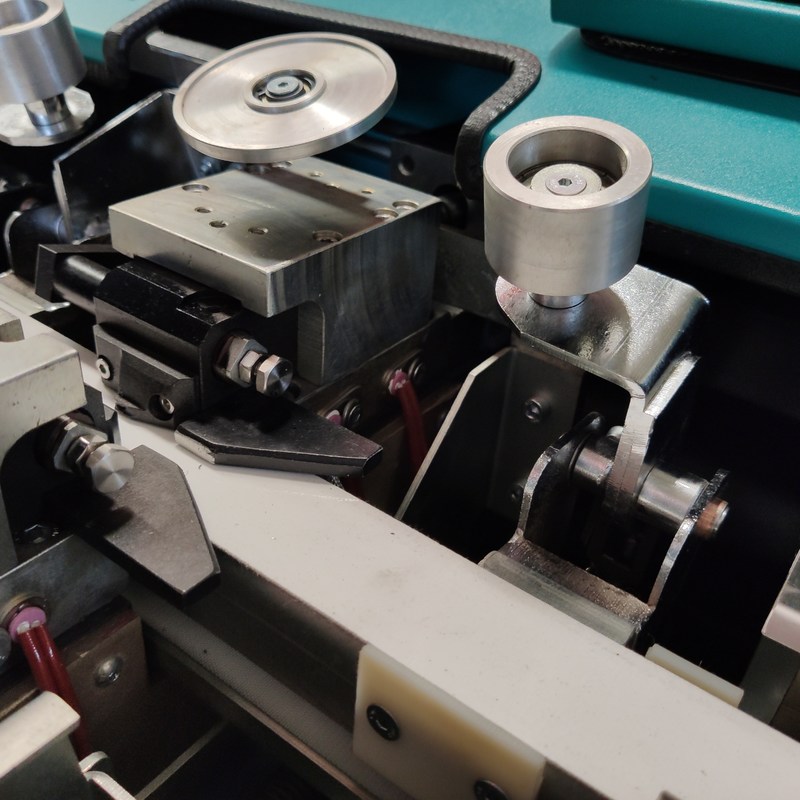

Front wheel pressing down: refers to the time when the front part of the aluminum frame is pressed down after the induction signal delay after the butyl photoelectric switch.
Front wheel lift: refers to the lifting of the front pressure wheel after the rear end of the aluminum frame leaves the gluing photoelectric switch without the time of induction signal delay set by this parameter.Gluing start: refers to when the front section of the aluminum frame after gluing photoelectric switch, with the induction signal delay this parameter set time, the gluing switch opened to start gluing.The end of gluing: refers to when the front section of the aluminum frame left the gluing photoelectric switch, there is no induction signal delay this parameter set time, the gluing switch off to stop gluing.After the pressure wheel down: refers to when the aluminum frame front section after the butyl photoelectric switch, with the induction signal delay this parameter set time, after the pressure wheel down.Rear pressure wheel lifting: refers to the rear pressure wheel lifting when the rear end of the aluminum frame leaves the gluing photoelectric switch and there is no time for the induction signal delay parameter setting.Arc delay butyl: when arc butyl, delay butyl time after stepping on the foot.Special-shaped medium pressure wheel delay time: when special-shaped gluing, after stepping on the foot, the delay time of the middle pressure wheel fall.Special-shaped delay butyl: when special-shaped butyl, release the foot after the butyl mouth delay butyl time.
Adjustment of butyl pressure

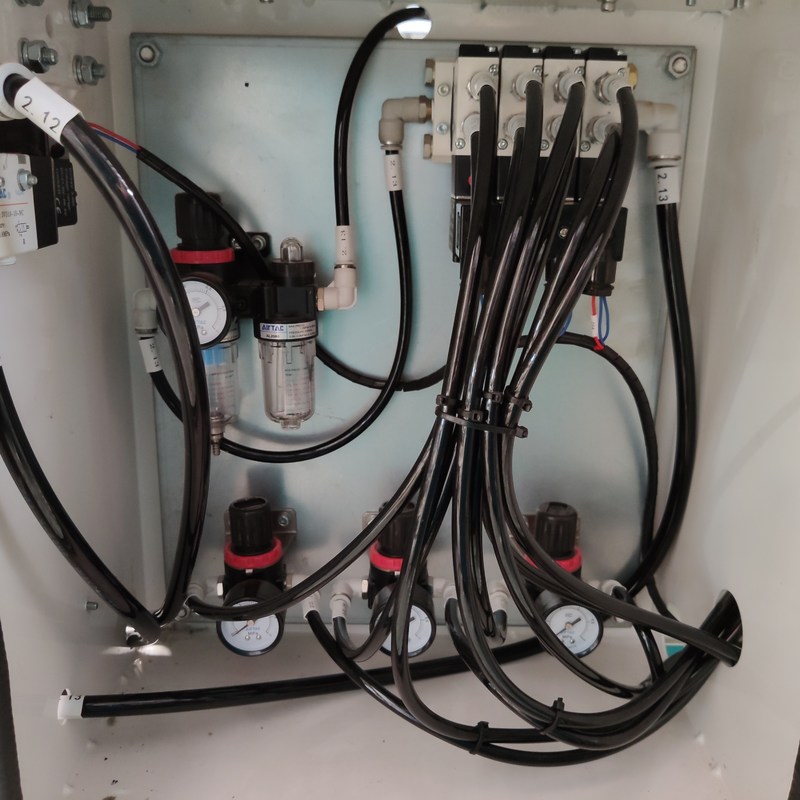

Adjusting the pressure of the air source can adjust the pressure of the hydraulic main system. Generally in 0.4 0.4 MPa

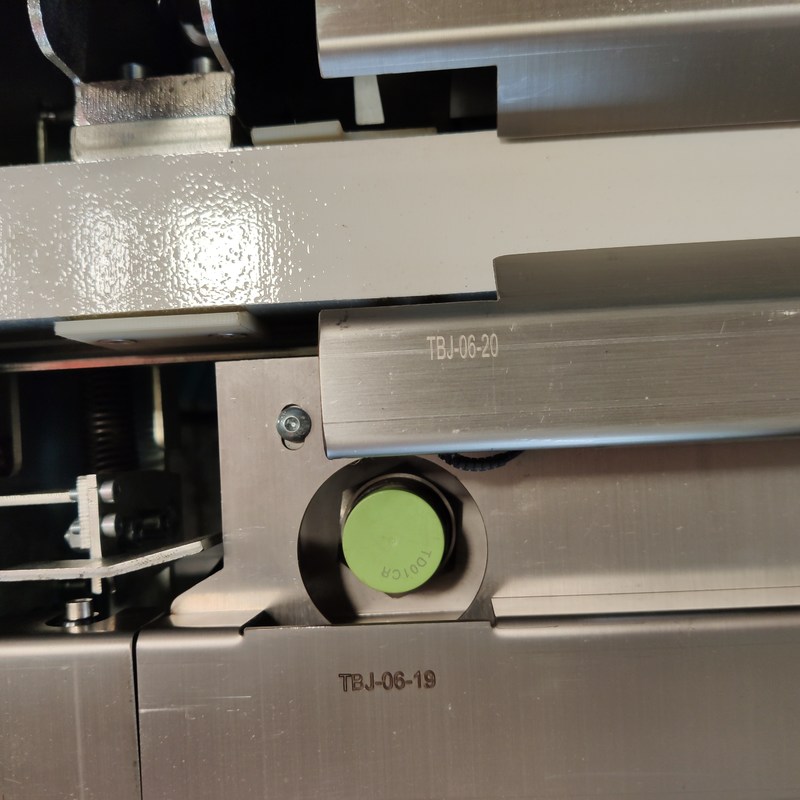

Adjust the pressure reducing valve handle to adjust the size of the gluing pressure.Aluminum bar, will need to work on the rubber mouth on the right side of the rubber mouth ranging micro switch, the following article metal detector to detect aluminum, rubber mouth automatically move, back after 1 to 2 seconds to aluminum bar in front of micro switch, rubber mouth will automatically move forward, after the baffle to promote aluminum strip run into micro switch, with the signal and stop automatically, automatic adjust the rubber mouth width is complete.

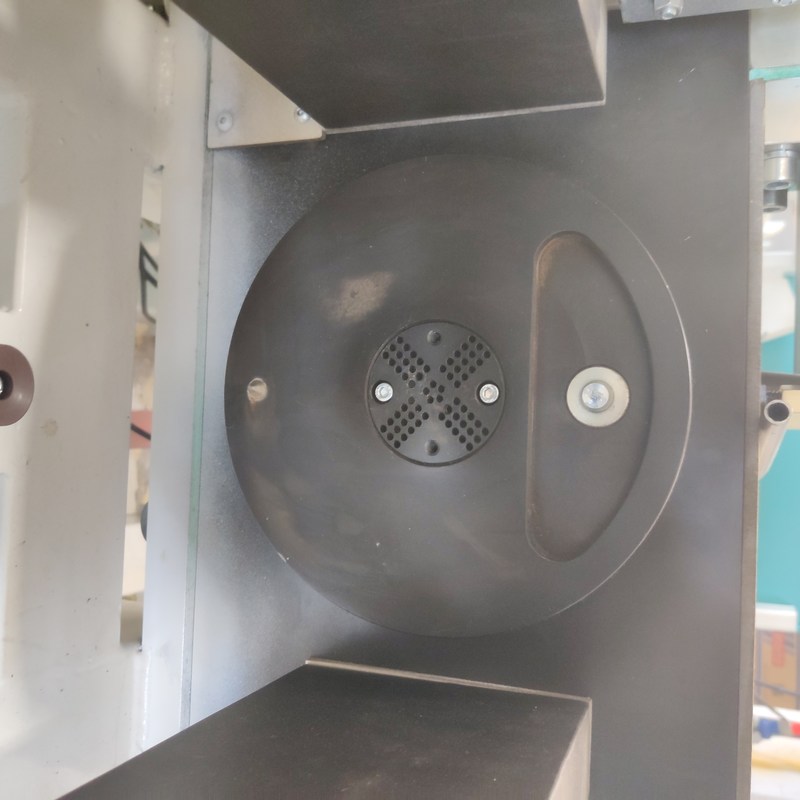

Click the switch button and pull the handle of the rubber cylinder by hand after the piston exits. Put the butyl block into the butyl cylinder, clean up the butyl cylinder base and brush some lubricating oil, then press the butyl cylinder and click the butyl cylinder into button.The photoelectric switch is a pair of photoelectric switch, the aluminum bar through the two probes directly block the signal between the transmission, butyl glue began to work, the installation of the two probes should be aligned, not too much deviation.
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
