Product Details:
|
| Production Name: | Automatic Butyl Extruder Machine | Model: | LJTB01 |
|---|---|---|---|
| Spacer Width: | 6a - 27a | Coating Speed: | 47m/min |
| Glue Weight: | 7KG | Machine Color: | Blue / Option |
| Warranty: | 1 Year | ||
| High Light: | 47m/Min insulating glass machine,Insulating double glass machine |
||
Automatic Butyl Extruder Machine For Making Insulating Glass Production

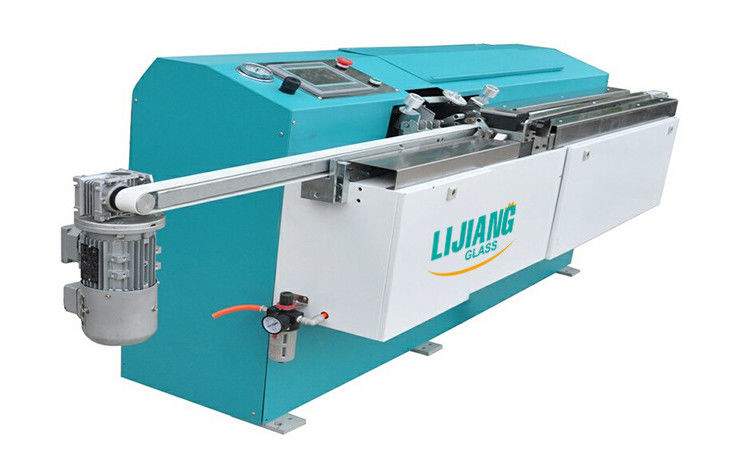

Butyl Extruder Machine LJTB 01
Main feature
• PLC control system, KINCO touch screen interface
• Hydraulic system using German brands
• Alarm system, reminding adding butyl glue
• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
• Exhaust function
• Short preheating time, improve work efficiency
• Coating shape frames, the roller device can be selected at will
• Fast coating speed, can up to 47m/min
• Stable pressure and even coating
• Saving glue. The amount of glue on both sides can reach 4g / m
• Big glue barrel, 200L. (Optional)
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Electrical parameters
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
New automatic butyl extruder machine
Introduction :
Fully automatic butyl extruder machine can line with the insulating glass assembly line to realize fully automatic production, and the whole coating process does not need manual work. This automatic butyl extruder machine consists of pressing wheel system (linear pressing wheel, arc pressing wheel), centering wheel, glue nozzle unit, extrusion unit, transmission unit, rotation mechanism, support mechanism, frame unit, pneumatic system, hydraulic system and control system.
(1) There is the alarm device, it will automatically alarm when there is no glue (there will be a prompt on the touch screen);
(2) Timing heating function, workers can set the start-up time of the equipment in advance, the equipment will automatically start the system heating before the official work quickly.
(3) Automatically adjust the distance between front and back glue nozzles according to the width of aluminum spacer.
(4) The transmission motor is controlled by servo motor, and the transmission speed can reach up to 50m / min.
(5) Large frame support mechanism, to prevent large-scale aluminum frame from shaking by a wide margin at the corner, resulting in frame deformation.
(6) Simple, stable and reliable operation, precise coating effect, fast coating speed and high production efficiency.
Parameters:
| Voltage | 3P 380+N+PE |
| Power | 8.5kw |
| Coating speed | 0~50m/min |
| Minimum spacer size | 400*400mm |
| Maximum spacer size | 2400*2200mm |
| Spacer width | 6~24mm |
| Heating temperature | 100~140°C |
| Gas pressure | 0.6 MPa |
| Extrusion pressure | 17MPa |
| System pressure | 30MPa |
| Dimension (L*W*H) | 8550×1500×3500mm |
| Weight | 3000Kg |

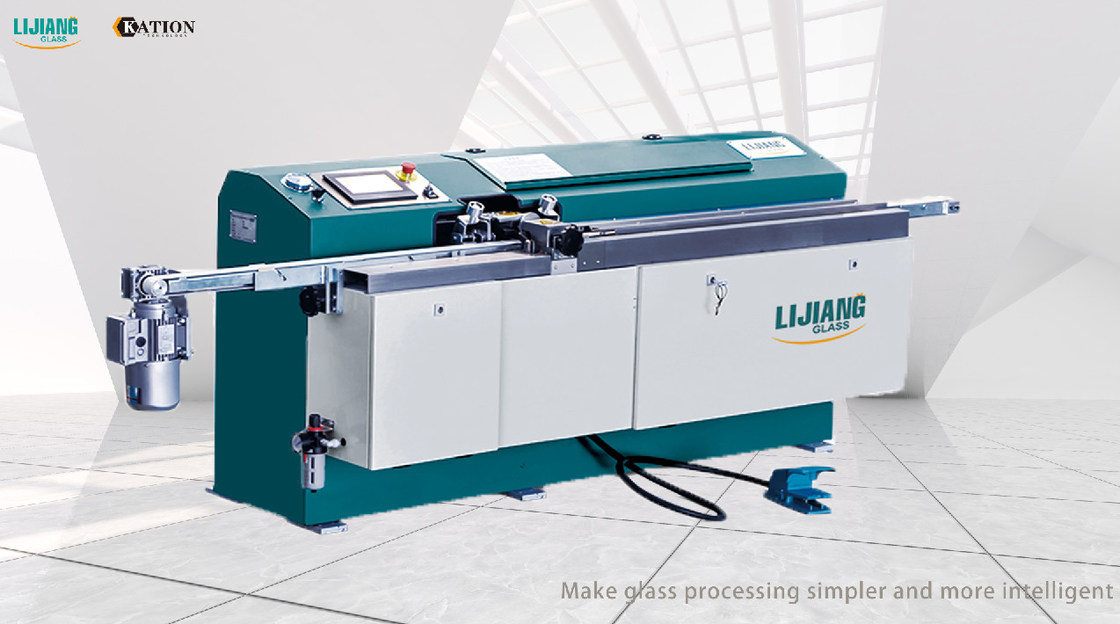

Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A-27A |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
