Product Details:
|
| Name: | LJTB01 Butyl Extruder Machine | Weight: | 650kg |
|---|---|---|---|
| Dimension: | 2600*680*1100mm(L*W*H） | Total Power : | 380V, 5KW, 50HZ |
| Air Pressure: | ≥0.6MPa | Diameter Of Butyl Cylinder: | 200mm |
| High Light: | 200mm hot melt butyl extruder,Preheat butyl machine |
||

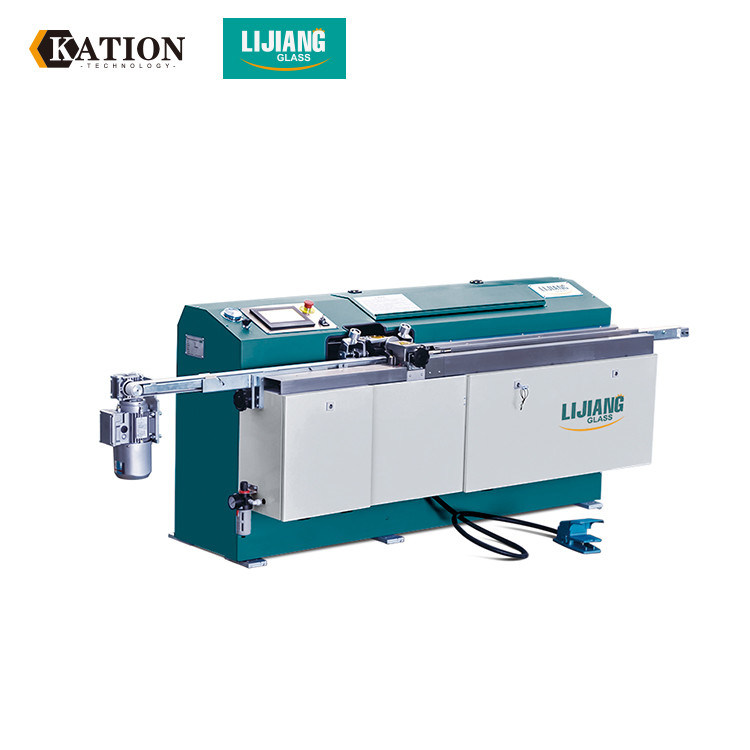

LJTB01 Butyl Extruder Machine, can quickly preheat, improve work efficiency
² Application
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly
with hot melt butyl. LJTB01 butyl extruder machine use large electrical control panel which makes
the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the
speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. LJTB01
butyl extruder machine is very popular with energy-saving. Its squeezing system adopts pneumatic
and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing
cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life
of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance
of squeezing head can be adjusted automatically according to different aluminum spacer. The LJTB01
butyl extruder machine has reached the worldwide technology with the characteristic of complete function
and stable working mode.
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600*680*1100mm(L*W*H) |
| Weight | 650kg |
Germany Siemens spares
Adopt Siemens brand, extending working life, stable performance.
Upright Glue Cylinder
Adopt the special structure, easy to change butyl.
Unique Guiding Wheel
Automatically measure the width of frame, use guiding wheel to help
arc frames coating.
² Other features
1. Filter out debris automatically through auto exhaust, keep spreading
quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.
5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing material
automatically.
JINAN KATION TRADING CO.,LTD.
Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating
glass machinery and related auxiliary equipment for the glass deep processing industry
and the door and window construction industry. Has the professional processing basis
of insulating glass machinery, aluminum-plastic windows & doors machinery and the
related auxiliary materials, etc. In this way, we provide the most comprehensive glass
processing solution and windows & doors solution for domestic and foreign customers
well
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding
customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support,
Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
