Product Details:
|
Product Name: | Butyl Extruder Machine | Type: | LJTB01 |
---|---|---|---|
Squeeze Pressure: | 10-18MPa | Temperature: | 110~140℃ |
Glue Thickness: | 0.3-0.5mm | Glue Width: | 3.5mm |
High Light: | 0.5mm butyl extruder machine,Glue hot melt dispenser machine |

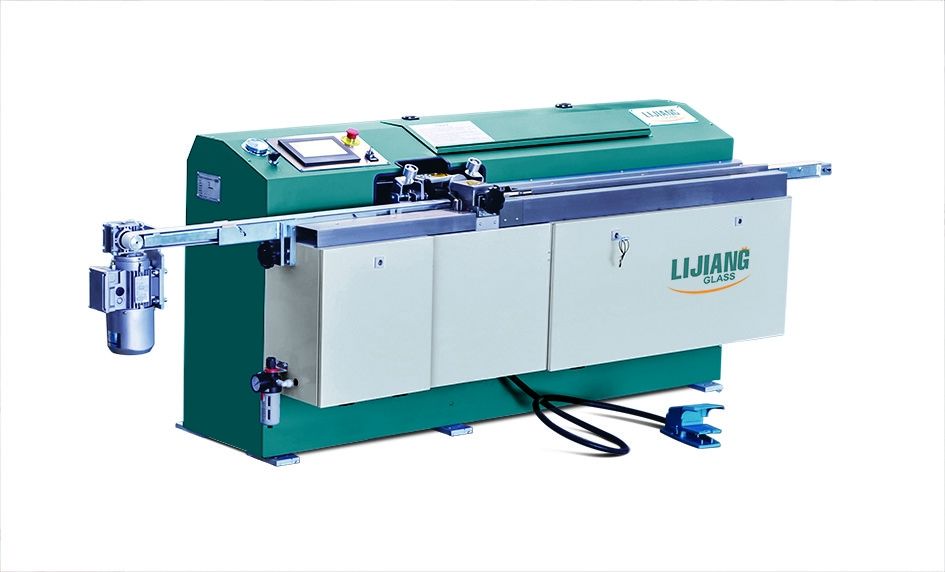

Butyl Extruder Machine LJTB01 of Automatically adjust the amount of glue according to different speeds
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames
evenly with hot melt butyl.

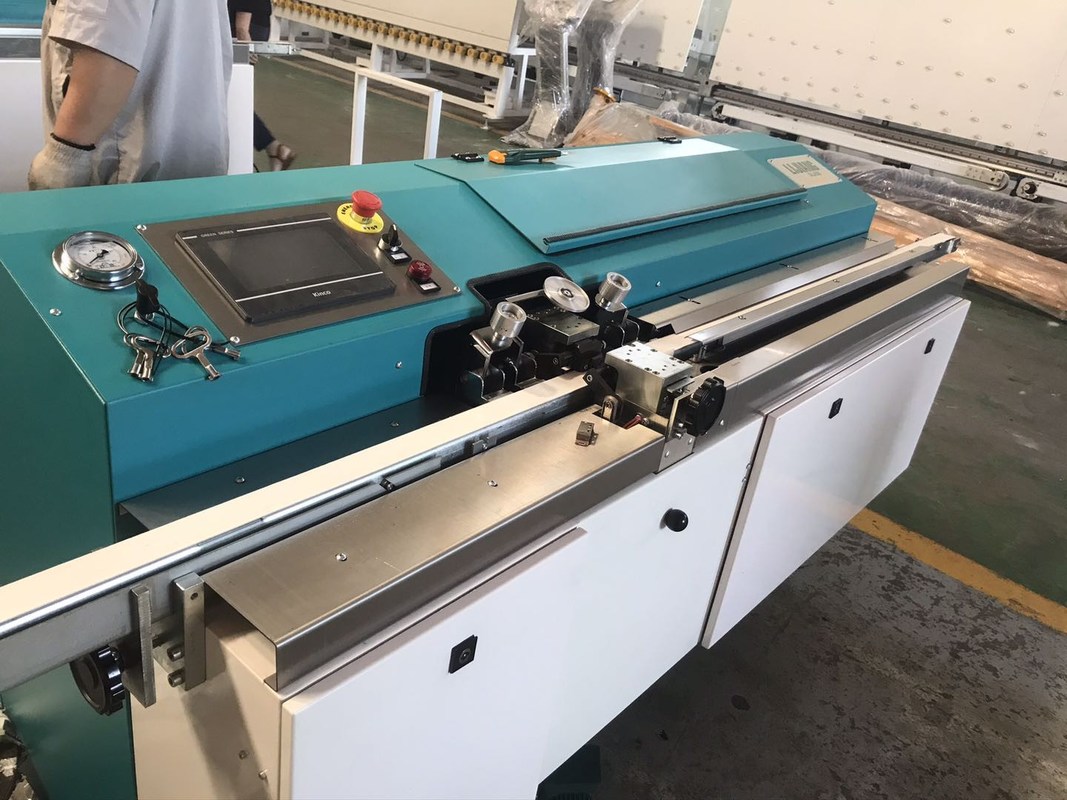

This equipment use large electrical control panel which makes the operation more easier.
The conveyor of aluminum is controlled by frequency converter, and the speed can be
adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular
with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging
system, which makes the squeezing pressure more stable. The dispensing cylinder uses
vertical rotary support system and it makes the refill of butyl easier. It can prolong the life
of squeezing system and set the heating time in 24 hours with electricity and air pressure.
The distance of squeezing head can be adjusted automatically according to different
aluminum spacer. The machine has reached the worldwide technology with the characteristic
of complete function and stable working mode.

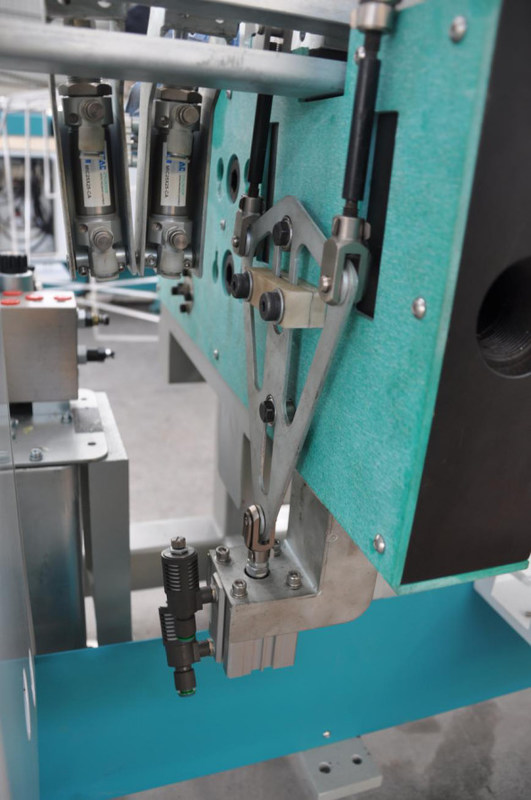

Squeezing unit is consisted of the rubber cylinder,piston,hydraulic cylinder,air spring,
heating plate and fixed arms. It can glue butyl by heating butyl to set temperature and adjust
the pressure reducing valve to make the squeezing pressure up to the set. The temperature
of the rubber cylinder is controlled by PLC, and keeps in a small constant range. Inner diameter
of butyl cylinder is 200mm, maximum can load butyl of Φ195 * 250mm (7kg). Please change
the butyl until butyl of cylinder has already used out, or please consider the rest quantity of
butyl in cylinder to add new butyl, if the total height of butyl is more than 250mm, please
don’t put new butyl block, or maybe can’t seal on the top of cylinder or appear leak of butyl.
When temperature is more than 100 degree, please wear protective groove to change butyl
for avoid scalding.
Beijing Expo
The device was showed in Beijing expo of May, 2017. It attracted many people’s eyes
Automatic filter function
Automatically filter debris, keep spreading evently.
Guiding Wheel
Using guiding wheel to help arc frames coating.
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Aluminum spacer width | 4-30mm |
Speed | 0-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 415v 50 hz 3 phrase |
Dimension | 2950×890×1004mm(L×W×H) |
Weight |
750kg |
Name | Brand | Original |
PLC | KINCO | China |
Valve | HAWE | German |
Low voltage electrical apparatus | SIEMENS | German |
Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
Frequency converter | KINCO | China |
Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
Travel light | OMRON | Japan |
Optical fiber | OMRON |
Japan |
