Product Details:
|
| Product Name: | Butyl Extruder Machine For Insulating Glass Machine LJTB 01 | Squeeze Pressure: | 10-18MPa |
|---|---|---|---|
| Temperature: | 110~140℃ | Glue Thickness: | 0.3-0.5mm |
| Glue Width: | 3.5mm | Aluminum Spacer Width: | 6A - 27A |
| High Light: | Glass hot melt butyl extruder,18MPa hot melt butyl machine |
||

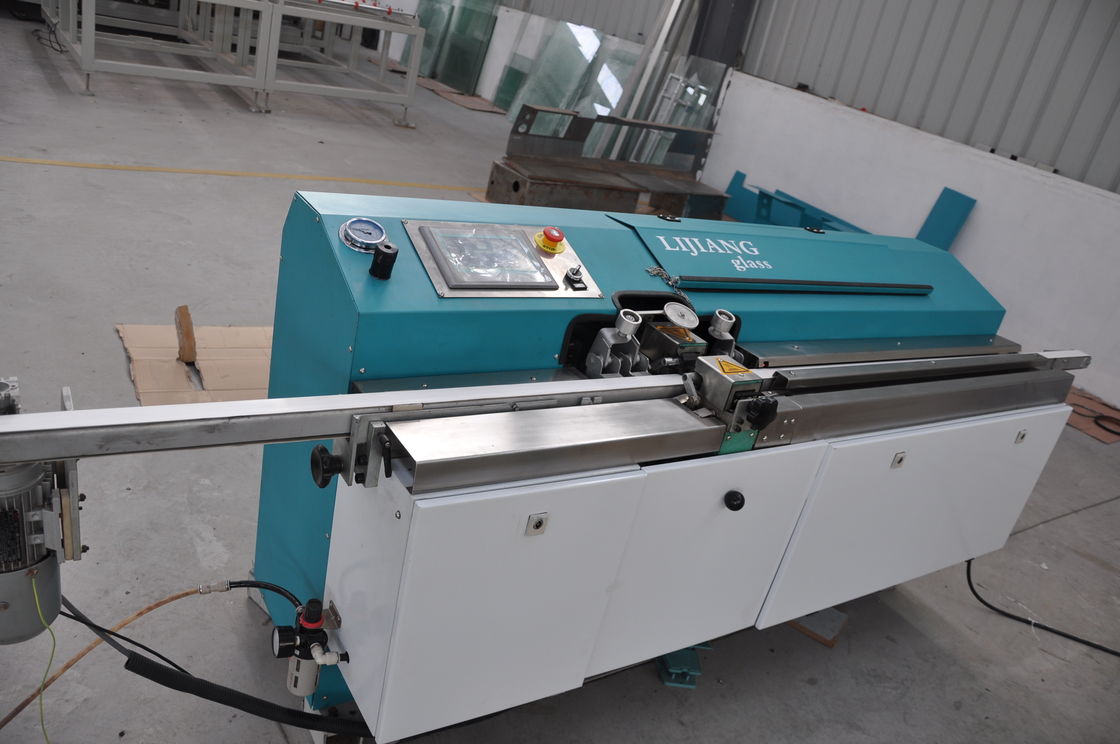

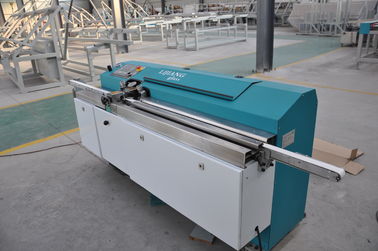

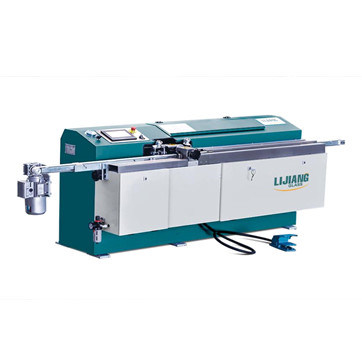

High quality Butyl rubber coating machine for insulating glass
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames
evenly with hot melt butyl. This equipment use large electrical control panel which makes
the operation more easier. The conveyor of aluminum is controlled by frequency converter,
and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in
China. It is very popular with energy-saving. Its squeezing system adopts pneumatic and
hydraulic supercharging system, which makes the squeezing pressure more stable. The
dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier.
It can prolong the life of squeezing system and set the heating time in 24 hours with
electricity and air pressure. The distance of squeezing head can be adjusted automatically
according to different aluminum spacer. The machine has reached the worldwide technology
with the characteristic of complete function and stable working mode.
The equipment is controlled by program PLC, can automatic and exactly finish gluing function,
operators only need to support the aluminum frames, others( clamping roller, transfer and etc)
are automatic finished by setting program. This equipment is suitable for square, rectangular,
shaped, arc and kinds of aluminum frames. Inner diameter of butyl cylinder is 200mm, maximum
can load butyl of Φ195 * 250mm (7kg).
TEFLON glue nozzles
Adopt Teflon glue nozzles, keep spreading quickly.
Sensor
Automatically measure the width of frame, the distance of nozzle can be adjustable.
Guiding Wheel
Using guiding wheel to help arc frames coating.
Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure
of outlet oil strongly.
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 415v 50 hz 3 phrase |
| Dimension | 2950×890×1004mm(L×W×H) |
| Weight | 750kg |
Main components
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
