Product Details:
|
Product Name: | Butyl Extruder Machine LJTB 01 | Squeeze Pressure: | 10-18MPa |
---|---|---|---|
Temperature: | 110~140℃ | Glue Thickness: | 0.3-0.5mm |
Glue Width: | 3.5mm | Aluminum Spacer Width: | 6A - 27A |
High Light: | Sealant extrusion coating machine,Aluminum hot melt butyl machine |
Butyl Silicone Sealant Extruder Machine for insulating machine
New butyl extruder machine is a necessary equipment for manufacturing aluminum-frame type
insulated glass, even it is necessary for Vertical insulating glass flat press production line.The
butyl that be glued on the both side of aluminum frame by New butyl extruder machine, is the
first sealant for insulating glass. So the quality of the butyl directly decides the quality of
insulating glass and using life.

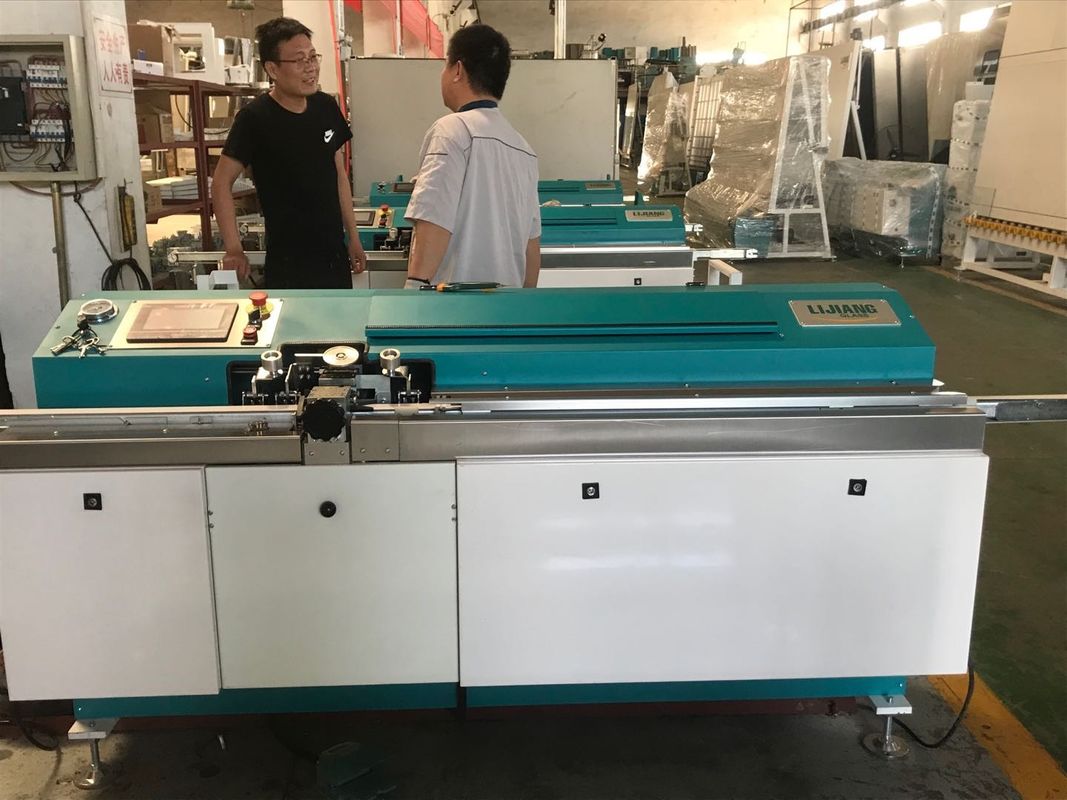

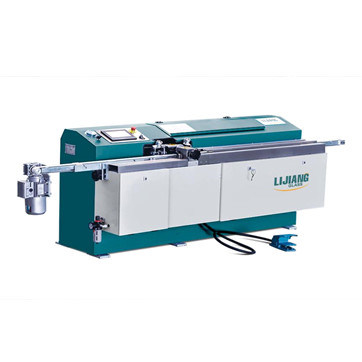

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames
evenly with hot melt butyl. This equipment use large electrical control panel which makes the
operation more easier. The conveyor of aluminum is controlled by frequency converter, and
the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China.
It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic
supercharging system, which makes the squeezing pressure more stable. The dispensing
cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can
prolong the life of squeezing system and set the heating time in 24 hours with electricity and
air pressure. The distance of squeezing head can be adjusted automatically according to
different aluminum spacer. The machine has reached the worldwide technology with the
characteristic of complete function and stable working mode.

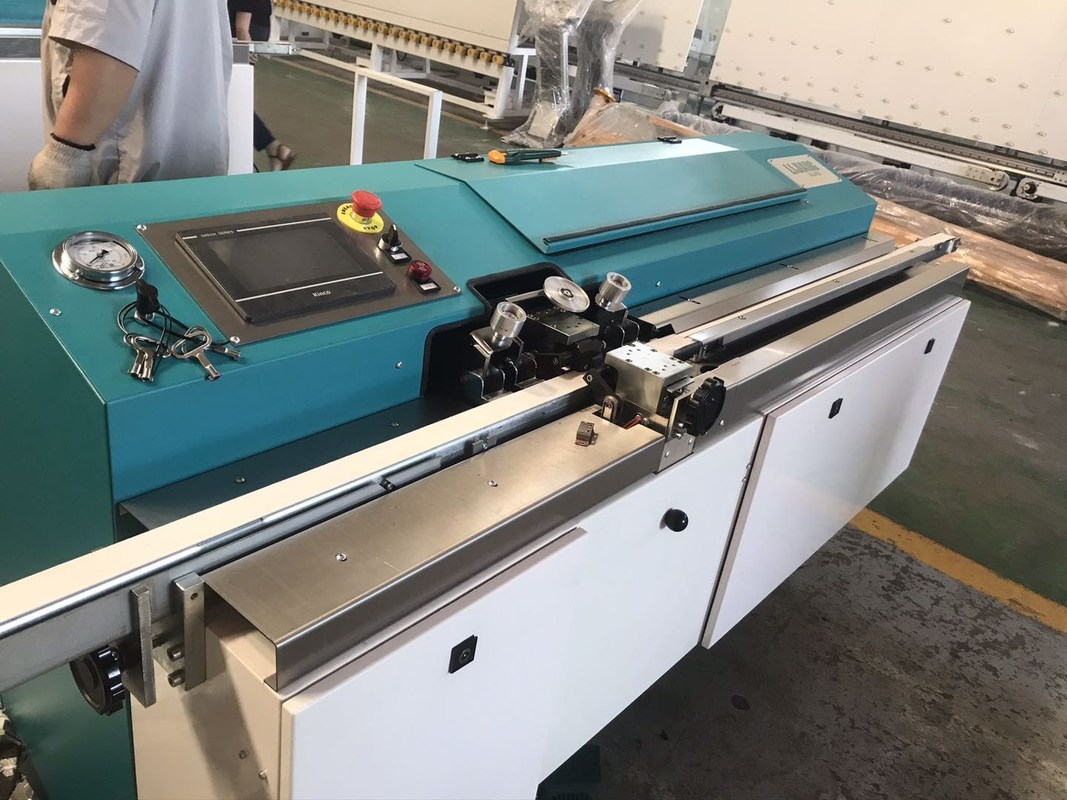

TEFLON glue nozzles
Adopt Teflon glue nozzles, keep spreading quickly.
Germany Siemens parts
Adopt Siemens brand, stable performance.
Special structure
The special part controls both sides of nozzle opening and closing at the same time.
Glue cylinder
Adopt the upright structure, easy to change butyl.
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Aluminum spacer width | 4-30mm |
Speed | 0-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 415v 50 hz 3 phrase |
Dimension | 2950×890×1004mm(L×W×H) |
Weight | 750kg |
Main components
Name | Brand | Original |
PLC | KINCO | China |
Valve | HAWE | German |
Low voltage electrical apparatus | SIEMENS | German |
Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
Frequency converter | KINCO | China |
Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
Travel light | OMRON | Japan |
Optical fiber | OMRON | Japan |
