Product Details:
|
| Name: | LJTB03 Butyl Extruder Machine | Squeeze Pressure: | 10-18MPa |
|---|---|---|---|
| Aluminum Spacer Width: | 4-30mm | Speed: | 0-47m/min |
| Dimension: | 2600*680*1100mm | ||
| High Light: | Touch Screen insulating glass machine,PLC hot melt butyl machine |
||

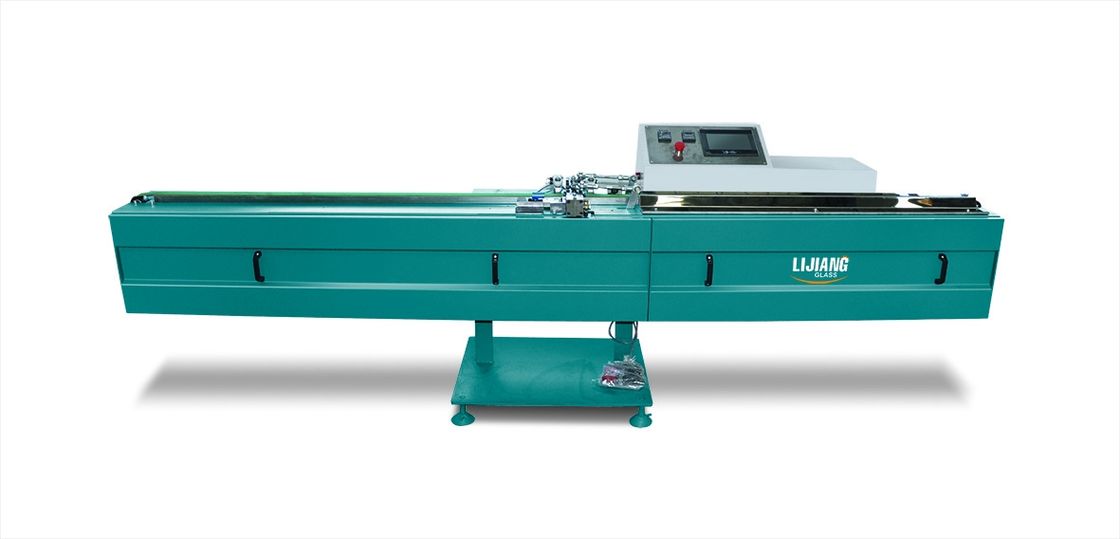

LJTB01 Butyl Extruder Machine is a PLC control system, touch screen interface, pre-heating function
LJTB03 butyl extruder machine is very popular with energy-saving. Its squeezing system adopts
pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable.
The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier.
It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and
air pressure. The distance of squeezing head can be adjusted automatically according to different
aluminum spacer. The LJTB01 butyl extruder machine has reached the worldwide technology with
the characteristic of complete function and stable working mode.
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A-27A |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
JINAN KATION TRADING CO.,LTD.
Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating
glass machinery and related auxiliary equipment for the glass deep processing industry
and the door and window construction industry. Has the professional processing basis
of insulating glass machinery, aluminum-plastic windows & doors machinery and the
related auxiliary materials, etc. In this way, we provide the most comprehensive glass
processing solution and windows & doors solution for domestic and foreign customers
well.
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding
customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical s
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support,
Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
