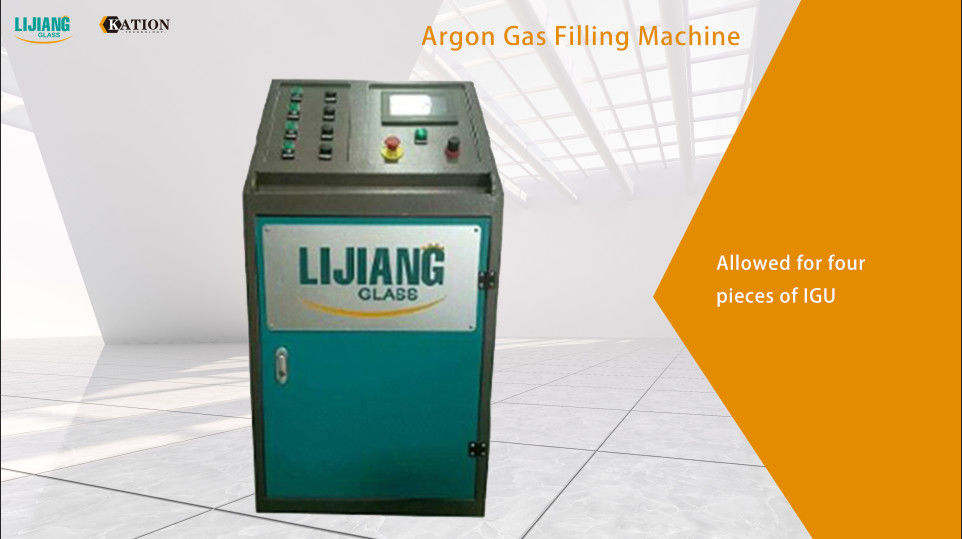

Double Glazing Glass argon filler used for fill the hollow glass with argon

Double Glazing Glass argon inflator is used to fill the hollow glass with argon.The operation is simple. It is essential to further improve the performance of the hollow glass equipment.

Advantage of Insulating Glass gas filling machine

1.The filling process can display on the touch screen.The whole filling process and argon gas content can be displayed on the screen, and the argon gas content can be observed in real time.The customer can set the argon content in the IGUs according to his own needs.

2.Argon Gas Filling Machine have Pressure alarm device:when the gas filling is up to adjusted value,it will alarm and stop automatically.

3.Four pieces insulating glass can be gas filled at the same time within 20s (1m*1m glass).

Technical date of Argon gas filling machine

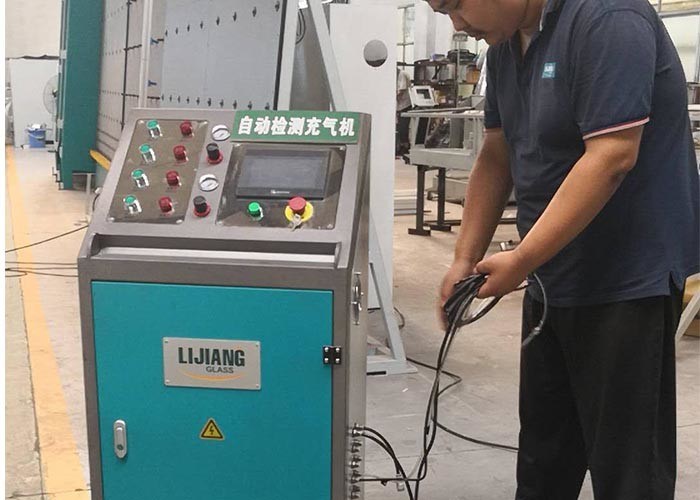

Detail pictures of semi automatic gas filling machine
