Product Details:
|
| Name: | Insulating Glass Butyl Coating Machine | Brand: | Siemens |
|---|---|---|---|
| Application: | Making Double Glazing | Fuction: | Butylcoating |
| Squeeze Pressure: | 10-18MPa | Temperature: | 110-140℃ |
| Speed: | 5-47m/s | Aluminum Spacer Width: | 6A-27A |
| Power: | 380V,5.7kw,50HZ | Diameter Of Butyl Cylinder: | 200mm |
| Dimension: | 2800*700*900mm | ||
| High Light: | Spacer hot melt butyl extruder,Insulating double glass machine |
||

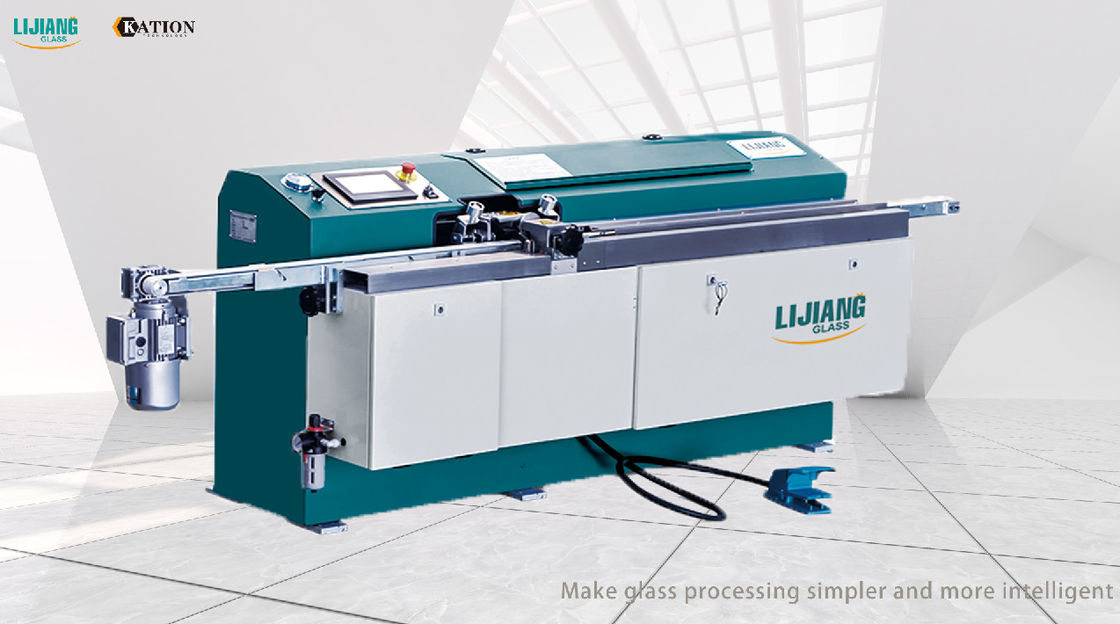

LJTB 01 Butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl.
Advantage of automatic butyl rubber machine LJTB01
1.PLC control system, touch screen interface
Feature of Automatic butyl coating machine
1.The Butyl Extruder adopt PLC control system ,touch screen interface
2.Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
3.Glue cylinder of Butyl coating equipment adopt the upright structure, easy to change butyl.
4.Butyl extruder machine adopt Siemens brand,stable performance.
5.Butyl extruder machine is suitable for square, rectangular, shaped, arc and kinds of aluminum frames.
6.The Butyl coating machine can be Quickly speed of warming,Up to 47m / min,improve work effect.
7.Butyl Extruder machine can automatically adjust the amount of glue according to different speeds.
8.Alarm system
Automatically alarm system, reminding adding butyl
9.Guiding Wheel
Using guiding wheel to help arc frames coating.
10.Automatic filter function
Automatically filter debris, keep spreading evently.
Technical Data of butyl extruder machine
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 20mm |
| Aluminum spacer width | 6A-27A |
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Air pressure | >0.6MPa |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Dimension | 2800*700*900mm |
| Total power | 380V, 5KW, 50HZ |

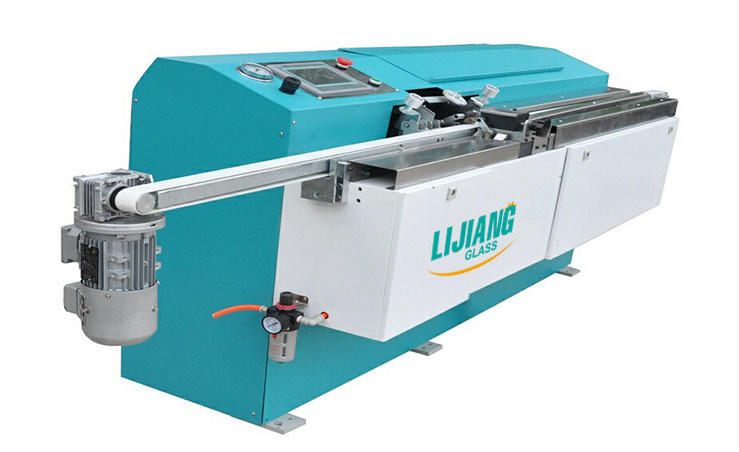

Detail of Automatic butyl extruder machine
Related products
Desiccant Filling Machine LJGZ 2020A
Main feature
• Germany Siemens PLC control system
• Touching screen interface, simple and visible
• The height can be adjusted according to the size of spacer frame
• Automatically loading and replenish desiccant
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Using big plastic barrel, save feeding time and improve efficiency
• Protection device for machine head
• Adopt vacuum pump loading device ,increase the loading speed
• Arc frame (optional)
• Fill large particle molecular sieve (Optional)
Technical data
| Max frame size | 2000mm*2000nn (2500mm*2500mm) |
| Min frame size | 300mm*250mm |
| Aluminum specifications | 6A - 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.5KW |
| Molecular sieve diameter needed | 0.5-0.8mm |
| Dimension | 1650mm*1100mm*3600mm |
