LIJIANG brand Auto Butyl Extruder Machine

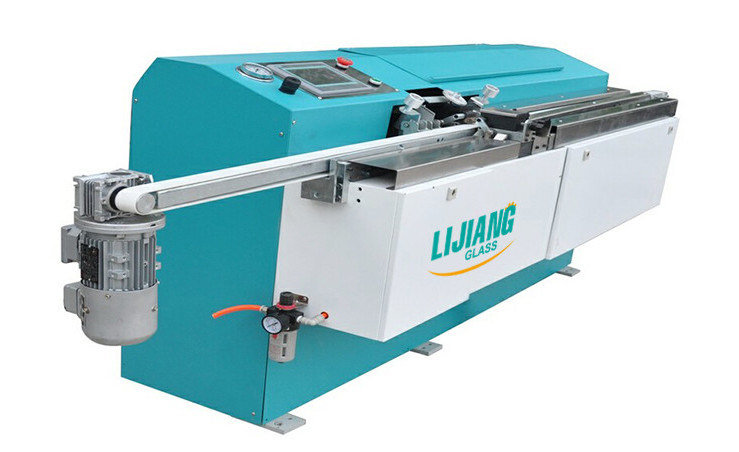

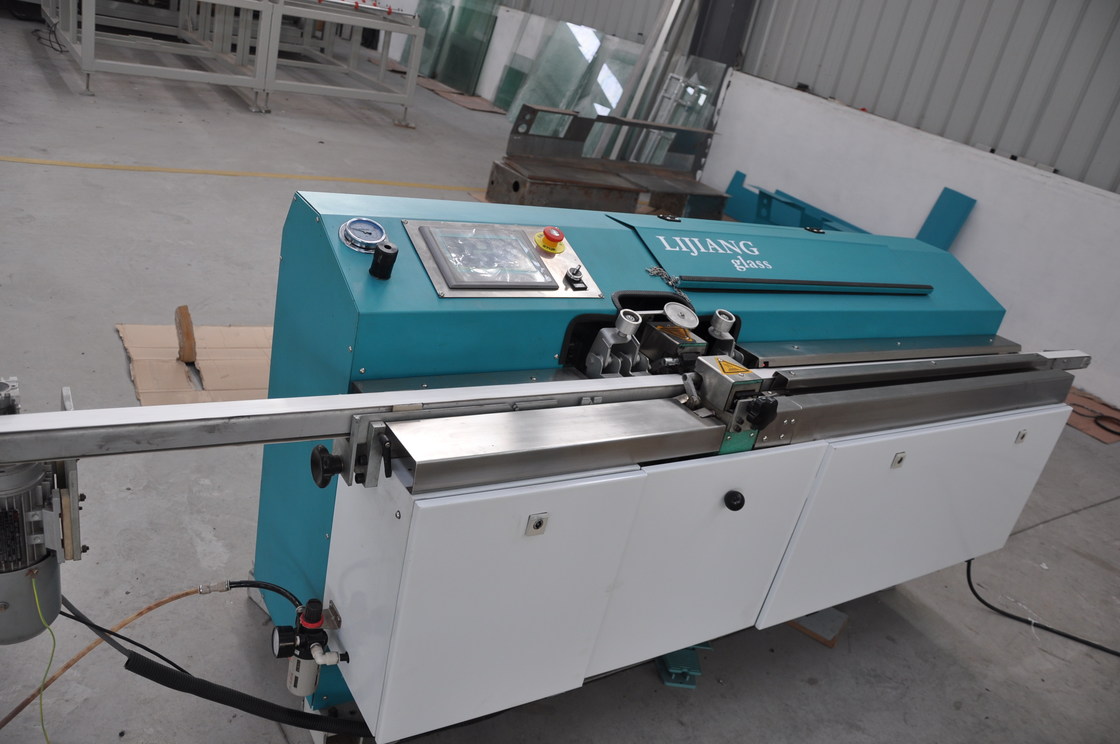

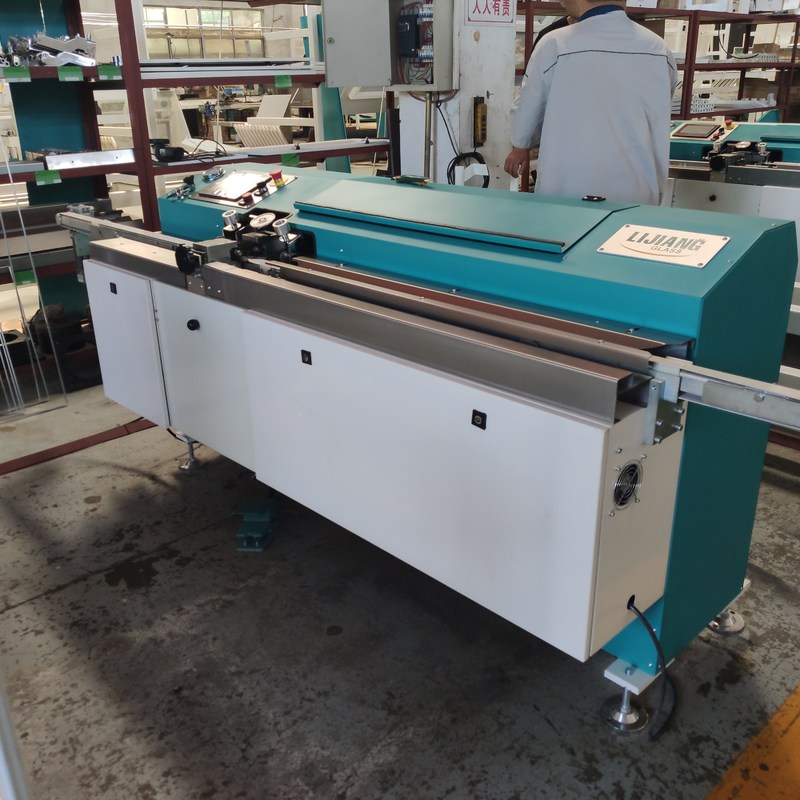

LJTB 02 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The butyl extruder uses large electrical control panel which makes the operation more easier than before. If thickness measurement is inaccurate. Can try the following methods, thickness measurement is not accurate to check whether the travel switch is installed firmly and there is an output signal
When the side is thick, whether the movable bending plate of the aluminum strip is firmly installed and it is required that the movable bending plate is parallel to the guide plate.
Whether the piston of the small oil cylinder can be telescopic, and can be telescopic in place, stroke 25mm. If not fully telescopic, check whether the small oil cylinder fastening screw is loose or whether the piston rod deformation stuck, check whether the throttle valve adjusting position is appropriate.

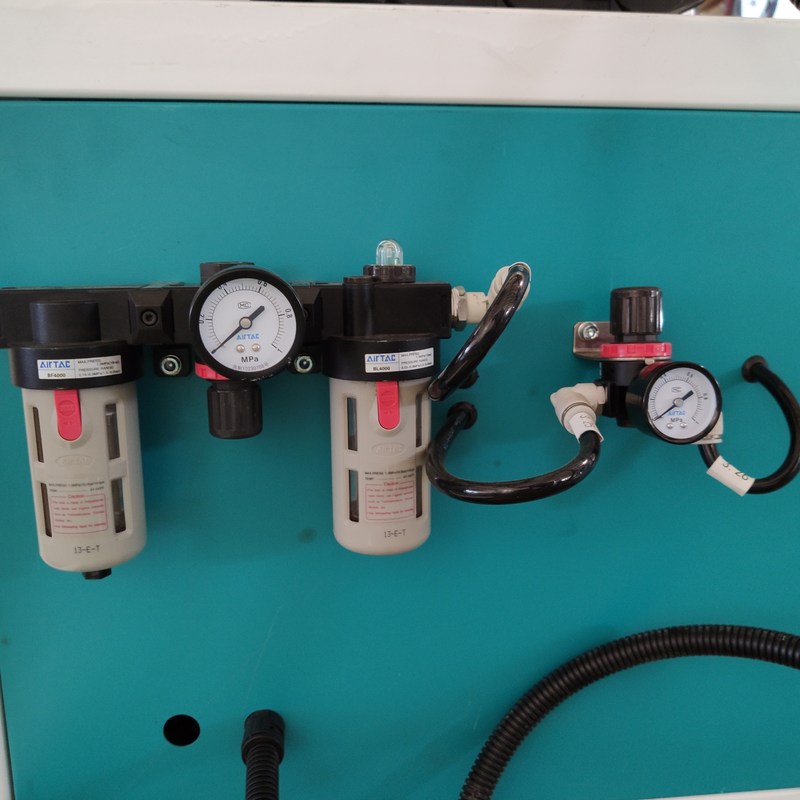

Under the condition of the above three problems, the pressure regulating valve handle of the adjustment panel is removed to remove the pressure. Under the condition of heating, the system will place the aluminum strip between the rubber nozzle, rotate the adjusting hand wheel to adjust the rubber nozzle to an appropriate position, and then re-thicken the side.

Our machine is of excellent quality, and the leakage of glue on the switch shaft is rarely seen.Need to replace the switch shaft seal ring, the stainless steel on the slider gland removed, in the slide block, on the right side of a top silk, removed, then the switch shaft connecting rod Y type joint removed, then on the right side of the adjustment screws removed, the temperature at 80-100 degrees, with thick gloves, turn to catch the connection arm axis will switch to the left, with kerosene is clean, in the middle of the switch on the shaft is out of the hole, glue the ends of the hole, is a round hole on the nipple, is a rectangular slot on the slider into the glue tank, the plastic hole narrow type circular groove is installed on both sides of the seal ring groove, go back to the outside is two locating slot width, To the inside of the glue that is clean, use teflon tape until it binds positioning groove diameter and switch axis is consistent, that will seal the soft piece of first into the installation of the sealing ring grooves, the hard outside, you can do a conical grinding tool will seal to suit the mold, heat sealing ring with a heat gun soft push to switch the installation of the shaft seal ring groove position, (if there is no mold is slowly pry up by deng xiaoping mouth with a screwdriver) two installed may compare loiter, blowing seal soft with a hot air gun on the platform until scroll switch shaft sealing ring squeeze to switch on the shaft and the mounting holes on the slide block with kerosene is clean, Grease the inner wall with mechanical butter, grease the switch shaft with mechanical butter, install the switch shaft into the mounting hole, install the top wire, and then connect the Y-type joint. It should be noted that the top wire should not be too tight and can be rotated flexibly without moving from side to side. When removing the switch shaft, make a mark before and after the two switch shafts are not universal. When the seal ring is installed and installed on the slider, do not smash it with great force. Pay attention to the seal ring not to break

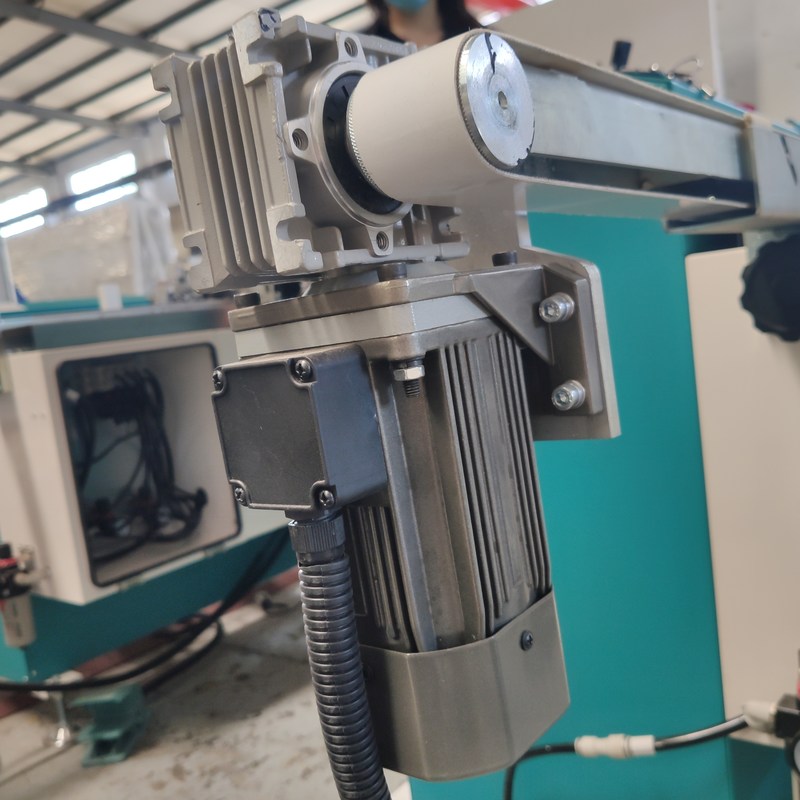

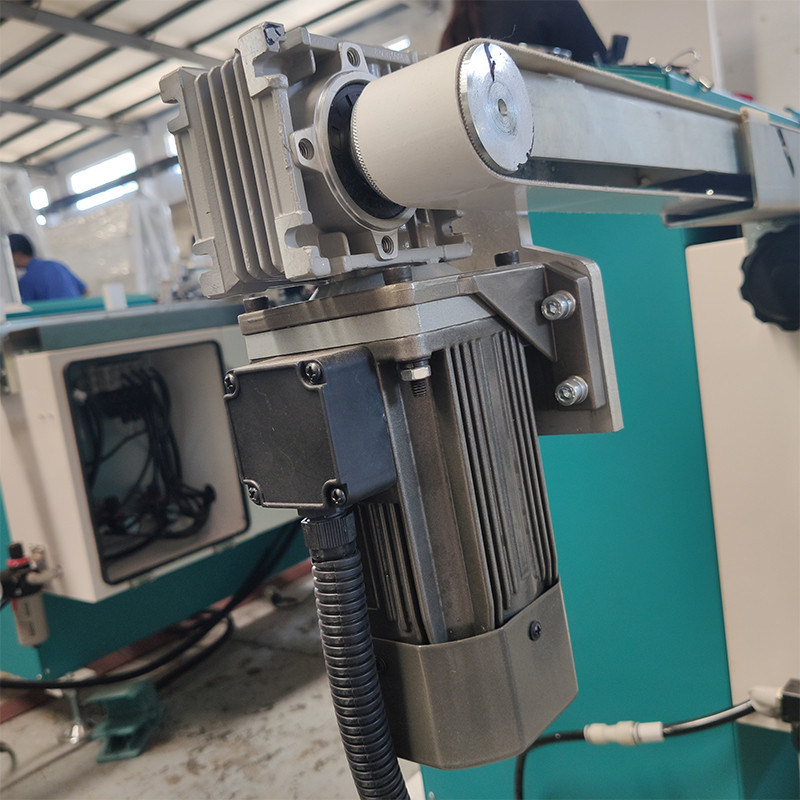

The tightness of the belt can be adjusted. After long use, the belt will become loose. The tightness of the belt can be adjusted by adjusting the tightening adjusting screws. The pressing wheel can also be adjusted. The pressing wheel can be adjusted by the fixed seat of the cylinder, and the stretching Angle can also be adjusted by the telescopic rod of the cylinder.
Our machine will not appear the glue is uneven, broken flow, aluminum frame not on the glue. If in the automatic state, the press wheel does not press down, the glue nozzle does not glue. The temperature of the glue is below 80 degrees Celsius. Try again after the temperature rises. Check whether the machine does not work when there is no glue, and use it after changing the glue. Check whether the machine has chosen the sleep mode and whether the photoelectric switch has signal Io.1, and align the two probes of the shooting switch before and after adjustment.

Technical data
