Butyl PIB Butyl Rubber Coating Machine

Butyl PIB Butyl Rubber Coating Machine
Butyl PIB Butyl Rubber Coating Machine Butyl PIB Butyl Rubber Coating Machine Butyl PIB Butyl Rubber Coating Machine

Large Image :  Butyl PIB Butyl Rubber Coating Machine

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJGZ2020
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 6000-7000usd
Packaging Details: WOODENCASE
Delivery Time: 30-40WORKING DAYS
Payment Terms: L/C, D/A
Supply Ability: 20SET/MONTH

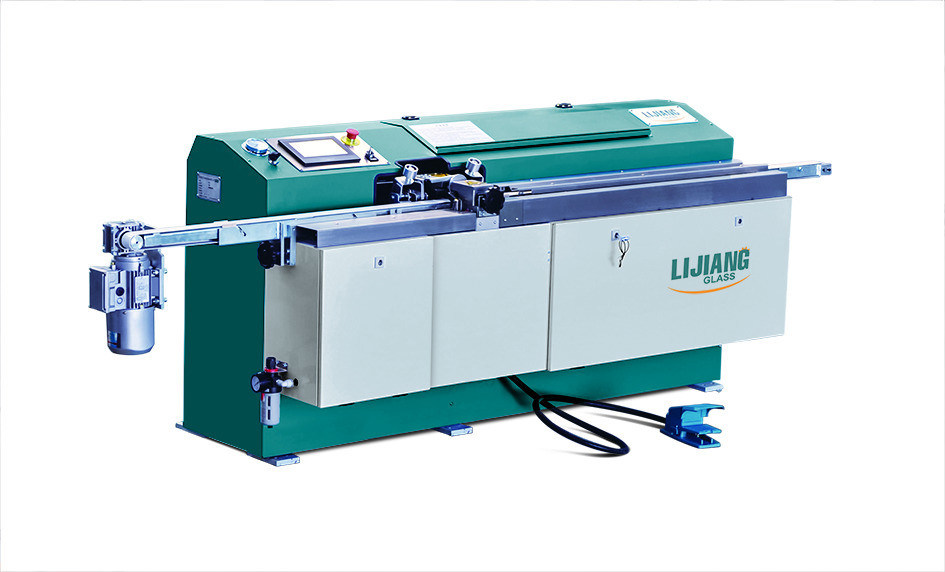

Butyl PIB Butyl Rubber Coating Machine

Description
Power(W): 5KW Glass Thickness: 1-40mm
Squeeze Pressure: 10-18Mpa Name: Adhesive Butyl Extruder Machine Butyl Sealant Coating Machine
High Light:

double glass machine

,

hot melt butyl extruder

Double Glazing Butyl PIB Extruder Machinery Butyl Rubber Coating Machine
LJTB01 butyl extruder type is used to spread the aluminum spacer frame evenly using hot melt butyl. The equipment uses a large electrical control panel, making the operation easier. Aluminum conveyor is controlled by frequency converter, the speed can be adjusted from 0m / min to 47m / min, which is the fastest speed in China. It is very popular for energy saving. The crimping system adopts pneumatic and hydraulic supercharging system, making the crimping pressure more stable. Dispensing cylinders can be easily replenished with butyl using a vertical rotary support system. It can extend the life of the crimping system and set the heating time within 24 hours with electric and air pressure. The distance of the crimping head can be adjusted automatically according to different aluminum spacers. This machine has reached technology all over the world with its features of perfect function and stable operation mode.
Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
4-30mm
Speed
0-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW, 50HZ
Dimension
2600×680×1100mm(L×W×H)
Weight
650kg
Butyl PIB Butyl Rubber Coating Machine 0
Machine Details
Automatic butyl extruder machine is used to spread the aluminum spacer frame (and other spacers) evenly with hot melt butyl. Butyl extruder uses a large electric control panel that can operate much easier than before. Speed can be adjusted from 0m / min to 47m / min, it is the fastest speed in China to date. Butyl extruders are very popular for energy saving. The crimping system adopts German pneumatic and hydraulic supercharging system, which makes the crimping pressure more stable. Butyl extruder has reached technology all over the world with its full function and the characteristics of famous spare parts.
Butyl PIB Butyl Rubber Coating Machine 1
Butyl PIB Butyl Rubber Coating Machine 2

Company information

Jinan Lijiang Automation Equipment Co., Ltd (LIJIANG GLASS) is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.



The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.



With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
