Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine

Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine
Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine

Large Image :  Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJZW2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: container
Delivery Time: 30
Supply Ability: 35set

Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine

Description
Name: Automatic Spacer Bending Machine LJZW2020 Max.bending Size: 2000mm*2000mm (2500mm*2500mm)
Min.bending Size: 250mm*200mm Aluminum Spacer Width: 5.5-27mm
Dimensional Error: ±0.5mm
High Light:

vertical glass washer

,

industrial glass washer

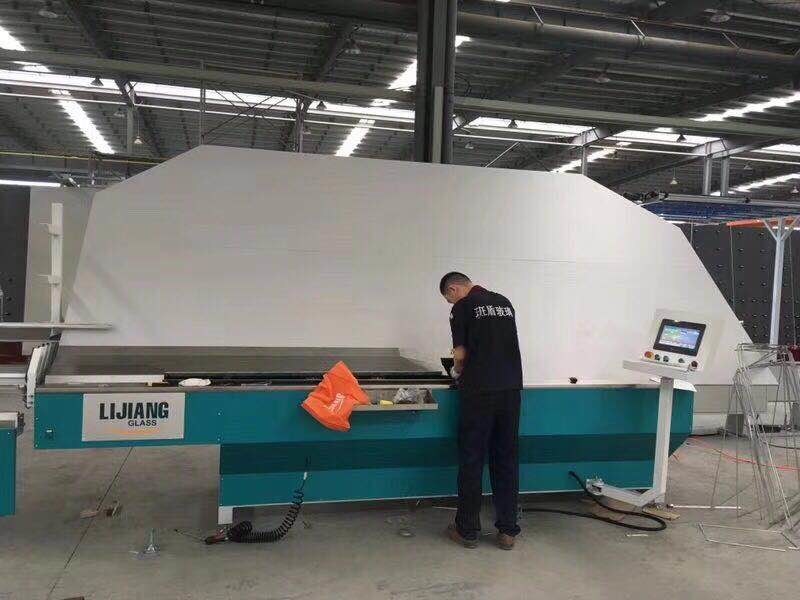

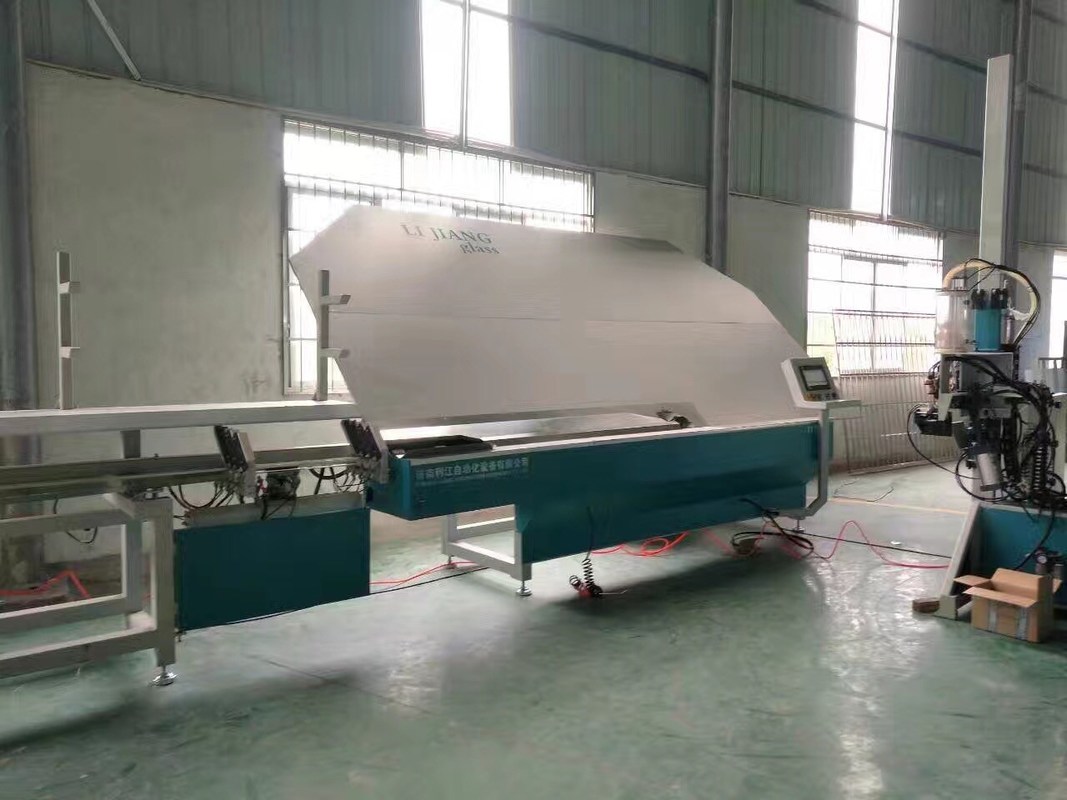

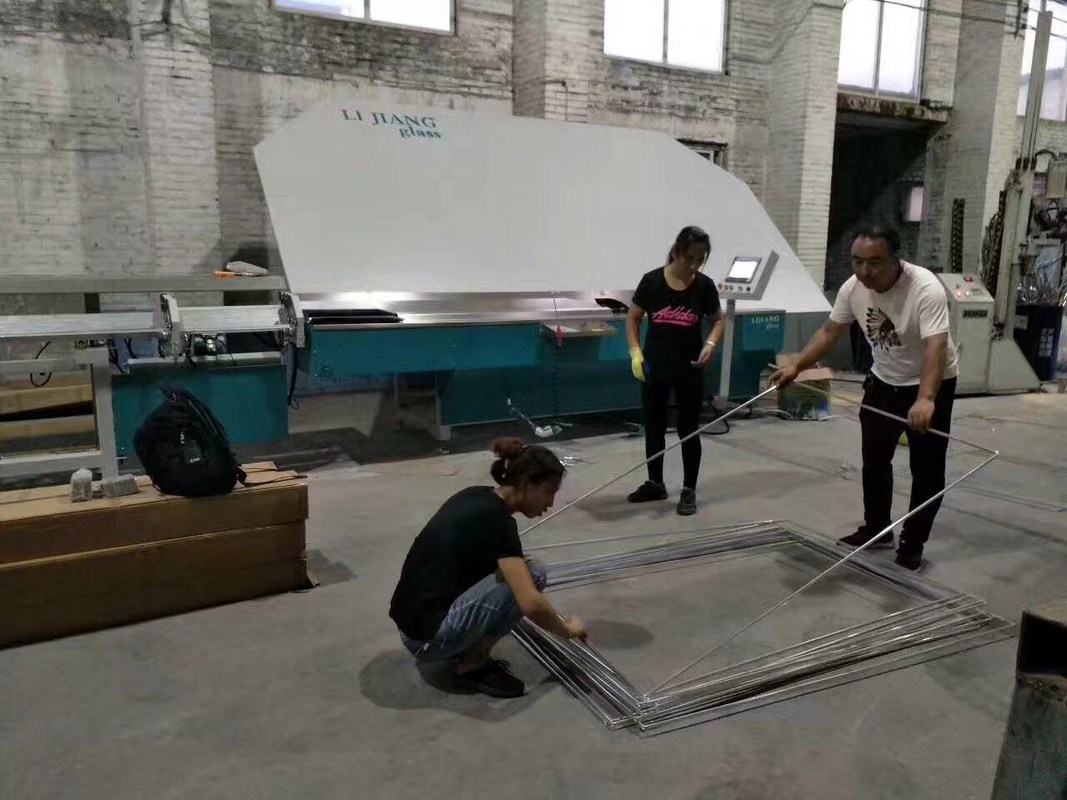

Automatic spacer bending machine LJZW2020

² Application

Automatic spacer bending machine is a special equipment for making aluminum frames

of insulating glass, which replaces the traditional fabrication technology. This equipment

can make a variety of convex polygonal aluminum frames by one aluminum strip in one

time, thus strengthening the strength of the aluminum frame, making the sealing effect of

the insulating glass more better.



Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine 0



Max.bending size 2000mm*2000mm (2500mm*2500mm)
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm



Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine 1



  • Adopt Siemens PLC control system
  • There are 4 Siemens servo
  • Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo
  • to change different racks.
  • Automatically cut and feed aluminum spacers

Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine 2



  • We have the special soft system which could avoid the 120mm to reduce waste. For example,
  • if the length of the gusset is 60mm, when the program calculates the right angle, there is a gusset.
  • When you start to bend the rectangular frame, you need firstly transport 120mm, then cut 120mm,
  • and then step on the pedal to bend frame, so you will waste the 120mm.

Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine 3Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine 4





Company Profile

JINAN KATION TRADING CO.,LTD.

Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass machinery

and related auxiliary equipment for the glass deep processing industry and the door and window construction

industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows &

doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass

processing solution and windows & doors solution for domestic and foreign customers well



Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine 5



Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine 6



Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine 7



FAQ

Q: What is the system of Kation’s after sale service?

A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding customer

to find the usual problem and the answer when customers meet.

Q: What is the details of the after sale service?

A: Step1: Notice before installation

Step2 : Confirm before installation

Step3: On-site installation



Step4: On-site debugging

Step5: On-site training

Step6: Client sign

Step7: On-line service

Step8: Technical service

More details please search www.lijiang-glass.com

Q: What's the payment term?

A: T/T, L/C and other payment terms could be negotiated.



Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine 8

state owned patent



Automated Vertical Glass Washing Machine / Moveable Spacer Bending Machine 9



Q: About this Machine,What’s the guarantee ?

A:1)Our guarantee for 12 months.

2)24 hour’s technical support by email or calling

3)English manual and video tutorial

4)We will provide the consumable parts at an agency price

5)24 hours on line service each day, free technical support.

Q:How about your warranty?

A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to

you within 24 hours and help you to repair your problem controller freely, even it's not from our factory

Q:Can we visit your factory before order?

A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we
