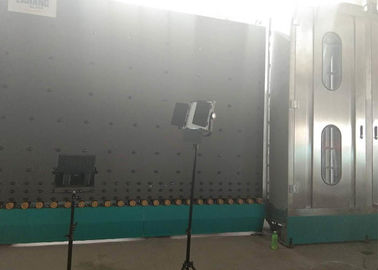

Durable Vertical Glass Washing Machine Soft Coating 2-10 M / Min Speed

China Durable Vertical Glass Washing Machine Soft Coating 2-10 M / Min Speed supplier

Large Image :  Durable Vertical Glass Washing Machine Soft Coating 2-10 M / Min Speed

Product Details:

Place of Origin: JINAN, CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJQX2535

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD 28000 - 36000 per set
Packaging Details: Container
Delivery Time: 30 days
Supply Ability: 60 sets per year
Contact Now
Detailed Product Description
Equipment Name: Vertical Glass Washing Machine Application: Washing Float And Loe -e Glass
Brushes: 6 Soft Brushes Material: Stainless Steel
Glass Washing Speed: 2- 10 M/min Glass Thickness: 3 - 15mm
Color: Green Field: Glass Processing

3 - 15mm Glass Thickness Automatic Vertical Glass Washing Machine



Application:

The vertical glass washing machine has 6 soft brushes with 0.1mm hair, can wash normal glass and soft coating glass well without any damages.



Parameters:



Max.glass size 2500*3500mm/2200*3000mm/2000*2500mm
Min.glass size 280*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 48m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:≤50μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW/27KW/24KW
Dimension 23500*3500*3700mm/18350*2600*3250mm/16400*2500*3100mm
Weight 6500kg/6000kg/5200kg





Additional Features of the Vertical Glass Washing Machine Price

  • Heating up plates and water tank from stainless steel.
  • Special brushes for reflecting glasses.
  • Adjustment of speed of a running tape.
  • Covers with glass windows.
  • Washer and dryer
  • LOW-E option /Coating glass washing

Air Knife Drying Section of the Vertical Glass Washing Machine Price

Normal temperatures, without the drying button to be opened. Fan drying the glass is mainly used in condition of low temperature (below 0 °) and the humidity of the air (such as rain and snow weather, wet weather) circumstances, which is not good effect caused by these conditions



The Use of Material of the Vertical Glass Washing Machine Price

  • Feeding and outlet section: 40 * 80 * 3mm Square steel (Q235B) which is welded together.
  • Washing section: all high-quality stainless steel (304 materials). 4mm thickness shell, and there is 1.5mm thickness stainless steel for six doors. Roof and bottom use 5mm thick stainless steel. And1.5mm thickness stainless steel for water tank. three pairs of soft brushes (6), can wash the coated glass, LOW-E glass.

Other Configuration of Materials of the Vertical Glass Washing Machine Price

  • All washing section use solid rubber roller,
  • Section respectively controlled by converter (Taiwan Delta) for regulating the washing speed.
  • The high-pressure blower fan. Circulating air can be heated, air knives and prop material adopt all model 304 stainless steel frame.
  • Using two circulating water filtration devices, also can be heated.
  • Bearings from domestic well-known brands: Harbin BearingDurable Vertical Glass Washing Machine Soft Coating 2-10 M / Min SpeedDurable Vertical Glass Washing Machine Soft Coating 2-10 M / Min Speed
