Product Details:
|
| NAME: | AUTOMATIC SPACER BENDING MACHINE | SPACER TYPE: | WARM EDGE SPACER / ALUMINIUM SPACER / STAINLESS STEEL |
|---|---|---|---|
| BRAND: | JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | SPACER SIZE: | 2000MM*2000MM / OVER THAT |
| SPACER WIDTH: | 5.5MM - 26.5MM | SPACER RACKS: | 4 GROUPS |
| TOTAL POWER: | 2.5 KW | DIMENSION: | 10500MM*2200MM*2600MM |
| High Light: | Warm Edge Spacer Bending Machine,Double Glazing Spacer Bending Machine,double glazing spacer bar bender |
||

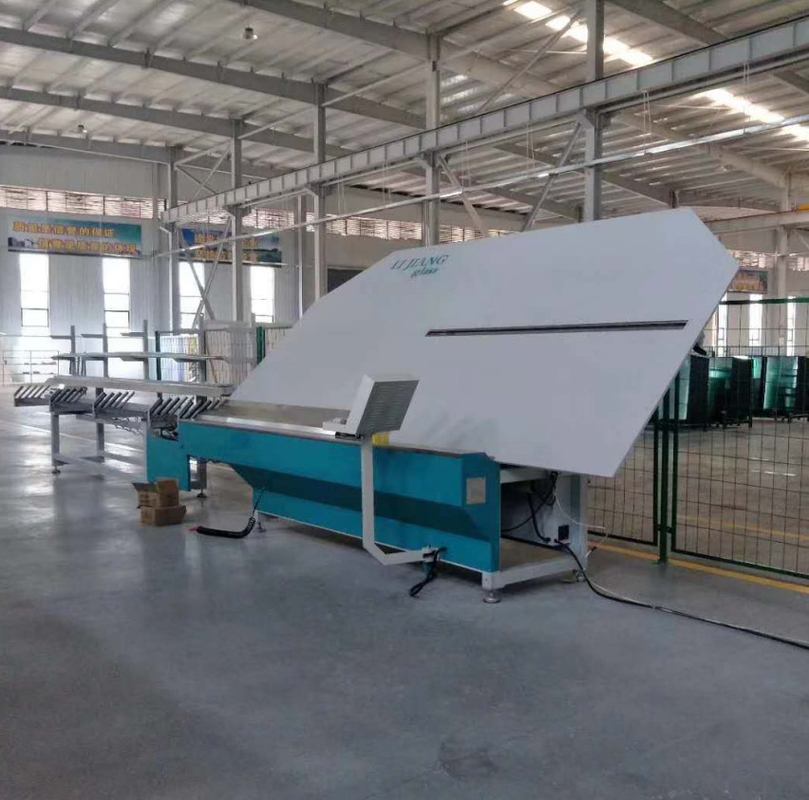

Automatic Warm Edge Spacer Bending Machine For Making Double Glazing Glass
Automatic spacer bending machine is used to bend the spacer frame for the inside of double glazing glass, the spacer can use aluminum spacer, stainless steel spacer and warm edge spacer. The machine can read the dates from computer directly in office. There are eight different shapes of spacers available. Using PLC to control it.
Main feature of warm edge spacer bending machine
• Siemens 1200 PLC control system with fast working speed

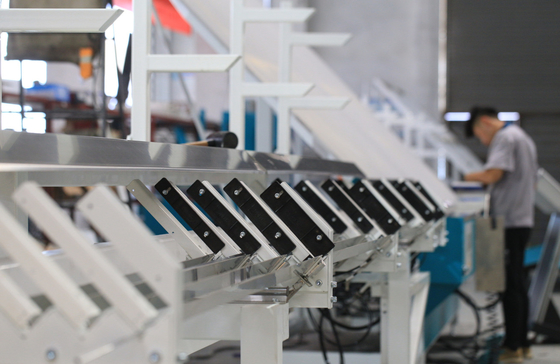

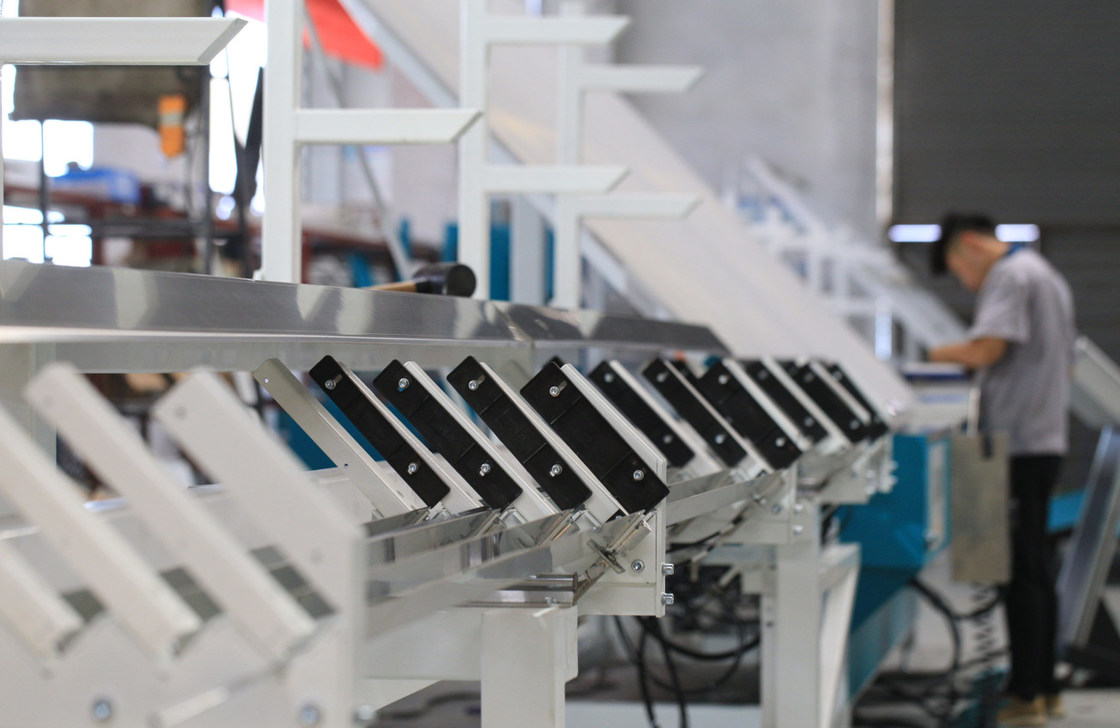

• 4 groups of storage
• Automatically cut and feed aluminum spacers
• Automatically avoid the pins while bending and cutting
• Bend spacer frames continuously
• Aluminum spacers are available in sizes of 6A-27A
• Different bending tools for different sizes of spacers
• Pause and Reset device for handling equipment failures
• Bend aluminum spacer, smooth stainless steel, warm edge spacer
• USB input function, read the excel format file directly
• Connect to ERP system (Optional)
• Automatically drill holes for filling argon gas (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)
Technical data
| Max. bending size | 2000mm*2000mm |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Servo driver | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| Low voltage component | Germany | SIEMENS |
| Triplet | Taiwan | AIRTAC |
| Cylinder | Taiwan | AIRTAC |
| Relay | Japan | OMRON |
| Sensor | KOREA | AUTONICS |
| Touch screen | Taiwan | WEINVIEW |
| Guide | Taiwan | TBI |
| Solenoid valve | Taiwan | AIRTAC |
| Switch power | Taiwan | TEND |
Insulating glass machinery manufacture products mainly include:
IG line series;
Automatic sealing robot series;
Low-e film edge deletion machine;
Spacer bending machine series;
Butyl extruder machine series;
Desiccant filling machine and other auxiliary insulating glass machines.
About 20 products are widely used in customized insulating glass industry, industrial aluminum alloy, building curtain wall, high-speed rail, elevator and advertising industry.
In 2016, we won the title of Jinan Golden Seed Enterprise and government subsidy by virtue of the first fully automatic butyl extruder machine with six axis independently developed.
In 2018, we won the title of national high-tech enterprise. During this period, we cooperated with many famous universities and the 53 Research Institute of the Ministry of ordnance industry to develop high-tech products.
Our corporate vision:
To make glass processing simpler and more intelligent, to be a high cost-effective specialty in the glass machinery industry, to better feed back and serve our customers, employees and society with better products and better services, and to make our life better!
