Product Details:
|
| Name: | Automatic Molecular Sieve Filling Machine | Dimensional Error: | ±0.5mm |
|---|---|---|---|
| Angle Error: | ±1 | Total Power: | AC220/380V 50Hz 2.5KW |
| Dimension: | 10500mm*2200mm*2600mm | Max.bending Size: | 2000mm*2000mm (2500mm*2500mm) |
| High Light: | Aluminum Molecular Sieve Filling Machine,Spacer Molecular Sieve Filling Machine,Aluminum Spacer Sieve Filling Machine |
||

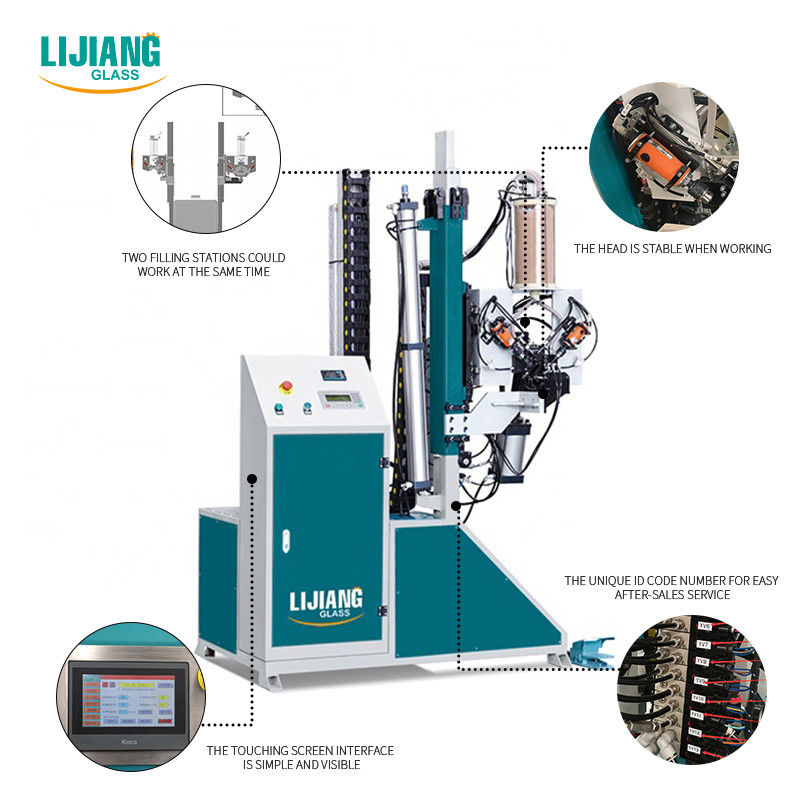

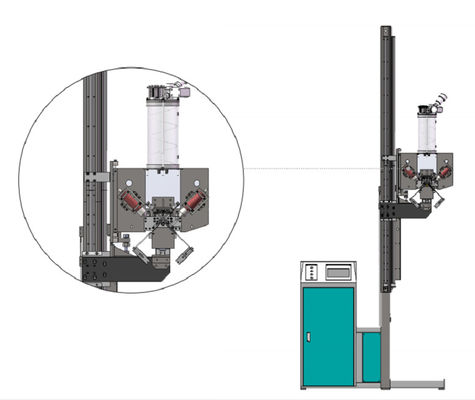

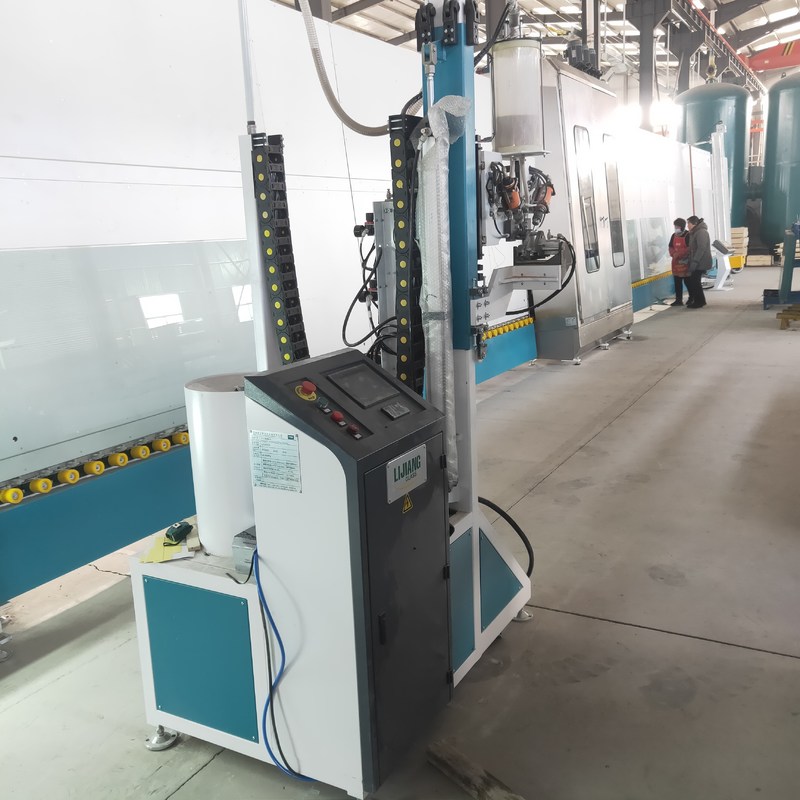

Desiccant Filling Machine LJGZ 2020
Main feature
• Adopt Siemens PLC control system
• Molecular sieve can be 0.5 – 0.9mm
• Touch screen interface, simple and visible
• The machine height can be adjusted according to the size of spacer frame
• Automatically loading and replenish molecular sieve

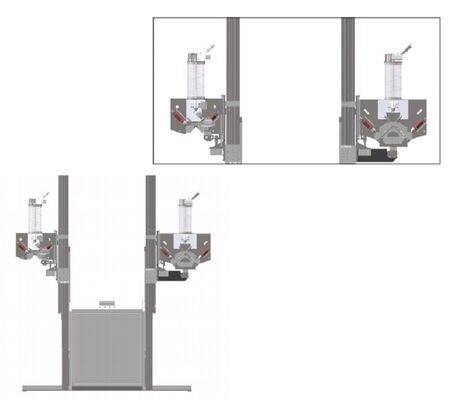

• Double tubes for unloading to increase filling speed
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Fill large particle molecular sieve
Technical data
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9 mm or 1.0 – 1.5mm |
| Dimension | 1100mm*1100mm*3600mm |
Aluminum frame transfer machine LJSKJ02
Main feature
• Spacer frame transport
• Easy operating, simple and flexible
| Power supply | 380V 50Hz |
| Total power | 0.18kw |
| Dimension | 2520*3012*3000mm |
Vertical Insulating Glass Sealing Robot LJTJ2540
Main Features:
• Japan Yaskawa servo system control, 8 axes, 7 sets of servo control system, full automatic and high-efficiency sealing machine
• 4 sections, can storage glass
• Adopt timing belt, smooth transfer and accurate position
• Automatically repair glass corners with scraper and roller
• Automatically measure glass size, glue depth (30mm)
• Every auto-function is with manual operation
• Can coat double glass
• Shape glass with optional edges, step glass, triple glass (Optional)
• One set of booster pump controls two groups of sealants (Optional)
• Can use silicone, polysulfide and silicone structural sealants
• Glue head is in the front of the machine, which is easy for coating step glass
• Can be connected with insulating glass processing line
• With code scanning function (Optional)
Technical data
| Max. glass size | 2500*4000mm |
| Min. glass size | 400*300mm |
| Glass thickness | 12-56 mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 15kw |
| Overall dimension | 11000*2000*3500mm |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
| CPU | Japan | YASKAWA |
| Low voltage component | Germany | SIEMENS |
| Guideway | Taiwan | HIWIN |
| Switching power supply | Taiwan | MW |
| Sensor switch | Korea | AUTONICS |
| Pneumatic component | Japan | SMC |
| Touch screen | China | GAOSHAN |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
IGU facade glass fully automatic aluminum bar bending machine for insulating glass processing
Main feature
• Siemens 1200 PLC control system with fast working speed
• 4 groups of storages
• Automatically cut and feed aluminum spacers
• Automatically avoid the pins while bending and cutting
• Bend spacer frames continuously
• Aluminum spacers are available in sizes of 6A-27A
• Different bending tools for different sizes of spacers
• Pause and Reset device for handling equipment failures
• Bend aluminum spacer, smooth stainless steel, warm spacer
• USB input function, read the excel format file directly
Technical data
| Max. bending size | 2000mm*2000mm |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Servo driver | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| Low voltage component | Germany | SIEMENS |
| Triplet | Taiwan | AIRTAC |
| Cylinder | Taiwan | AIRTAC |
| Relay | Japan | OMRON |
| Sensor | KOREA | AUTONICS |
| Touch screen | Taiwan | WEINVIEW |
| Guide | Taiwan | TBI |
| Solenoid valve | Taiwan | AIRTAC |
| Switch power | Taiwan | TEND |
