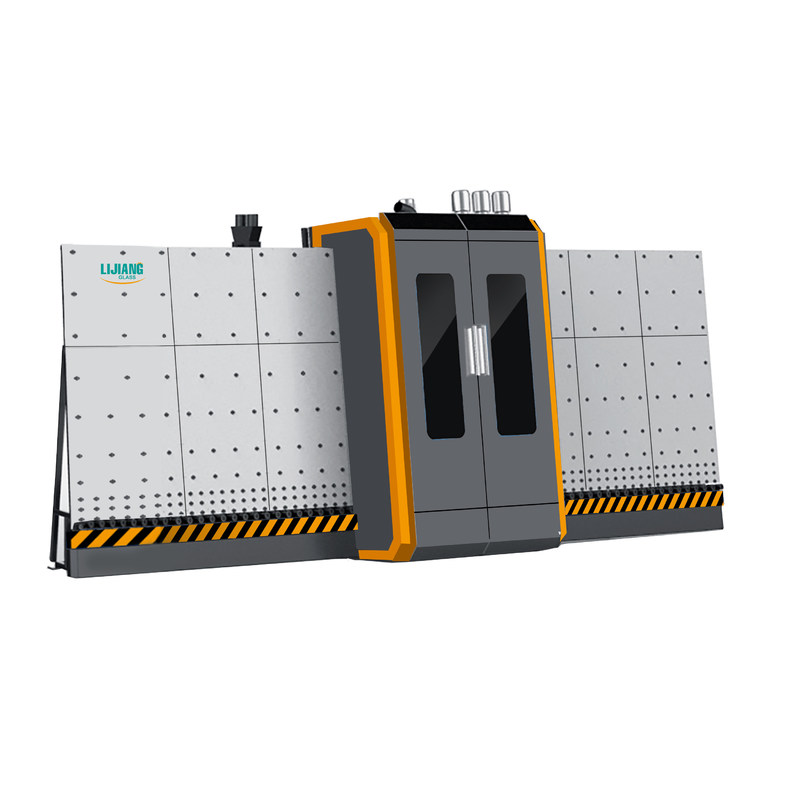

1600mm Horizontal And Vertical Glass Washing Machine Dryer 2-10m/min

1600mm Horizontal And Vertical Glass Washing Machine Dryer 2-10m/min
1600mm Horizontal And Vertical Glass Washing Machine Dryer 2-10m/min 1600mm Horizontal And Vertical Glass Washing Machine Dryer 2-10m/min 1600mm Horizontal And Vertical Glass Washing Machine Dryer 2-10m/min 1600mm Horizontal And Vertical Glass Washing Machine Dryer 2-10m/min 1600mm Horizontal And Vertical Glass Washing Machine Dryer 2-10m/min

Large Image :  1600mm Horizontal And Vertical Glass Washing Machine Dryer 2-10m/min

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJQX2500
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 35000
Packaging Details: container
Delivery Time: 30-40
Supply Ability: 50

1600mm Horizontal And Vertical Glass Washing Machine Dryer 2-10m/min

Description
Name: Vertical Glass Washing Dryer Min.glass Size: 280*450mm
Glass Thickness: 3-15mm Glass Washing Speed: 2-10m/min
Glass Conveyor Speed: 15m/min Washing Brushes: 3 Pairs
High Light:

1600mm Vertical Glass Washing Machine

,

10m/Min Vertical Glass Washing Machine

,

2m/Min Vertical Glass Washing Machine

Vertical glass washing machine



  • glass washer material
    The entire washing and drying section is made of 304 stainless steel, including sheet metal parts and internal parts.

    The thickness of the plate can reach 4mm, and the inner plate can reach 8mm. Better equipment performance and longer life.

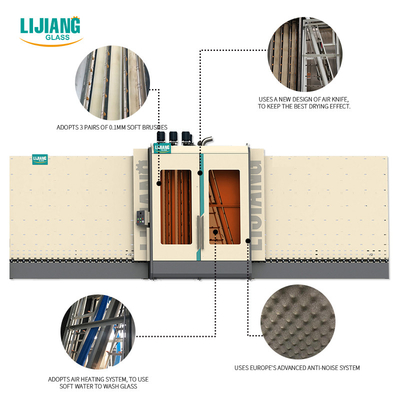

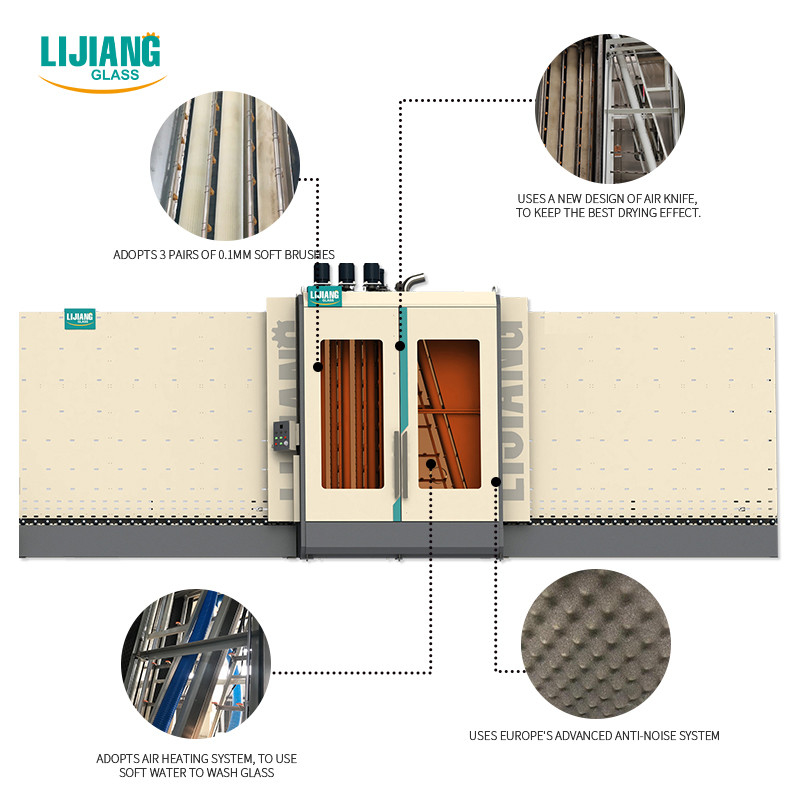

  • Six used glass washing machine brushes
    It has 6 brushes which are all soft brushes, can wash flat glass, tempered glass and low-e glass. It has a bristle diameter less than 0.1mm, never damage glass, especially for low-e glass.



  • Noise reduction device  of second hand glass washer
  • Water heating system  of   automatic temperature control
  • Adopts air heating system, use soft water to wash glass clearly.

    5. Automatically recognize glass thickness



    1). There is a universal joint device, when the thickness of the glass has been changed, the wind knife moves back and forth to adjust the distance so that the relative distance between the wind knife and the glass is constant, in order to avoid damage to the glass due to changes in glass thickness.

Main feature  of  siemens low voltage

l Automatic detection of low-e and high-performance glass

l Wash low-e glass online and offline, automatically recognize Low-e film

l The air knife can automatically adjust the width according to the thickness of the glass

l Using intelligent intermittent energy-saving working methods

l Hierarchical type washing system

l Water tank automatic temperature control, water replenishment system

European muffler system and stainless steel drying system



Technical data

Max.glass size(Optional) 2500*3500mm
Min.glass size 280*450mm
Glass thickness 3-15mm
Glass washing speed 2-10m/min
Glass conveyor speed 15m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Dimensions approximately 6260*4800*3100
Weight 3940kg
Total power 3P 31KW



Electrical parameters

NAME ORIGIN BRAND
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Photoelectric switch Korea AUTONICS
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Transfer motor Taiwan LINHAI
Brush motor China QINGHUA
Water pump China LINGXIAO
Pneumatic Components Taiwan AIRTAC



Company Profile

JINAN KATION TRADING CO.,LTD.

Kation-Tech was established in 2009, specializing in the research and development, production and sales of insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. It has professional processing bases for insulating glass machinery, aluminum-plastic doors and windows machinery and related auxiliary materials. So as to provide domestic and foreign customers with the most comprehensive glass processing solutions and door and window solutions. By 2019, we have exported glass machinery and materials to nearly 30 countries and regions including the United States, South America, Europe, the Middle East, and India. We have established a sound international business relationship with 10 powerful agents, working together to build a world-renowned international brand. Kation-Tech, technology, professionalism, integrity, and win-win future with you!

1600mm Horizontal And Vertical Glass Washing Machine Dryer 2-10m/min 0





1. There is the Low-e glass sensor in the washing machine
This sensoris installed before washing machine. It could automatically recognize Low-e glass surface fast and precisely, preventing the glass from dropping Low-e surface.

2. The washing machine uses six soft (Low-e) brushes with the 01mm diameter only. It has 6 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.

3. Using Europe's advanced anti-noise system to create a good working environment for employees. The noise can be controlled below 90 decibels by using nylon gear and sponges.

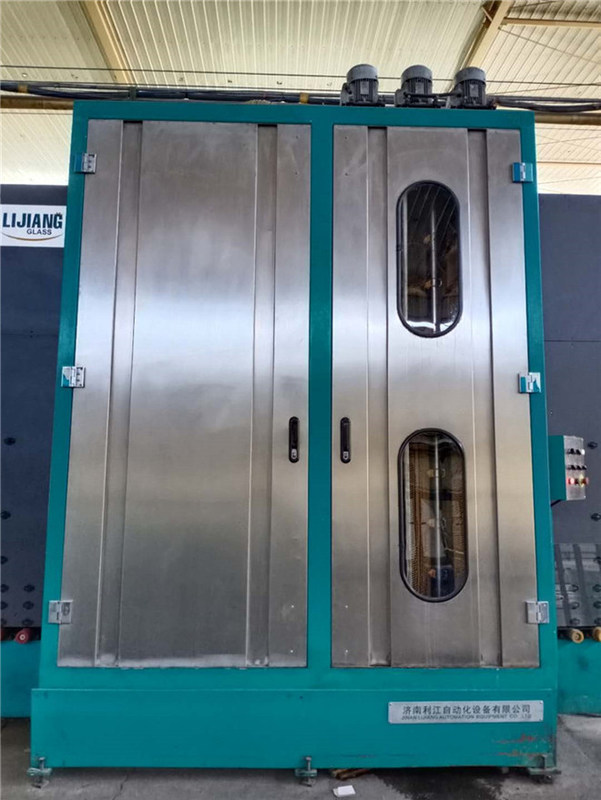

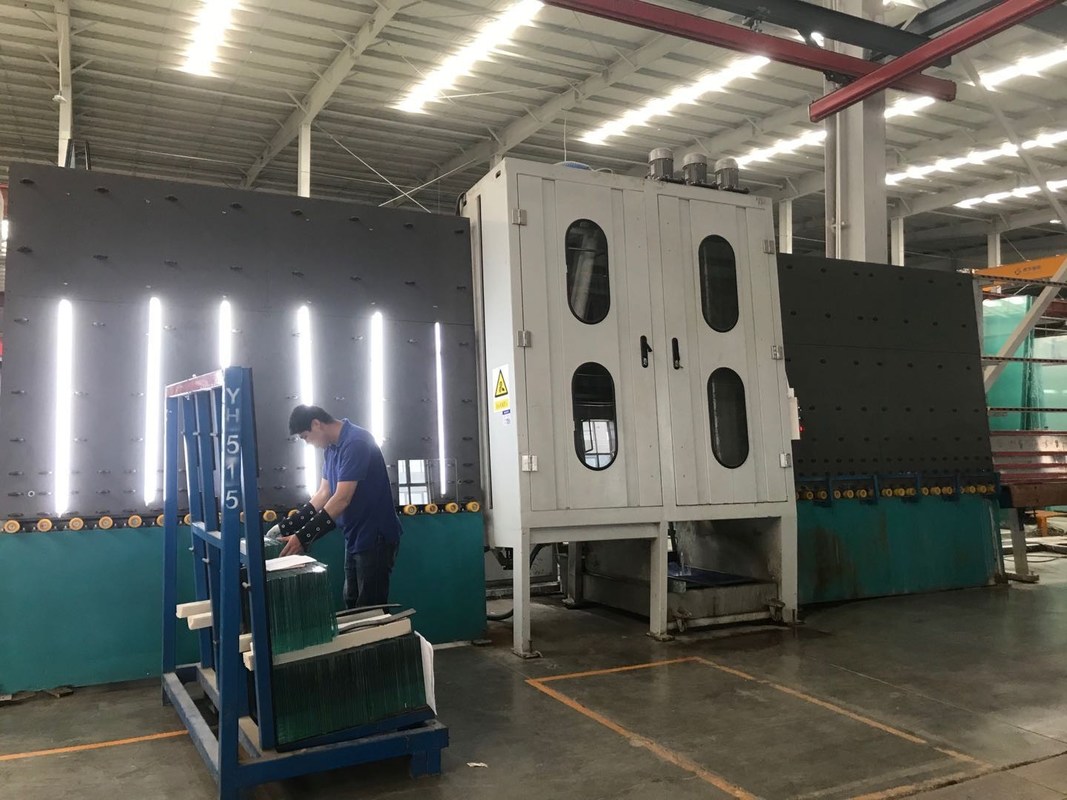

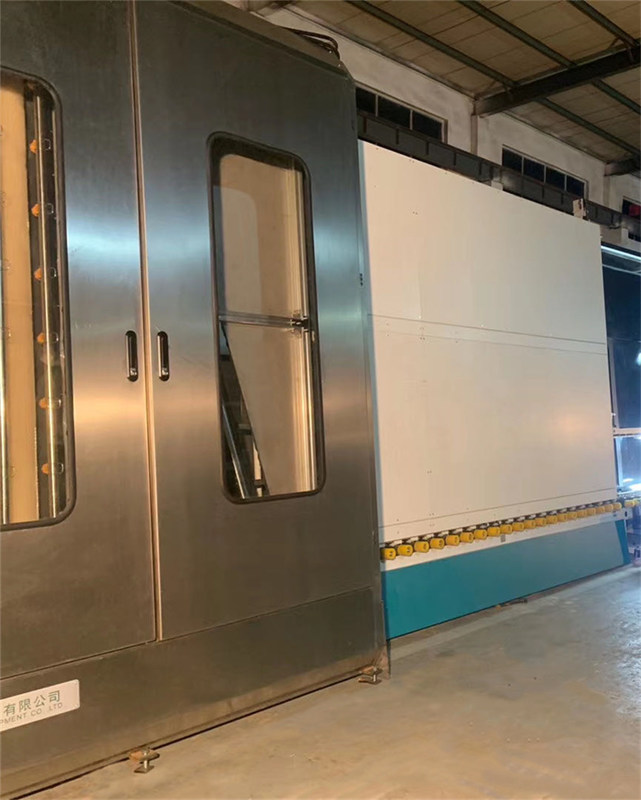

Automatic large size Glass Vertical Glass Washing Machine

4. Water heating system and water filtration system.
Due to the different water quality in different countries, in order to ensure that the glass is clean enough, an air heating system is used and fresh water is used to clean the glass. Also, use a water filtration system to recycle water, save water and keep it clear.
5. The special structure inside the washing machine can automatically identify the thickness of the glass. Allows rapid transfer of glass of varying thicknesses, increasing production speed. After test, it only takes 22s to produce 1m*m insulating glass.

1). There is a universal joint. When the thickness of the glass changes, the air gap moves back and forth to adjust the distance, so that the relative distance between the air gap and the glass is constant, in order to avoid the change of glass thickness due to glass damage.
2). There are sprockets on both sides of the bottom of the glass, which actively transmit the glass and keep the speed fast. Not only the large size but also the small size glass can pass quickly.
