Product Details:
|
| Name: | Vertical Glass Washing Machine | Min.glass Size: | 280*450mm |
|---|---|---|---|
| Glass Thickness: | 3-15mm | Glass Washing Speed: | 2-10m/min |
| Glass Conveyor Speed: | 15m/min | Washing Brushes: | 3 Pairs |
| High Light: | Horizontal Glass Washing And Drying Machine,1600mm Glass Washing And Drying Machine,Glass Washing And Drying Machine 10m/min |
||

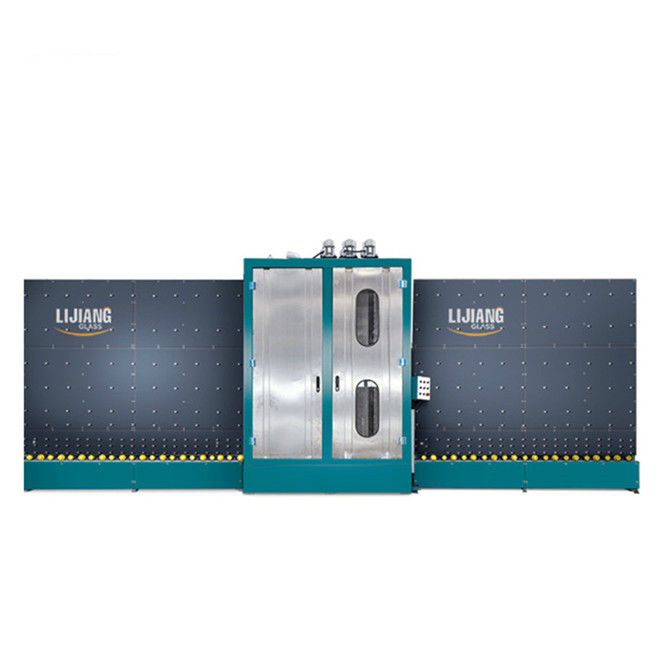

Vertical glass washing machine

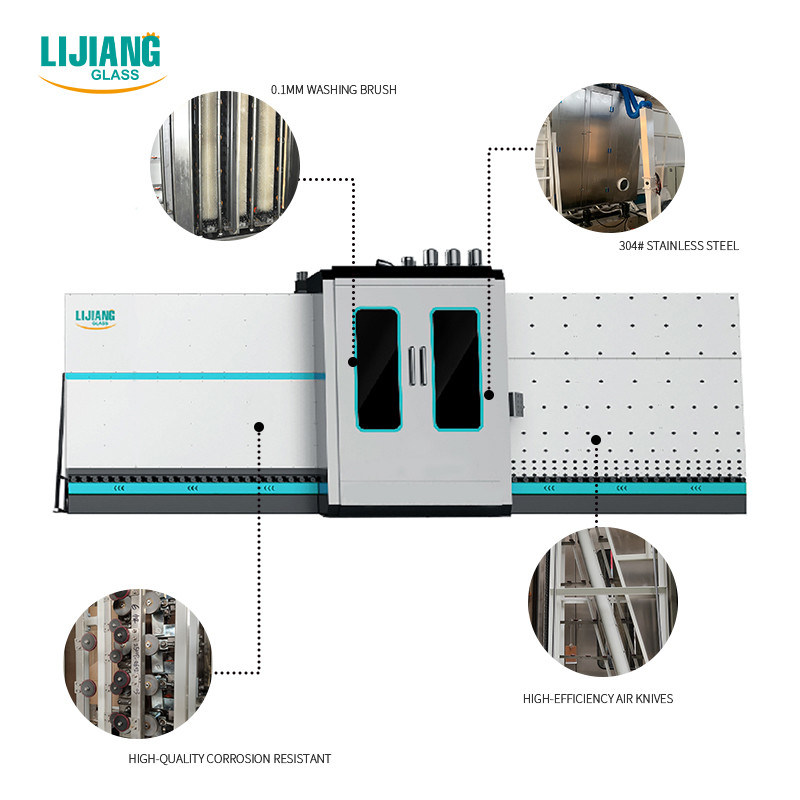

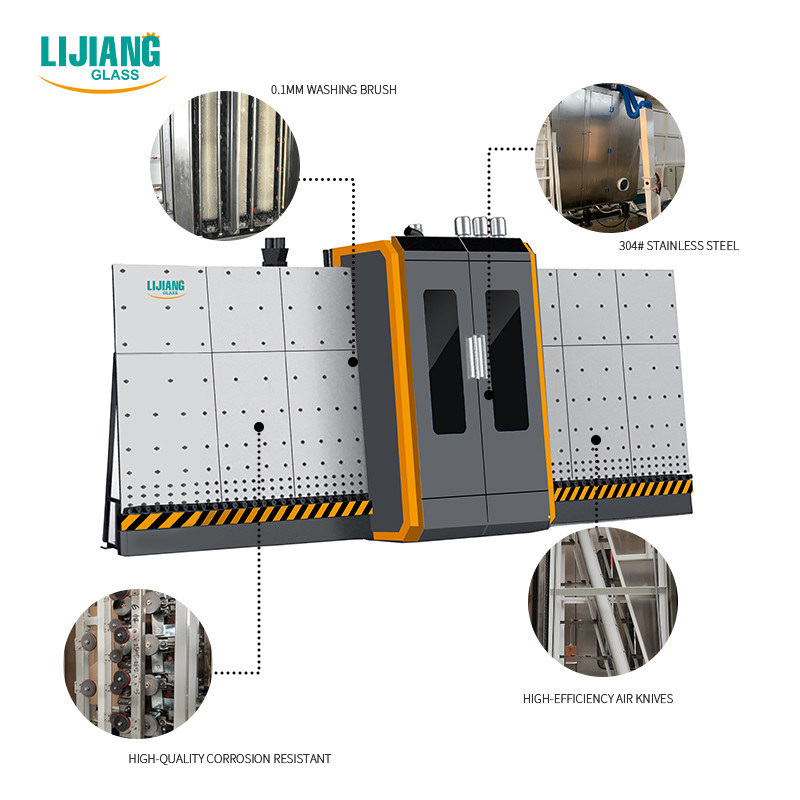

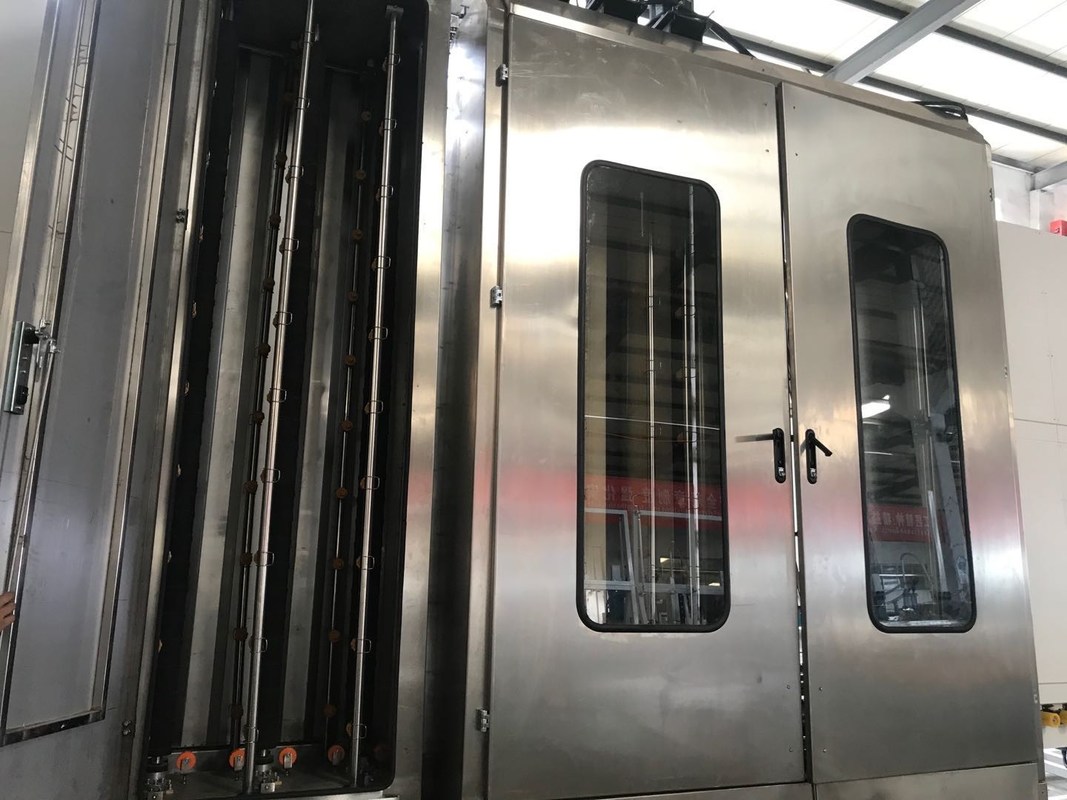

The whole washing and drying section adopt 304 stainless steel, including the plate and interior spare parts.
The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer.

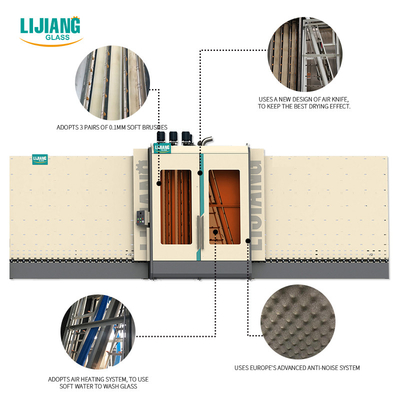

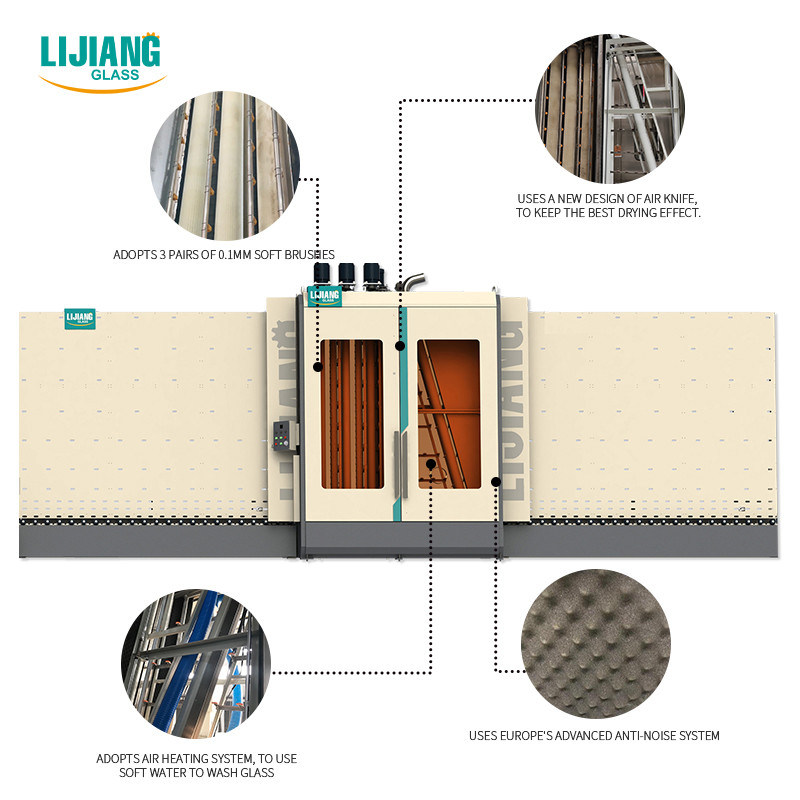

It has 6 brushes which are all soft brushes, can wash flat glass, temper glass and low-e glass. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass .
Adopts air heating system, use soft water to wash glass clearly.
5. Automatically recognize glass thickness
1). There is a universal joint device, when the glass thickness was changed, the wind knife will move forward and backward to adjust the distance so that the relative distance between the wind knife and the glass is constant, so as to avoid damage to the glass due to the changes of the glass thickness.
Main feature of siemens low voltage
l Automatic detect low-e & high performance glass
l Wash online and offline low-e glass, automatically recognizes Low-e film
l The air knife can automatically adjust the width according to the glass thickness
l Using intelligent intermittent energy-saving working methods
l Hierarchical type washing system
l Water tank automatic temperature control, water replenishing system
European silencer system&stainless steel drying system
Technical data
| Max.glass size(Optional) | 2500*3500mm |
| Min.glass size | 280*450mm |
| Glass thickness | 3-15mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 15m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Dimensions | approximately 6260*4800*3100 |
| Weight | 3940kg |
| Total power | 3P 31KW |
Electrical parameters
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Photoelectric switch | Korea | AUTONICS |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Transfer motor | Taiwan | LINHAI |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Pneumatic Components | Taiwan | AIRTAC |
