Multifunctional Integrated Hollow Glass Cleaning And Drying Machine

Multifunctional Integrated Hollow Glass Cleaning And Drying Machine
Multifunctional Integrated Hollow Glass Cleaning And Drying Machine
Multifunctional Integrated Hollow Glass Cleaning And Drying Machine Multifunctional Integrated Hollow Glass Cleaning And Drying Machine Multifunctional Integrated Hollow Glass Cleaning And Drying Machine Multifunctional Integrated Hollow Glass Cleaning And Drying Machine Multifunctional Integrated Hollow Glass Cleaning And Drying Machine

Large Image :  Multifunctional Integrated Hollow Glass Cleaning And Drying Machine

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: XX
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: 8000 USD to 7000 USD
Packaging Details: container
Delivery Time: 7 working days
Payment Terms: L/C, T/T
Supply Ability: 10 units per month
Contact Now

Multifunctional Integrated Hollow Glass Cleaning And Drying Machine

Description
Voltage: 380V 50Hz 3P Power18.5Kw: 18.5Kw
Weight: 3000 Kg Warranty: 1 Year
Glass Thickness: 3-25mm
High Light:

Integrated Hollow Glass Cleaning And Drying Machine

,

Multifunctional Glass Cleaning And Drying Machine

,

IG Glass Cleaning And Drying Machine

Fully automatic multifunctional hollow glass cleaning and drying integrated machine

Multifunctional Integrated Hollow Glass Cleaning And Drying Machine 0
KTLQ-2500 Vertical Glass Washing Machine
KTLQ-2500 glass washing machine can wash max glass of 2500mm*3500mm, more large size and less size can be optional.
- Self-Diagnosis system with touch screen on computer.
- Stainless steel washer with 8 ( 6 ) brushes, soft brushes from MONFORTS of Germany, hard brushes automatically open when Low-E glass input.
- Rotate speed of brush frequency control. (optional)
- Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm
- High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working. ( 25 second /unit)
- Automatic detection of Low-E glass and alarm for coating in reverse. (optional)
- Structure stepped and three-layer I.G. unit available. (optional)
- Precision of plate press: ±0.3mm




Vertical Glass Washing Machine Video Display

The series vertical glass washing and drying machine uses advanced fixture and technology during the whole production process, and ensures formation and assembly accuracy of work pieces.
Equipment Advantages
Multifunctional Integrated Hollow Glass Cleaning And Drying Machine 1
Multifunctional Integrated Hollow Glass Cleaning And Drying Machine 2
Multifunctional Integrated Hollow Glass Cleaning And Drying Machine 3
Multifunctional Integrated Hollow Glass Cleaning And Drying Machine 4
Multifunctional Integrated Hollow Glass Cleaning And Drying Machine 5
Multifunctional Integrated Hollow Glass Cleaning And Drying Machine 6
Multifunctional Integrated Hollow Glass Cleaning And Drying Machine 7




Advantages & Benefits

☆The glass washing machine could clean ordinary flat glass or coated glass with a thickness of 3~12mm; ☆The cleaning area uses 3 pairs of brushes or optional 4 pairs of brushes (or imported soft brushes, coating or LOE special), two or four water cleaning; ☆The machine adopts an inclined vertical structure, the flat glass is placed on the conveyor roller, passes through the feeding section, cleaning and drying section, and reaching the discharging section to complete the glass cleaning task; ☆The cleaning area and the water tank are made of stainless steel and corrosion-resistant materials; the inclined wind knife with strong wind can dry the glass surface; ☆The discharge section is equipped with inspection lamps to check the cleaning quality of the glass. The machine is easy to operate, and the operation buttons are concentrated on the operating table.
Multifunctional Integrated Hollow Glass Cleaning And Drying Machine 8



Configuration of three pairs of brushes

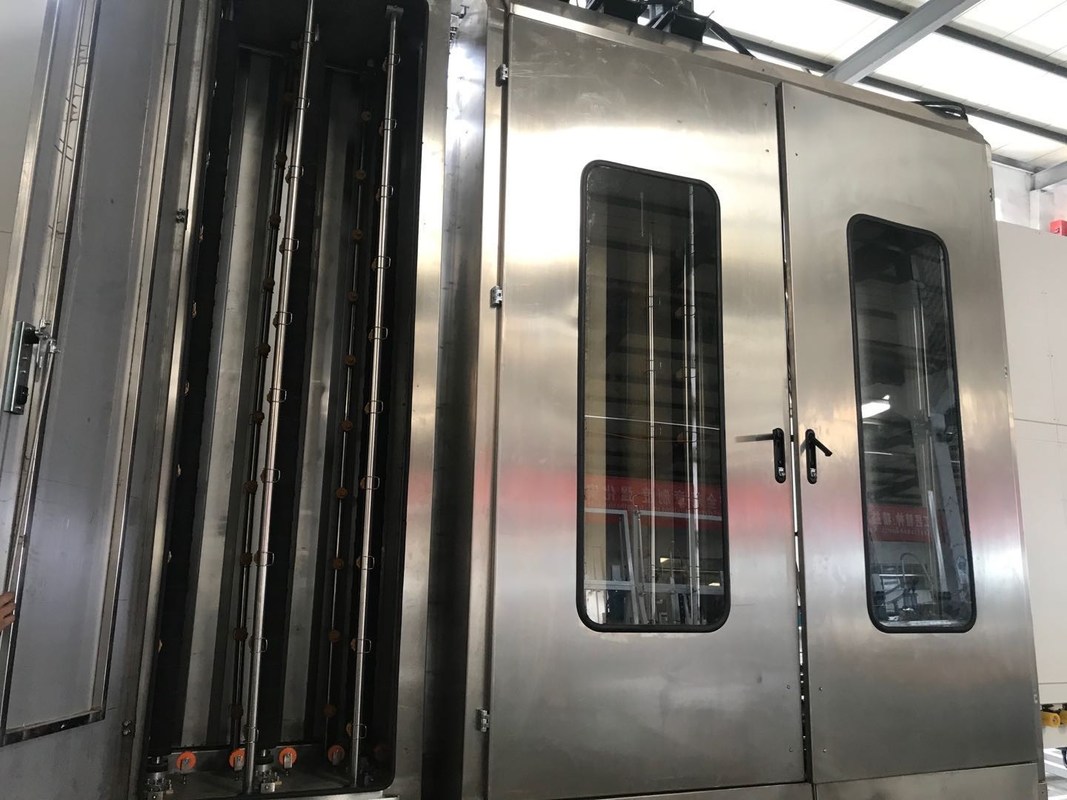

Six high temperature resistant wire brushes with diameter of 180mm + four sprays, the glass is cleaned and the speed is fast (10-12m per minute). The first brush is equipped with two bristles and is lifted by a cylinder.
Multifunctional Integrated Hollow Glass Cleaning And Drying Machine 9



Water rust and corrosion resistant
The parts and screws in the cleaning box that are in contact with water are made of stainless steel, copper, waterproof aluminum, nylon and other materials. They will not rust after long-term use and are easy to maintain.
Multifunctional Integrated Hollow Glass Cleaning And Drying Machine 10



High efficiency air knives
Two pairs of stainless steel air knives are equipped with high wind power and good drying effect, with heating system. The unique circulating windshield drying system is energy-saving and low-noise (the wind temperature can reach 40 degrees without heating in winter).
Multifunctional Integrated Hollow Glass Cleaning And Drying Machine 11



Stainless steel structure
The air-drying box glass support frame is uniformly welded by high-strength stainless steel, and the whole washing parts of glass washing and drying equipment will be used for a long time without rust and will not cause secondary glass pollution.
