Product Details:
|
| Name: | Vertical Insulating Glass Sealing Robot | Glass Thickness: | 12-50mm |
|---|---|---|---|
| Min. Glass Size: | 400*300mm | Max. Glass Size: | 2500*4000mm |
| Squeeze Pressure: | 32MPa | Voltage Power: | 380V 15kw |
| High Light: | Automatic Insulated Glass Sealing Robot,Sealant Insulated Glass Sealing Robot,Insulated Glass Sealant Sealing Robot |
||

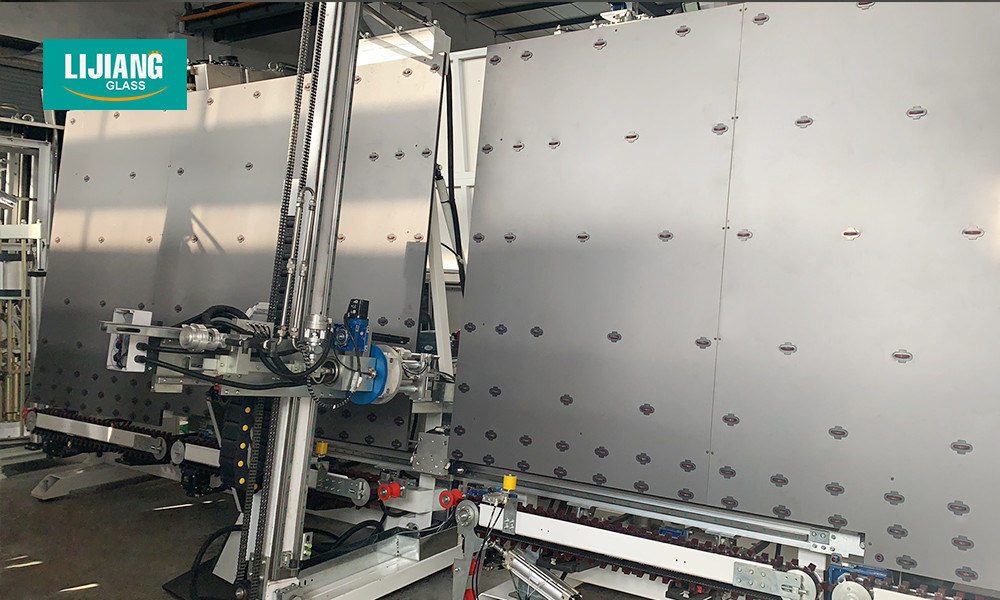

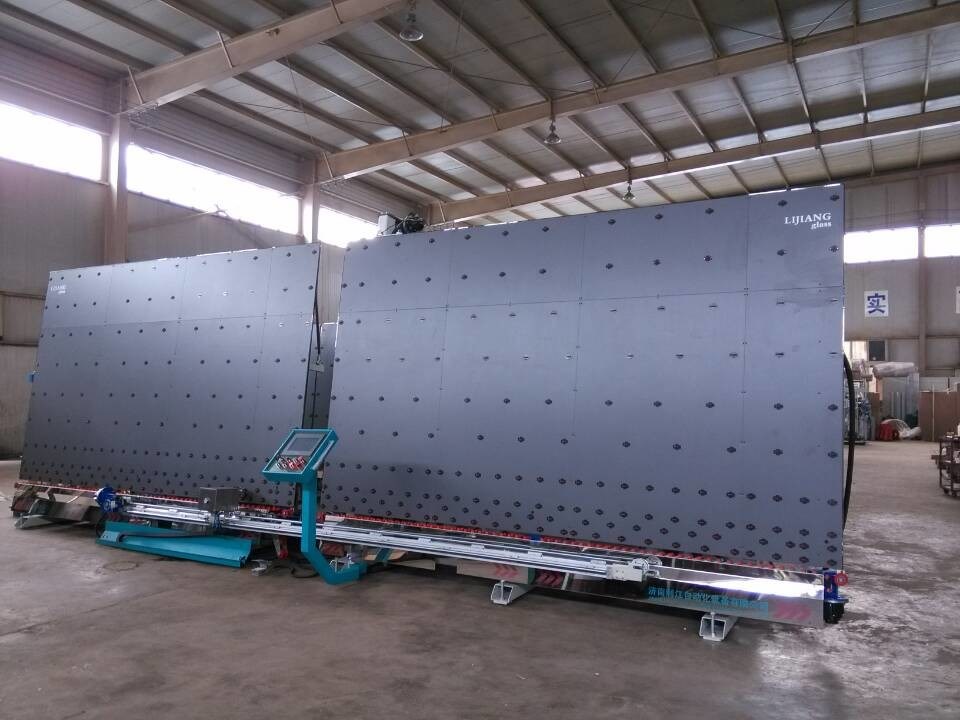

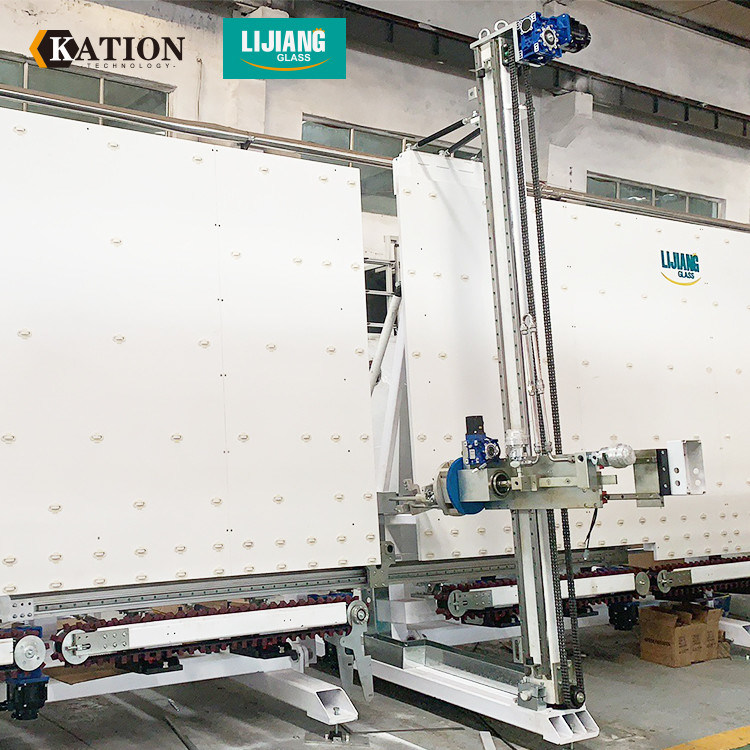

Automatic insulated glass sealing robot Insulating Glass Auto Sealing Robot insulating glass sealant sealing robot
Main Features of servo control system
• Japan Yaskawa servo system control, 8 axes, 7 sets of servo control system, full automatic and high-efficiency sealing machine
• 4 sections, can storage glass
• Adopt timing belt, smooth transfer and accurate position
• Automatically repair glass corners with scraper and roller
Automatically measure glass size, glue depth (30mm)
• Japan Yaskawa servo system control, 8 axes, 7 sets of servo control system, full automatic and high-efficiency sealing machine
• 4 sections, can storage glass
• Adopt timing belt, smooth transfer and accurate position
• Automatically repair glass corners with scraper and roller
Automatically measure glass size, glue depth (30mm)
Technical data of servo driver
| Max. glass size | 2500*4000mm |
| Min. glass size | 400*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 15kw |
| Overall dimension | 11000*2000*3500mm |
Electrical parameters of pneumatic component
| NAME | ORIGIN | BRAND |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
| CPU | Japan | YASKAWA |
| Low voltage component | Germany | SIEMENS |
| Guideway | Taiwan | HIWIN |
| Switching power supply | Taiwan | MW |
| Sensor switch | Korea | AUTONICS |
| Pneumatic component | Japan | SMC |
| Touch screen | China | GAOSHAN |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
FAQ
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
