Product Details:
|
Product Name: | Automatic Butyl Extruder Machine | Voltage: | 380V 50Hz 3P |
---|---|---|---|
After-sales Service Provided: | Engineers Service | Warranty: | 1 Year |
Application: | Making Double Glazing Glass Products Machine | Heating Time: | 15 Mins |
High Light: | Automatic Butyl Extruder Machine,Butyl Extruder Machine With Gluing Nozzle,IG glass automatic butyl extruder |

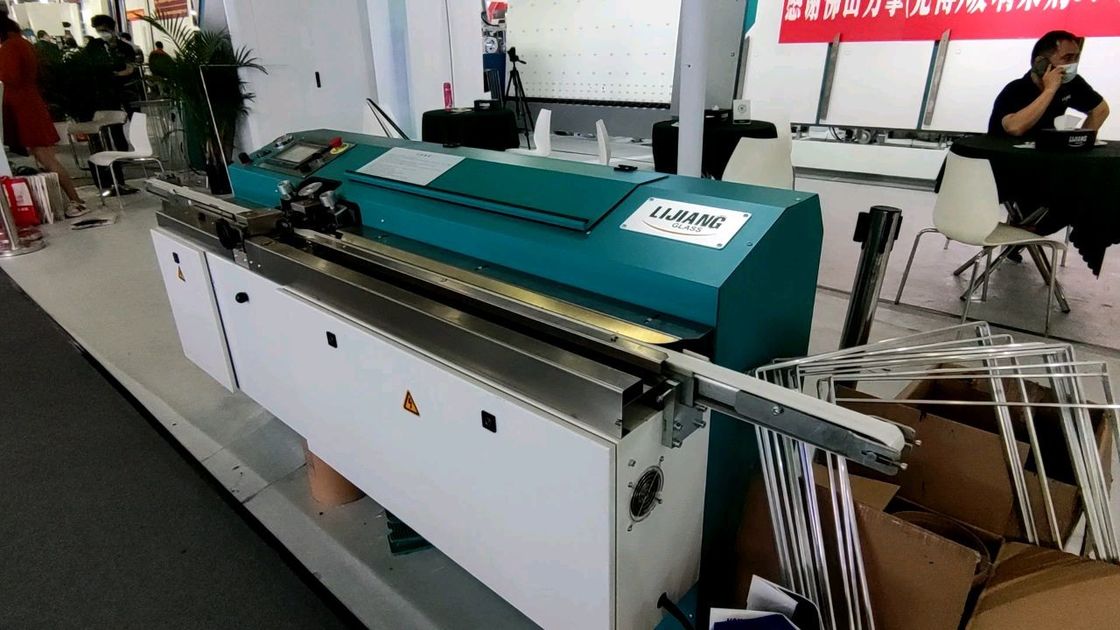

Automatic Butyl Extruder Machine With Adjustable Gluing Nozzle

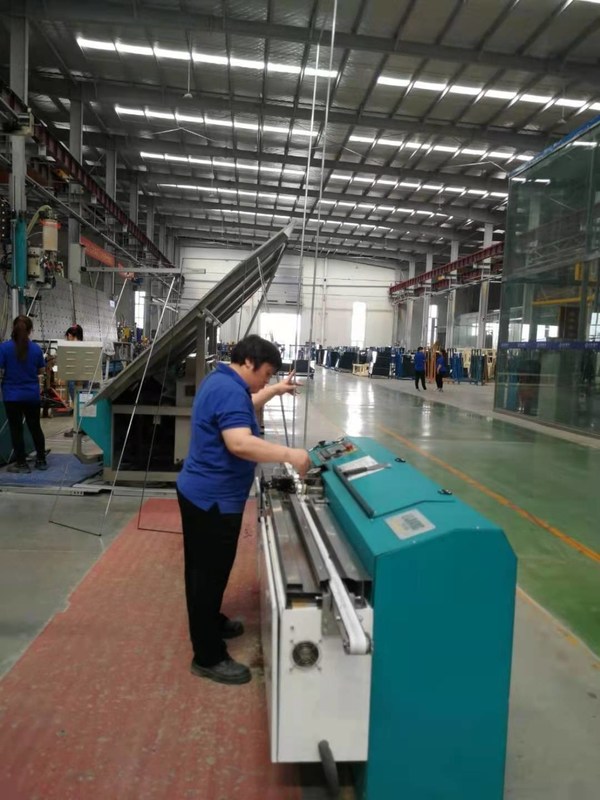

Automatic Butyl extruder machine is a special equipment for the production of making double glazing glass. As one of the important equipment of producing insulating glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is automatic one, easy to operate and convenient to use.
Main performance features:
1. Glue application speed can reach 47m / min
2. It can save the glue consumption compared with the ordinary butyl rubber machine, and the gluing can reach 7g / m
3. Unique design structure, with automatic exhaust function, to ensure continuous glue application
4. Non adhesive synchronous belt is used, and talcum powder is not needed for cleaning
5. The main accessories are German brands. PLC program control, stable performance
6. It is convenient and practical to use movable vertical and horizontal sealant
7. Automatically adjust the width of glue head, and the integrated control of quick opening valve ensures the consistency of double-sided gluing
8. It is convenient to adjust the height of the crossbeam and solve the problem of exposed white effectively and conveniently
9. Touch screen operation, simple and practical
10. Automatically adjust the glue output according to the speed change
12. The hydraulic system imported from Germany is adopted to ensure even and full glue delivery
14. The rubber cylinder adopts pull-up structure, which is convenient for operation
Specification parameters:
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Glue thickness | 0.3-0.5mm |
Glue width | 3.5mm |
Aluminum spacer width | 6A - 27A |
Speed | 5-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5.7KW,50HZ |
Dimension | 2800×700×900mm(L×W×H) |
weight | 650kg |
Electrical parameters :
Name | Original | Brand |
PLC | China | KINCO |
Valve | German | HAWE |
Low voltage electrical apparatus | German | SIEMENS |
Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
Frequency converter | China | KINCO |
Pneumatic components | Taiwan | ARTAC |
Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
Travel light | Japan | OMRON |
Optical fiber | Japan | OMRON |
More details :
•PLC control system, KINCO touch screen interface
•Hydraulic system using German brands
•Alarm system, reminding adding butyl glue
•The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
•Exhaust function
•Short preheating time, improve work efficiency
•Coating shape frames, the roller device can be selected at will
•Fast coating speed, can up to 47m/min
•Stable pressure and even coating
•Saving glue. The amount of glue on both sides can reach 4g / m
Optional function :
This machine with big glue barrel with 200L butyl glue, the new butyl extruder machine will save a lot time of adding glues.
Related products of LIJIANG GLASS
Automatically PLC Controlled Aluminum Spacer Bars Cutting And Bending Machine
Main features of the automatic spacer bending machine :
• Siemens 1200 PLC control system with fast working speed
• 4 groups of storages (2 or 12 groups of storages can be optional)
• Automatically cut and feed aluminum spacers
• Automatically avoid the pins while bending and cutting
• Bend spacer frames continuously
• Aluminum spacers are available in sizes of 6A-27A
• Different bending tools for different sizes of spacers
• Pause and Reset device for handling equipment failures
• Bend aluminum spacer, smooth stainless steel, warm spacer
• Connect to ERP system (Optional)
• USB input function, read the excel format file directly
• Automatically drill holes for filling argon gas (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)
Technical data of spacer bending machine :
Max. bending size | 2000mm*2000mm |
Min. bending size | 250mm*200mm |
Aluminum spacer width | 5.5-27mm |
Dimensional error | ±0.5mm |
Angle error | ±1º |
Processing speed | 17s |
Air supply | ≥0.65MPa |
Total power | AC220/380V 50Hz 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
Electrical parameters of spacer bender machine :
NAME | ORIGIN | BRAND |
PLC | Germany | SIEMENS |
Servo driver | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
Low voltage component | Germany | SIEMENS |
Triplet | Taiwan | AIRTAC |
Cylinder | Taiwan | AIRTAC |
Relay | Japan | OMRON |
Sensor | KOREA | AUTONICS |
Touch screen | Taiwan | WEINVIEW |
Guide | Taiwan | TBI |
Solenoid valve | Taiwan | AIRTAC |
Switch power | Taiwan | TEND |
High quality Insulating Glass warm edge spacers for insulating glass processing and professional spacer bending machine
Warm Adge Spacer with Butyl Sealant for Insulating Glass Processing
Insulating glass warm edge with sound insulation, heat insulation, energy saving, safety, anti-fog and other functions applicable to building curtain wall, windows and doors glass, trains, ships, aircraft, refrigerators.
Compared to the normal spacer bar the adcantage of warm edges
------Can reduce the heat transfer coefficient of the whole window
------Improve the dew resistance of insulating glass
------effectively reduce the possibility of glass self- explosion crack
Declare:
1.Thickness is customized according to requirements
2.The packing quantity of each carton is decided by model, thickness and length
.Rustless, corrosion, high brightness.
.Surface evenly, straightness, and no deformation and dimensional stability.
.Connected by only one straighter, good sealing with long lifetime.
limit deviation of peripheral wall thickness is ±0.025mm.
High strength, toughness, and with continuous bend to any angle of ending equipment aluminum frame.
Well arranged vents.
To ensure that activities of molecular sieve, guarantees and various types of adhesive with excellent adhesion.
Energy saving and environmental protection, low heat transfer coefficient
Three Kinds : All stainless , Stainless+glassfiber , All glassfiber
The color and thickness is varities and it can be customized .
Model | Thickness(mm) | Length(m) |
AmountPer box(m) |
Package dimensions(m) |
9A | 0.2-0.35 | 5M | 1100 | 5×0.16×0.11 |
12A | 0.2-0.35 | 5M | 880 | 5×0.16×0.11 |
14A | 0.2-0.35 | 5M | 770 | 5×0.16×0.11 |
15A | 0.2-0.35 | 5M | 660 | 5×0.16×0.11 |
19A | 0.2-0.35 | 5M | 550 | 5×0.16×0.11 |
20A | 0.2-0.35 | 5M | 490 | 5×0.16×0.11 |
22A | 0.2-0.35 | 5M | 450 | 5×0.16×0.11 |
24A | 0.2-0.35 | 5M | 400 | 5×0.16×0.11 |
27A | 0.2-0.35 | 5M | 350 | 5×0.16×0.11 |
