Electric Vacuum Hoist Lifting Systems Curtain Wall Glass Vacuum Suction Cups Lifters

Description
Name: Cantilever Crane LJXJ300 Max.load: 300kg
Rotated Angle: 90° Upright Height: 3400mm Or 3900mm
Quantity Of Sucker: 2 Or 4 Or 6 Or 8 Suckers Air Pressure: 0.5MPa-0.8MPa
Lifting Stroke: 90° Manual Rotation Gas Source: Gas Source Compressed Air 6-7Mpa
High Light:

Electric Vacuum Hoist Lifting Systems

,

Curtain Wall Vacuum Hoist Lifting Systems

,

Glass Vacuum Suction Cups Lifters

Electric Curtain Wall glass vacuum suction cups lifters on sale
Product Description
Electric Vacuum Hoist Lifting Systems Curtain Wall Glass Vacuum Suction Cups Lifters 0

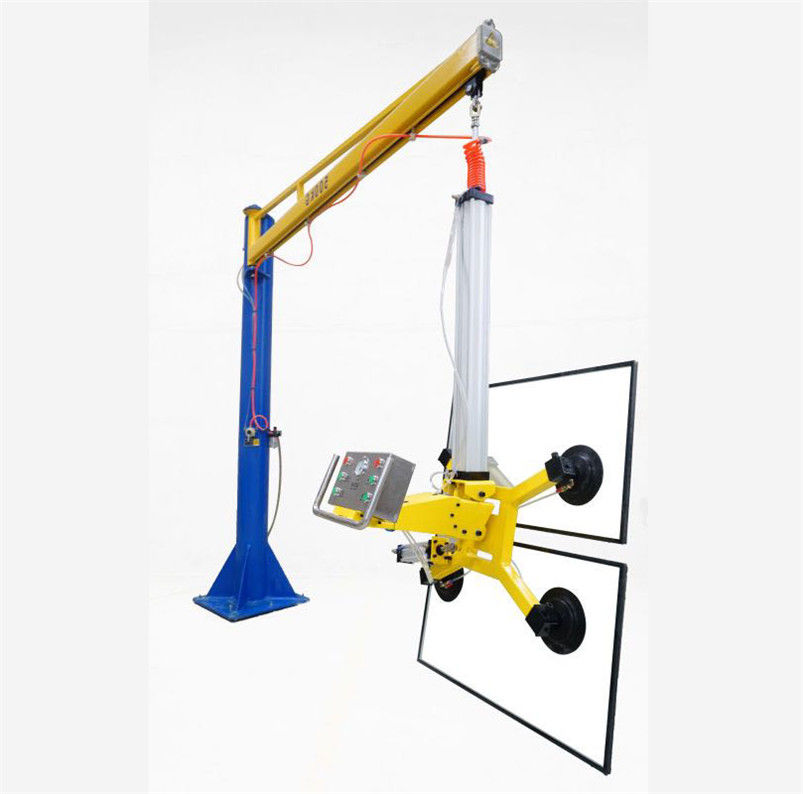

LJXJ300 Glass Loading and Unloading Lifter Cantilever Crane

Pneumatic glass handing manipulator loading and unloading lifter is operated with the aid of the usage of compressed air. The machine does now not use electrical energy and is secure and reliable, handy to operate. It is an indispensable glass coping with device for a present-day glass processing industry. The air flowing thru the vacuum generator motives Vacuum Pressure to suck the glass. A cylinder stroke is acted with the aid of receiving the command sign from the compressed air in an inlet pipe. The system is often used for glass managing work in glass manufacturing facility processing lines, such as grinding, cleaning, tempered, laminated, insulated, etc.

Electric Vacuum Hoist Lifting Systems Curtain Wall Glass Vacuum Suction Cups Lifters 1
Advantages & Features
Electric Vacuum Hoist Lifting Systems Curtain Wall Glass Vacuum Suction Cups Lifters 3
Electric Vacuum Hoist Lifting Systems Curtain Wall Glass Vacuum Suction Cups Lifters 4
Electric Vacuum Hoist Lifting Systems Curtain Wall Glass Vacuum Suction Cups Lifters 5
Electric Vacuum Hoist Lifting Systems Curtain Wall Glass Vacuum Suction Cups Lifters 6
Electric Vacuum Hoist Lifting Systems Curtain Wall Glass Vacuum Suction Cups Lifters 7
Electric Vacuum Hoist Lifting Systems Curtain Wall Glass Vacuum Suction Cups Lifters 8
Electric Vacuum Hoist Lifting Systems Curtain Wall Glass Vacuum Suction Cups Lifters 9




Benefits & Advantages
●Mechanical part:


(1) The complete size of the essential beam of the suction hoist is designed to be 2000mm, and the higher section of the center section is welded and sealed with a plate, and the center section is used as a vacuum accumulator. The airtightness taken a look at is carried out after welding to make certain no leakage. When the gear is all of sudden powered off, it is nevertheless assumed to be capable of reliably adsorb the plates for at least 20 minutes, and will now not reason security accidents such as gear harm (the European CE well-known is to preserve 10 minutes)



(2) This gear is geared up with 6 suction cups with a diameter of 360mm for one-of-a-kind sizes of glass. The role of every suction cup on the beam is adjustable to facilitate the adsorption of a glass of specific sizes.



●Electrical part:



(1) A vacuum stress change and a buzzer alarm unit are hooked up on the vacuum hoist. When the vacuum machine strain does no longer attain the set pressure, or when an electrical failure occurs, the alarm unit will manage the purple warning mild to mild up and the buzzer to sound. , Prompt the operator to deal with it in time.



●Vacuum part:



(1) The suction hoist adopts a German oil-free rotary vane vacuum pump, with a pumping ability of 8m3/h, a massive vacuum diploma of over 85%, electricity-saving, compact and lightweight, no maintenance, etc.;



(2) The entire set of gear is geared up with 6 vacuum suction cups, multi-point adsorption to make sure that the plate can keep an excessive degree for the duration of the managing method besides tilting



(3) The suction cup fabric is nitrile rubber, with a diameter of 360mm, oil (benzene), durable, acid and alkali resistance, and can successfully adsorb with FRP to produce a proper single suction cup level. Theoretical giant suction pressure = nice place (physical product * coefficient) * calculated strain (0.6bar); (0.18*0.18*3.14)*0.6*10000=610.416, which is about 610.4Kg. According to the four instances security factor, the authentic allowable suction strength of the suction cup is 610.4/4=152.6Kg. The complete suction energy of 6 suction cups is 600kg. Note: The vacuum suction pressure noted in the above desk is calculated underneath 60% vacuum degree. Under everyday working conditions, the gadget vacuum diploma can attain extra than 85%



(4) The vacuum stress sensor is made of Japanese Panasonic brand, and the alarm strain stage is set to 60% vacuum;



(5) Each suction cup is geared up with a guide ball valve to manage the opening and closing, which ensures that the equal tools can be utilized to a number of specs of plates;



(6) The higher and decrease components of the sucker rod are geared up with a spring. When the plate is now not flat, the spring acts as a buffer to make the sucker evenly stressed, so as to make sure the security and reliability of the suction cup.



● Overall:



(1) According to the European Union DIN EN 13155 vacuum gadget format for the outside constructing curtain wall set up site.



(2) Horizontal handling, electric-powered flipping, and vertical handling.



(3) Flexible design, can be utilized to the coping with of one-of-a-kind sizes of FRP.







Application

- Insulating Glass Production line, - Installing Glass Curtain Wall System, - Loading and Unloading glass sheet on glass cutting table, - Instaling car windscreen. - Depending on the work site, the pneumatic suction hoist can carry the glass to any position you need with the help of different suspension methods.
Electric Vacuum Hoist Lifting Systems Curtain Wall Glass Vacuum Suction Cups Lifters 10



The Wall-mounted Cantilever Crane
The wall-mounted cantilever crane is used to transport the glass and does no longer occupy the ground area. The cantilever crane can be at once established on the wall, on the column of the manufacturing facility constructing or on the equipment and equipment. The fixing technique is very simple, and the rotating attitude can attain one hundred eighty degrees.
Electric Vacuum Hoist Lifting Systems Curtain Wall Glass Vacuum Suction Cups Lifters 11



The Column Cantilever Crane
The column cantilever crane is used to transport the glass, which can be set up in any work site. It solely occupies the basis region of the column installation, has a small footprint, and can use all feasible space. The most rotatable attitude can attain 270 degrees.
Main Technical Parameter
Item.
Spec.
Safety-absorption
200KG/400kg/600kg/800kg
Performance
Rotation 0-270 degree and lifting 600-1200mm
Quantity and size of sucker
2/4/6/8/12
Working gas source
5-8 Pa
Voltage
DC12V (Built-in 2 batteries for long battery life)
Battery life
It can be used for 3 to 5 days after charging once.(In addition, it can also be connected to the power supply.)
Single suction cup loading
The actual test weighs up to 150kg or more
Length dimension
Control cabinet: 0.3m; Suckers: Optional 1-5m
Width dimension
Suckers: Optional 1-1.5m
Outer size
L1120mm*W660mm*H620mm
The Installation Schematic
Electric Vacuum Hoist Lifting Systems Curtain Wall Glass Vacuum Suction Cups Lifters 12
Electric Vacuum Hoist Lifting Systems Curtain Wall Glass Vacuum Suction Cups Lifters 13
The Size Schematic Diagram of Vacuum Suction Cup Glass Lifter
Electric Vacuum Hoist Lifting Systems Curtain Wall Glass Vacuum Suction Cups Lifters 14
The Size Schematic Diagram of Column Cantilever Crane Glass Lifter

Contact Details
Jinan Lijiang Automation Equipment Co., Ltd.

Contact Person: Miss. Rose

Tel: +86 18678875966

Fax: 86-0531-85960498

Send your inquiry directly to us (0 / 3000)
