5.7Kw Butyl Extruder For Insulating Glass Processing Equipment

5.7Kw Butyl Extruder For Insulating Glass Processing Equipment
5.7Kw Butyl Extruder For Insulating Glass Processing Equipment
5.7Kw Butyl Extruder For Insulating Glass Processing Equipment 5.7Kw Butyl Extruder For Insulating Glass Processing Equipment 5.7Kw Butyl Extruder For Insulating Glass Processing Equipment 5.7Kw Butyl Extruder For Insulating Glass Processing Equipment

Large Image :  5.7Kw Butyl Extruder For Insulating Glass Processing Equipment

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: ONE
Price: USD 13,000 to USD 10,000
Packaging Details: Containers and wooden boxes
Delivery Time: 10 working days
Payment Terms: L/C, T/T
Supply Ability: 10 units per month
Contact Now

5.7Kw Butyl Extruder For Insulating Glass Processing Equipment

Description
Voltage: Can Be Request, 3P 380V 50Hz Power: 5.7Kw, 5.7Kw
Dimension(L*W*H): 2800*700*900 Weight: 650 Kg
Working Speeding: 5-47m
High Light:

5.7Kw Butyl Extruder

,

Insulating Glass Butyl Extruder

,

Butyl Extruder For Insulating Glass

LIJIANG GLASS-FOR WORLD PROCESSING GLASS MANUFACTURE SERVICE
5.7Kw Butyl Extruder For Insulating Glass Processing Equipment 0

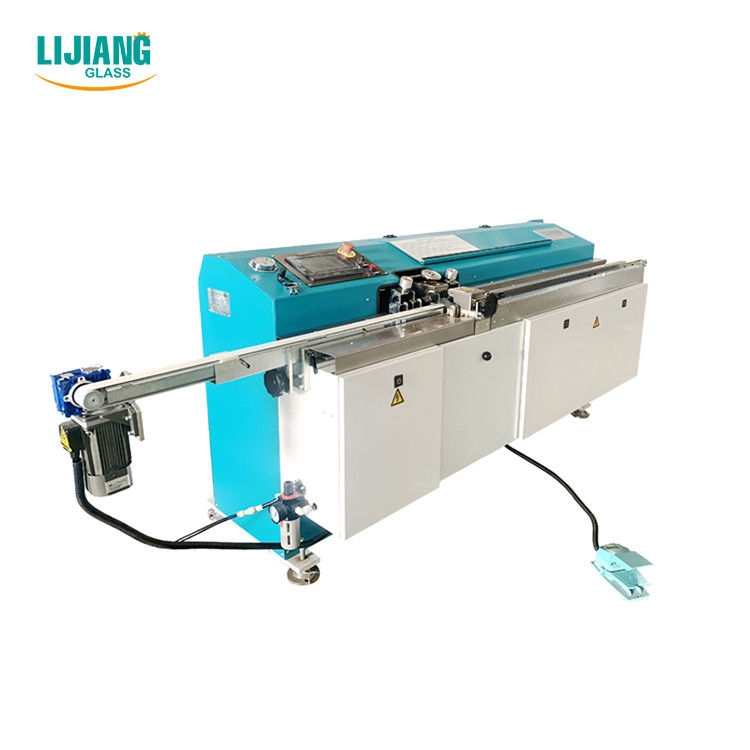

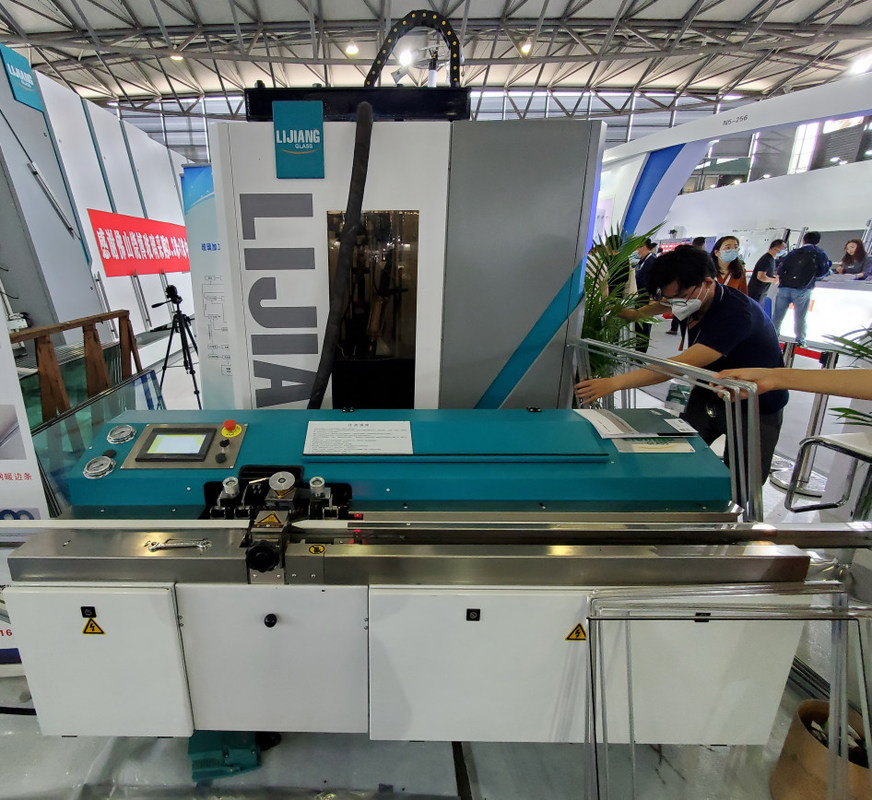

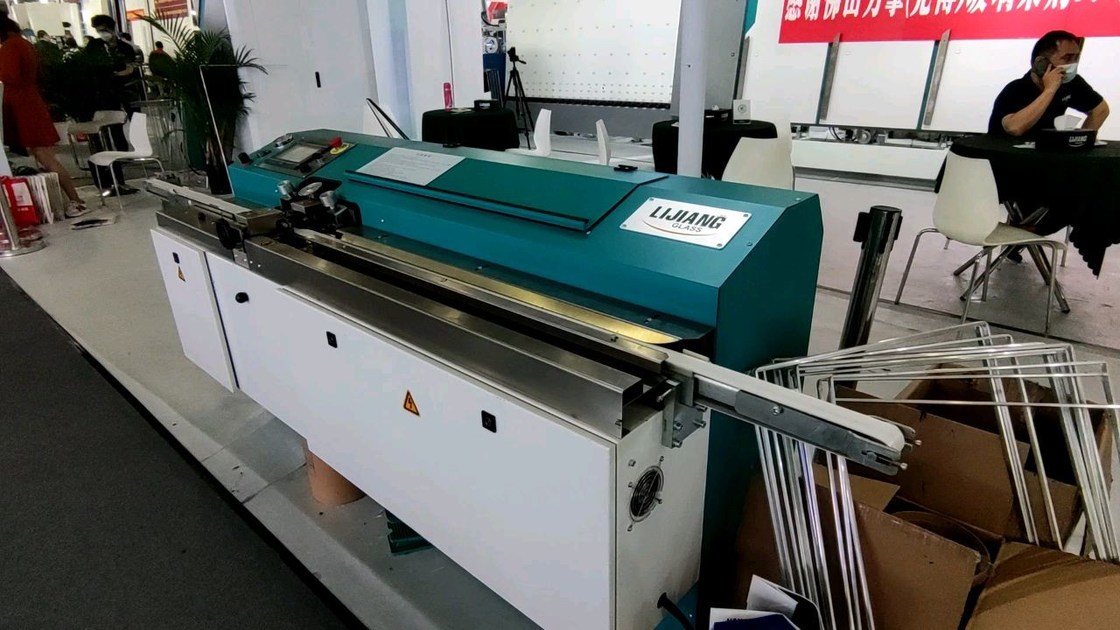

Butyl Extruder Machine LJTB 01


Butyl Extruder Machine LJTB 01 uses large electrical control panel which makes the operation more easier than before. The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now. The butyl extruder is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier. The height of squeezing head can be adjusted automatically according to different
kinds of aluminum spacers. Finally, the butyl extruder has reached the worldwide technology with the characteristic of complete
functions and stable working mode.







Squeeze pressure

Name
Brand
Original
PLC
KINCO
China
Valve
HAWE
German
Low voltage electrical apparatus
SIEMENS
German
Hydraulic and pneumatic supercharging system
MAXIMATOR
German
Frequency converter
KINCO
China
Pneumatic components(cylinder/valve)
ARTAC
Taiwan
Quick exhaust valve/Vacuum generator
SMC
Japan SMC
Travel light
OMRON
Japan
Optical fiber
OMRON
Japan
5.7Kw Butyl Extruder For Insulating Glass Processing Equipment 1
5.7Kw Butyl Extruder For Insulating Glass Processing Equipment 2
5.7Kw Butyl Extruder For Insulating Glass Processing Equipment 3
5.7Kw Butyl Extruder For Insulating Glass Processing Equipment 4

►The Working crossgirder can be easy adjust


5.7Kw Butyl Extruder For Insulating Glass Processing Equipment 5

►Kinco touching screen and Hawei valve from Germany


5.7Kw Butyl Extruder For Insulating Glass Processing Equipment 6

►Automatic to check the aluminum spacer width


5.7Kw Butyl Extruder For Insulating Glass Processing Equipment 7

►Adopt Siemens brand, stable performance
