Automatic Sealing Robot And Silicon Sealant For Insulating Glass

Automatic Sealing Robot And Silicon Sealant For Insulating Glass
Automatic Sealing Robot And Silicon Sealant For Insulating Glass Automatic Sealing Robot And Silicon Sealant For Insulating Glass Automatic Sealing Robot And Silicon Sealant For Insulating Glass Automatic Sealing Robot And Silicon Sealant For Insulating Glass

Large Image :  Automatic Sealing Robot And Silicon Sealant For Insulating Glass

Product Details:
Place of Origin: China
Brand Name: LIijiang Glass
Certification: CE
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 50000.00 - 60000.00
Packaging Details: Container/wooden box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50sets/month
Contact Now

Automatic Sealing Robot And Silicon Sealant For Insulating Glass

Description
Dimension(L*W*H):: 11000*2000*3500mm Max Glass Size:: 2500*4000mm
Power: 12KW
High Light:

Silicon Sealant Automatic Sealing Robot

,

Automatic Sealing Robot For Insulating Glass

,

2500*4000mm Insulating Glass Sealing Robot

Automatic Sealing Robot And Silicon Sealant For Insulating Glass 0

Full Automatic and high-efficienc Silicon Sealing Robot for Insulating Glass Processing


Automatic Sealing Robot And Silicon Sealant For Insulating Glass 1

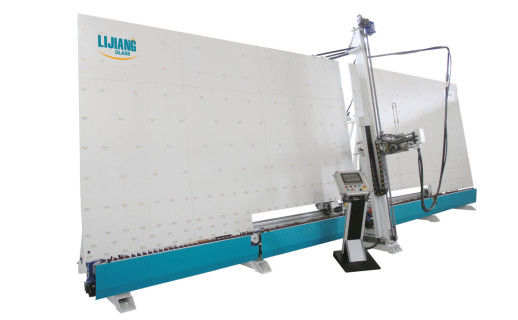

Sealing robot for insulating glass processing LJTJ2540

Automatic Sealing Robot And Silicon Sealant For Insulating Glass 2
Machine Description
This type of machine is a full automatic and high-efficienc sealing robot for insulating glass processing. Automatically measure glass size, glue depth and glue speed with linear adjustment. Single-function parts are equipped with manual functions, easy adjustment.Can coating more than 8 kinds of shaped glass,include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc.
Main Feature
* Can coat many shaped glass(triangle glass,hexagon glass,trapezoidal glass,arc glass,train glass and so on) , stepped glass(option)
* Can coat triple glass by one time
* Fast reacting and volume controlled dosing system for IG glass, 2-component sealant
* The glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner

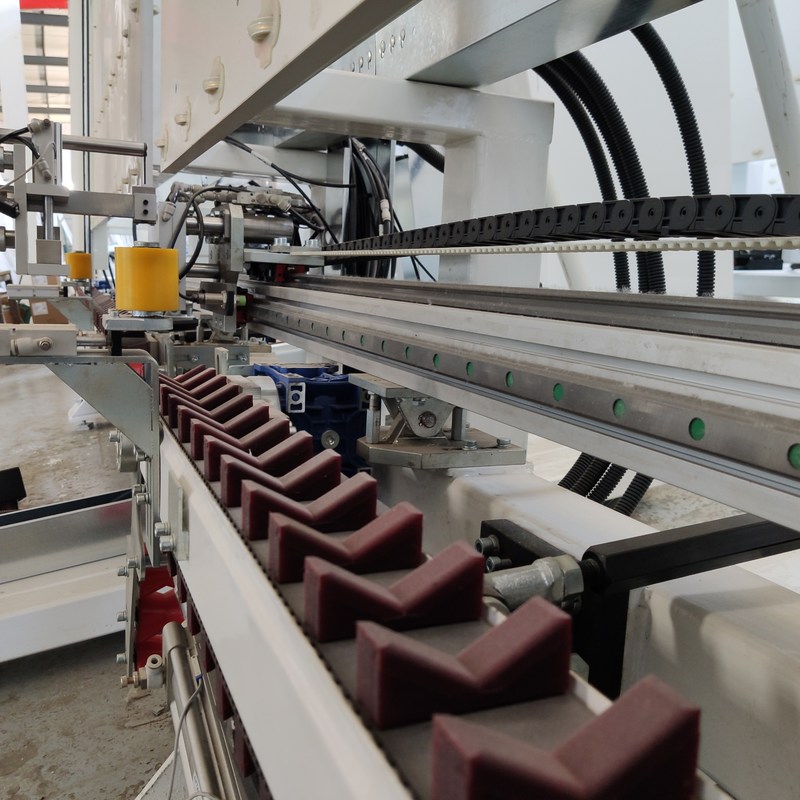

* Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning
* Electric and compressed air switch valve:Ensure electrical automatic switch, stable performance and uniform coating.
* Japan YASKAWA servo motor and CPU,Siemens low-voltage electrical appliances.
* Using two sets of independent sealant supply system( including the mixing device), two kinds of sealants switch in one-key operation easily.
Automatic Sealing Robot And Silicon Sealant For Insulating Glass 3
Technical data
Max. glass size
2500*4000mm (Optional)
Min. glass size
300*300mm
Glass thickness
12-50mm
Working speed
5-40m/min
Air pressure
≥0.6MPa
Squeeze pressure
32MPa
Voltage power
380V 12kw
Overall dimension
11000*2000
Automatic Sealing Robot And Silicon Sealant For Insulating Glass 4
Automatic Sealing Robot And Silicon Sealant For Insulating Glass 5
Automatic Sealing Robot And Silicon Sealant For Insulating Glass 6
Automatic Sealing Robot And Silicon Sealant For Insulating Glass 7
Automatic Sealing Robot And Silicon Sealant For Insulating Glass 8
Automatic Sealing Robot And Silicon Sealant For Insulating Glass 9
Big drum silicone sealant for Insulating glass


Item
Technical Data
1
Appearance
2
Density g/cm3
3
Tack free time/ h
4
Flow, Sag or Slump
Vertical Deposited, mm

Level Deposited
5
Extrusion /S
6
Hardness/Shore A
7
Tensile
Tensile Strength /Mpa
Destroy Area, %
Ultimate Elongation at Break %
8
Heat Aging
Heat Weightlessness
Cracking
Powder
As cured after 14 days at 23±2℃, RH50±5%
Automatic Sealing Robot And Silicon Sealant For Insulating Glass 10
Automatic Sealing Robot And Silicon Sealant For Insulating Glass 11
About US
Kation-Tech specializes in R&D,Founded in 2009, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions.We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world.
Automatic Sealing Robot And Silicon Sealant For Insulating Glass 12
Automatic Sealing Robot And Silicon Sealant For Insulating Glass 13
Automatic Sealing Robot And Silicon Sealant For Insulating Glass 14
Automatic Sealing Robot And Silicon Sealant For Insulating Glass 15
Automatic Sealing Robot And Silicon Sealant For Insulating Glass 16
Automatic Sealing Robot And Silicon Sealant For Insulating Glass 17
