Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils

Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils
Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils
Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils

Large Image :  Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils

Product Details:
Place of Origin: China
Brand Name: Kation
Certification: CE
Model Number: KationBS001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 100000m/month

Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils

Description
Name: Warm Edge Spacer With Molecualr And Butyl Advantage: Warm Edge Thchnolgy
Size: Can Be Request Usage: Double Insulating Glass
High Light:

Double Glass Insulating Glass Machine

,

Double Glass Warm Edge Spacer

,

Warm Edge Spacer With Molecualr

Warm Edge Spacer With Molecualr And Butyl DGU Materils for double glass





Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils 0

Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils 1









Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils 2





Other product of LIJIANG GLASS

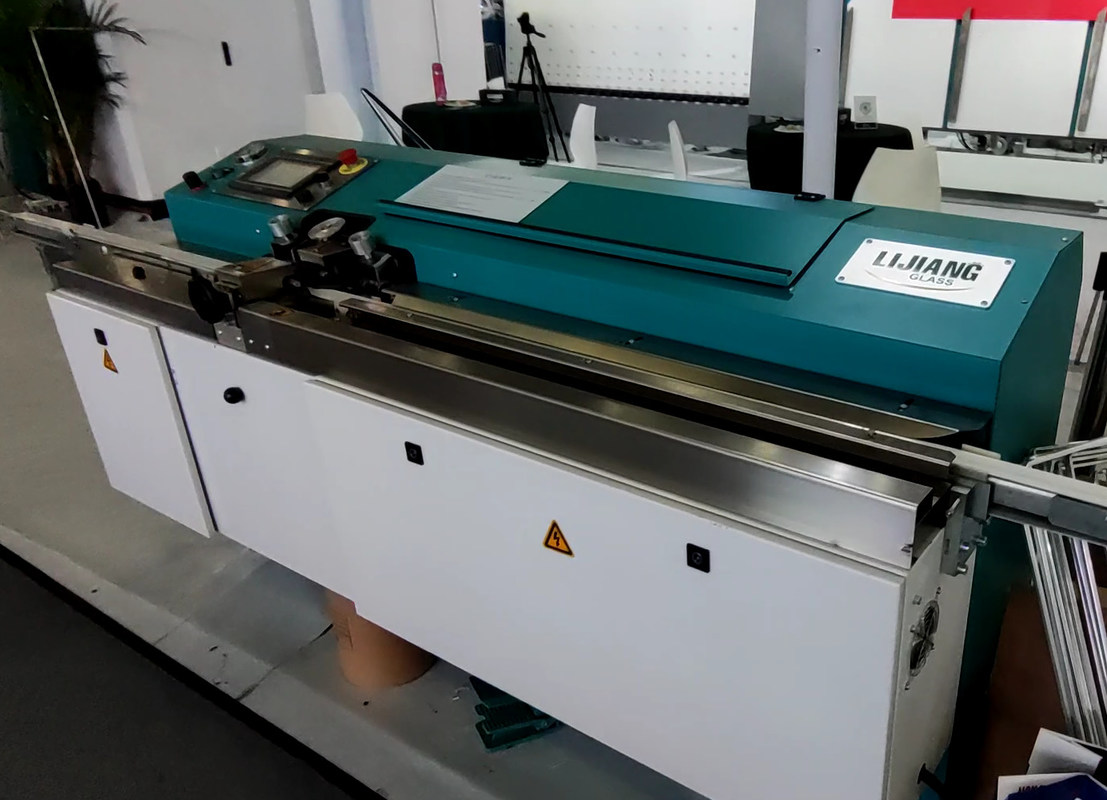

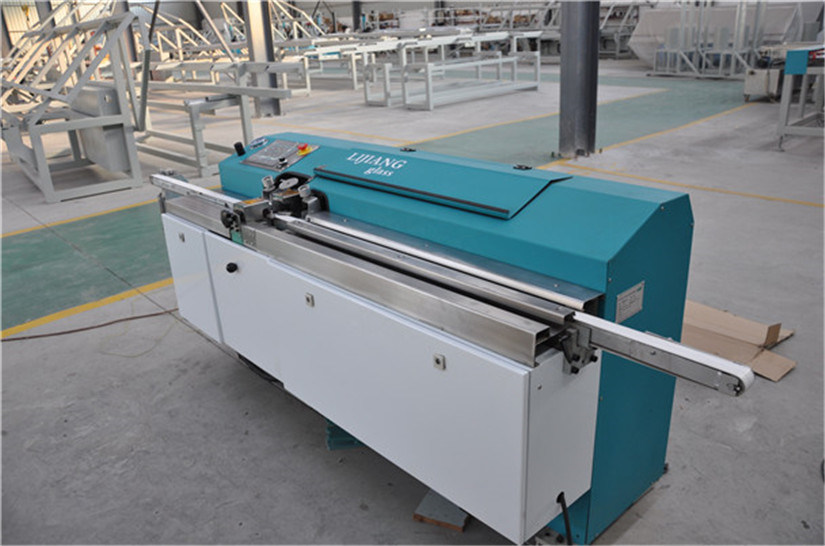

Automatic Butyl Machine With CE Hot Melt Butyl Extruder Equipment for insulating processing

Aotomatic Bulyl Extruder Machine with high quolity

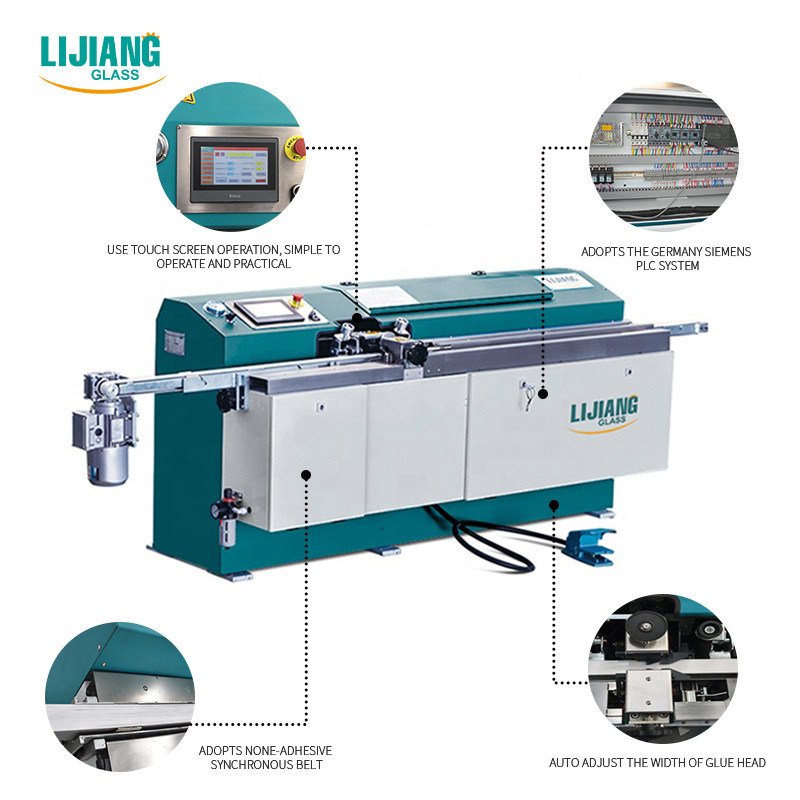

1. Touch-screen operation, simple and practical

2. Auto-measure the width of spacer, nozzle automatic positioning

3. Auto-centering and auto-clamping

4. The bigger wheel help to coat the arc frame

5. Coating nuzzle is Teflon brand ,non-stick coating

6. The coating speed is up to 47m/min,saving materials up to 30%,( 5g/m)



7. The crossbeam height is easy to adjust,we can control the height of butyl

8. The special part controls both sides of nozzle opening and closing at the same time

9. Alarm device when use out of butyl and easy to load butyl

10. Pre-heading function,set a regular time before working time

11. Glue cylinder Adopt the upright structure, easy to change butyl.

12. Automatic filter function Automatically filter debris, keep spreading evenly.



13. Hydralic and Pneumatic supercharging pump ,German MAXIMATOR brand

14. Pressure release valve German HAWE brand ,high pressure resistance ,keep the butyl well proportioned

15. Pneumatic component Taiwan Airtac

16. Japan OMROM Relay



Tech parameters of Automatic hot melt Extruder Machine



Squeeze pressure 10-18MPa
Temperature 110~140℃
Glue thickness 0.3-0.5mm
Glue width 3.5mm
Aluminum spacer width 5.5-26.5mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 750kg



Name Brand
Pressure release Valve German HAWE
Low voltage electrical apparatus German SIEMENS
Hydraulic and pneumatic supercharging system German MAXIMATOR
Quick exhaust valve/Vacuum generator Japan SMC
Pneumatic components(cylinder/valve) Taiwan ARTAC
Travel light Japan OMRON
Relay Japan OMRON
Optical fiber Japan OMRON
PLC KINCO
Frequency converter KINCO





Technical data

Max.bending size 2000mm*2000mm (2500mm*2500mm)
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm

Electrical parameters

NAME BRAND NAME BRAND
PLC GERMAN SIEMENS Triplet Taiwan AIRTAC
Low voltage electrical apparatus GERMAN SIEMENS Cylinder Taiwan AIRTAC
Servo motor JAPAN FUJI Solenoid valve Taiwan AIRTAC
Servo driver JAPAN FUJI Switch power Taiwan TEND
Relay JAPAN OMRON TOUCH SCREEN Taiwan WEINVIEW
Sensor KOREA AUTONICS GUIDE Taiwan TBI



Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils 3



l 1*1m spacer frame was bend w 20s.

The error of spacer frame angle is within withib 10 um ,1mm=100 um

Size error 1mm

Shaped





l Can bend aluminum spacer /technoform /Alupro /thermix/

l Spacer automatically connect and cut.

l Machine automatically stop when the spacer use up.

l Support continuous bending , automatically avoid spacer connection while bending and cutting

l Automatically connect the spacer -connector



l Remote control function

l USB input function ,it can read the excel data directly

l Spare parts of all machine have ID code ,convenient for after-sale service



l Heavy duty connectors ,convenience and safety for installation and debugging

l Magnetic valve use Taiwan Airtac

l German Siemens plc control systerm

l Japan Fuji servo control system



l 12 storage spacer units (option)

l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)

(Stainless steel and warm edge spacer can not exist at one time )

l Drill hole for gas filling(option)

l Spacer inkjet printing ,various color is available for company logo or production date(option)

l Laber printing (option)

l Scanner scan two-dimension code ,bar code (option)

l Separate Pressing Wheel for arc frame, more accurate than the bending tool

Especially for Hexagon and Octagon frame (optional )

l ERP (optional)





Remark : Bending tool

*For rectangle frame there have three size (6A/9A/12A)was complimentary

Other size need pay extra 42$/per size

* For Circle ,Hexagon and Octagon frame , 300$/per size

Main technical parameter

Max.bending size 2000*2000mm
Min.bending size 250*200mm
Aluminum spacer width 6-27A
Arc Radius 60°-150°
6A-16A
Dimensional error: ≤±0.5mm
Angle error ≤±1º
1m*1m aluminum spacer 17s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm

Spacer Bending machine main components

NAME BRAND
PLC GERMAN SIEMENS
Low voltage electrical apparatus GERMAN SIEMENS
Servo motor GERMAN SIEMENS
Servo driver GERMAN SIEMENS
Relay JAPAN OMRON
Triplet Taiwan AIRTAC
Cylinder Taiwan AIRTAC
TOUCH SCREEN Taiwan WEINVIEW
Switch power Taiwan TEND
GUIDE Taiwan TBI
Solenoid valve Taiwan AIRTAC
Sensor KOREA AUTONICS

Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils 4Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils 5Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils 6Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils 7Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils 8Double Glass Insulating Glass Machine Warm Edge Spacer With Molecualr And Butyl DGU Materils 9
