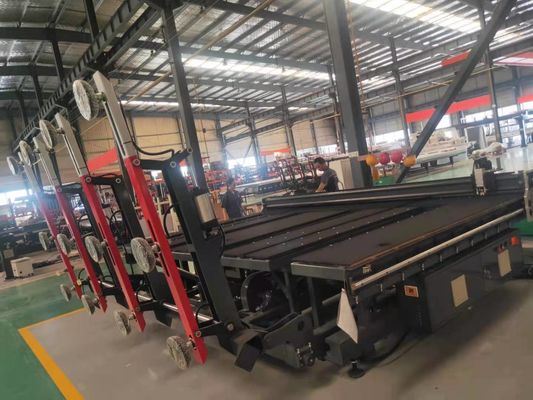

Fully Automatic All In One Glass Cutting Machine With The Photoelectric Position

Fully Automatic All In One Glass Cutting Machine With The Photoelectric Position
Fully Automatic All In One Glass Cutting Machine With The Photoelectric Position
Fully Automatic All In One Glass Cutting Machine With The Photoelectric Position Fully Automatic All In One Glass Cutting Machine With The Photoelectric Position

Large Image :  Fully Automatic All In One Glass Cutting Machine With The Photoelectric Position

Product Details:
Place of Origin: Jinan City, Shandong Province, China
Brand Name: Jinan LIJIANG Glass
Certification: CE & ISO9000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable Price
Packaging Details: Wooden Cases Package and Container Transfer
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 sets per month

Fully Automatic All In One Glass Cutting Machine With The Photoelectric Position

Description
Product Name: Cnc Glass Cutting Machine Max Loading Size: 2600 Mm*2000 Mm
Glass Thickness: 3-19 Mm Conveying Speed: 0-25 M/min
Working Absorption Depth: 700 Mm Loading Type: Double Side Loading
After Warranty Service: Video Technical Support Color: Customers' Requirement
High Light:

All In One Glass Cutting Machine

,

Photoelectric Position Glass Cutting Machine

,

Photoelectric Position glass cutting table

Fully Automatic All-in-one Glass Cutting Machine with the Photoelectric Position
Product Description
Fully Automatic All In One Glass Cutting Machine With The Photoelectric Position 0


LJSCLM CNC Automatic Glass Cutting Machine glass slicing Line



Intelligent Automatic High Speed Glass Cutting Line has been comprehensively upgraded via capability of introduction of European main technology, world latest tech and manner to take away the inadequate performances, incomplete features and unstable operation from home glass loader, moreover,through the specific racks, slide-rails, servo motors and pneumatic elements, it achieves the long-term steady accuracy and quickly strolling with the most recent American Galil manipulate system, it aspects even quicker operation, greater safety, higher efficiency, extra steadiness and higher accuracy: with the photoelectric positioning, it enables thesimple and specific operation and distinguished labor saving

Fully Automatic All In One Glass Cutting Machine With The Photoelectric Position 1
Air-floated Breaking Table
It is mainly composed of four parts: frame mechanism, splitting mechanism, pneumatic control system and electrical control system.
* Sheet size: Min size: 1500 *1200mm (Single Side loading)
* Max loading size: 2600 x 2000 mm
* Glass sheet thickness: 3 ~ 19mm
* Working absorption depth: 700 mm
* X-axis walking speed: 5-25m/min (adjustable)
* Y-axis walking speed: 8-12 m/min (adjustable)
* Conveying speed: 5-25m/min (adjustable)
* Number of flip arms: 8 arms (double side loading)
* Number of single arm suckers: three
* Loading type: Double side loading
* Working cycle: 45S (15S for each additional position)
* Installation power supply: AC380V/50HZ (special circumstances can be adjusted according to customer requirements)
* Installation total power: 5-10 kw
* Compressed air: 0.6-0.8 Mpa;
* Vacuum: -50-99 Kpa (adjustable according to glass thickness)
* Working table height: 900 + 20mm
* Machine size: 4650 x 2980 x 900mm
Fully Automatic All In One Glass Cutting Machine With The Photoelectric Position 2
Fully automatic glass cutting machine
Its working principle is to convey the cut glass by conveying belt to worktable, automatically input the position of glass through photoelectric scanning system, and then the cutting head with diamond wheel on the cutter holder moves along X and Y directions respectively by program control,cutc the sheet. CNC motion controller is used in the control part of the machine, and advanced AC servo motor is used in the drive part.
* Max size2600X2000mm
* Thickness:3~19mm
* Cutting accuracy:±15
* Cutting accuracy of special-shaped glass:±20
* Cutting speed:0-200m/min
* Conveying speed:0-25m/min
* Machine size:9600X2800X900±20mm
* Working table height:900mm±20mm
* Weight:2600kg
* Total power of equipment:5-8kw
Fully Automatic All In One Glass Cutting Machine With The Photoelectric Position 3
Fully automatic glass loading table
It is more often than not used for computerized glass loading. After inserting the glass in the particular function and giving the sign of loading, the large arm turns up about ninety five levels thru the overturning mechanism, and the complete desktop begins to pass forward. When the induction gadget on the small arm touches the glass, the complete computing device stops on foot and the glass is sucked with the aid of the suction cup via the vacuum gadget on the glass,small arm lifting motor lifts the glass upward and backward about eighty mm. The strolling motor retreats and the massive arm falls down. When the bing arm is in place, the suction cup underneath the glass starts offevolved to blow. When the small arm falls down, the glass falls on the conveyor wheel. Finally, the glass is conveyed to the reducing desk via the conveyor wheel.
* Breaking bar: 1+1 type
* Table Size: 9600x2800x900mm
* Glass thickness:3-19mm
* Power: 4kw
* Table height: 900 + 20mm
Main Technical Parameter
Item.
Spec.
Max. glass cutting size
2800*4200mm
Glass thickness
2-255mm
Cutting speed(m/min)
0-200
Accurcy(mm/m)
≤±0.20
Breaking bar(pcs)
1+2
Total power
3P 380V 50Hz
Dimension
14200*3750*900 ±20mm
Total weight
3700KG
