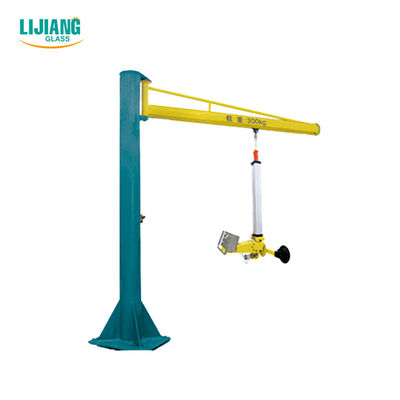

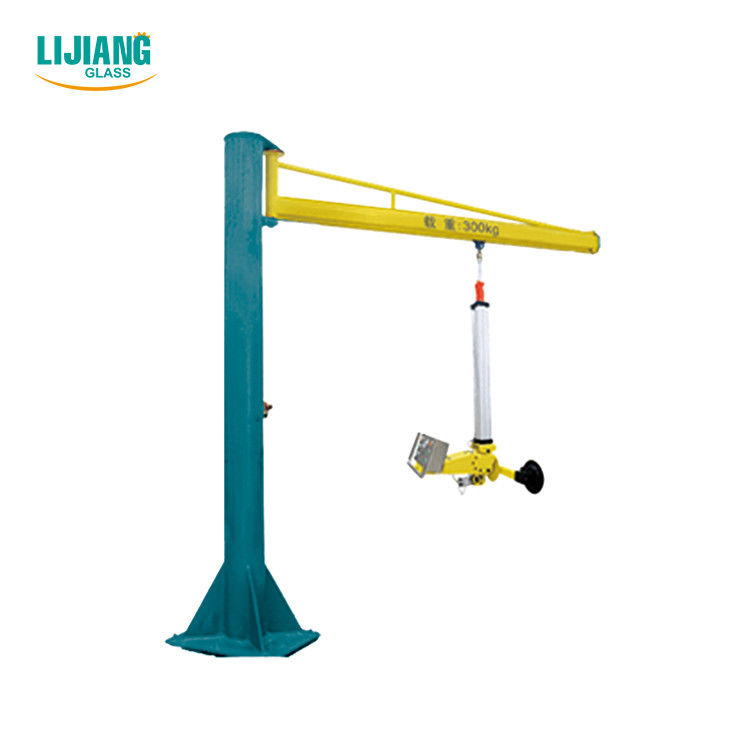

Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing

Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing
Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing

Large Image :  Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJXJ1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 20set/month

Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing

Description
Name: Glass Cantilever Crane Advantage: With Lifting Sucker
Max Lifting Weight: 1000KG Suction Cups: 4 Pieces
Sliding Method: Manual Air Control Parts: Airtac
High Light:

Four Suction Cup Cantilever Crane

,

1000KG Cantilever Crane

,

Hollow Glass Cantilever Crane

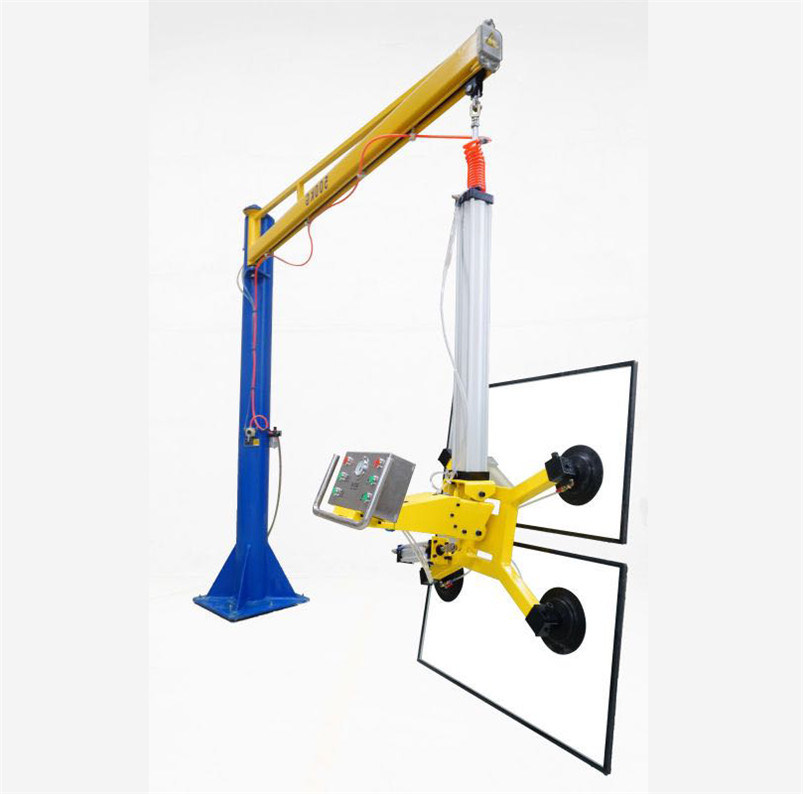

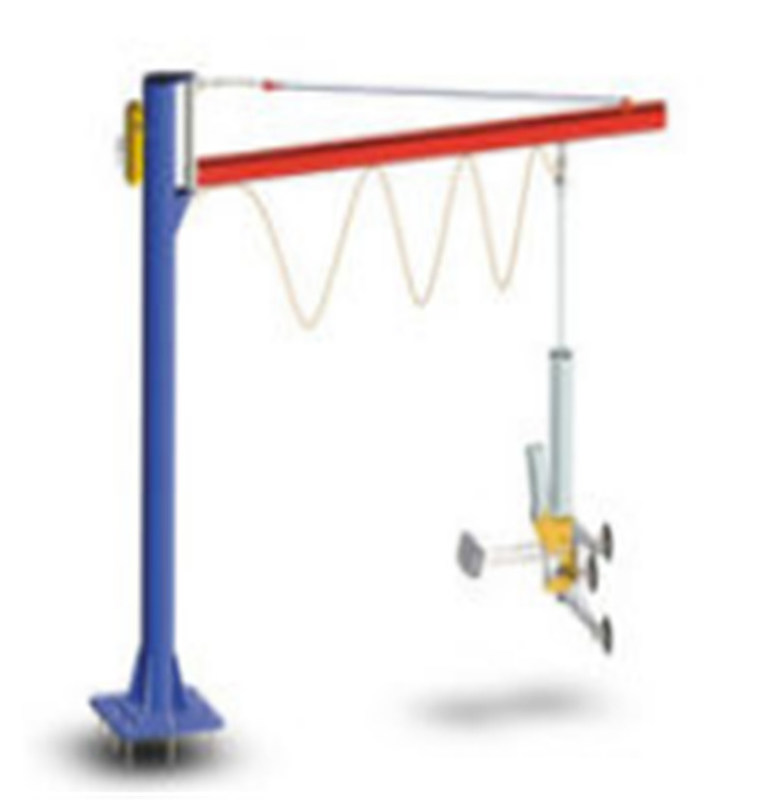

Four suction cup lifting cantilever crane for 1000KG hollow glass processing use to glass processing and install



Main Features of cantilever crane


Optional DC charging vacuum pump, equipped with battery device.

-The maximum load capacity is 1000 kg (10 vacuum cups), the largest. Glass size up to 8m (up to 3.9m with column lifter)

-Suitable for high temperature glass



Glass Cantilever Crane with lifting sucker



1. This vacuum glass elevator is used to transport hollow glass plates.
2. This glass lifter can lift 1000kg glass plate
3. Equipped with 5 suction cups. But the suction cup can be installed according to customer needs.
4. The equipment is stable, easy to use and safe.
5. The vacuum cleaner is equipped with warning lights. When the power is cut or the vacuum leaks, it will immediately send out light and sound signals to warn the operator to carry out emergency operations.



Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing 0

Parameters:

Max Glass weight 800KG
Rotation angle

Rotate 180

Left and Right

Up and Down

Suction cups  4 Pieces
Cup Materials Silicone
Sliding method Manual
Column height 4 meters Gas storage function
Arm length 4 meters
Air Control parts Airtac


Useing For

- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.



Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing 1

Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing 2

Product Name
glass crane
Dimension
(L*W*H)

900*730*240mm
Color
Yellow
Power system
DC12V
Charger
AC110/220V
Rotate degree
360° (manual)
Flip degree
90° (manual)
Usage
Glass lifting
Sucker quantity
4
Sucker size
φ300mm



Other products of LIJIANG GLASS

Automatic Aluminum Spacer Bending Machine LJZW2020

Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing 3

Main feature

• Adopt Siemens PLC control system, touch screen interface

• Japan FUJI CNC servo control system

• Four storage units the size of a hold

• Automatic cutting and feeding of aluminum gaskets

• Auxiliary function of bending adjustment of the large aluminum frame

• Aluminum gaskets are available in various sizes and sizes

• Spatial frame with continuous curved shape

• Separate protective plate on the outside of the bender

• Automatically avoid connection when bending and cutting

• Pause and reset device to manage equipment failures



• USB input function, direct reading of files in Excel format, etc. (optional)

• Interval printing code function (optional)

• Printing label sticker function (optional)

• Can be folded joint in aluminum and stainless steel (optional)

• Automatically drill gas holes (optional)

• Connect to the ERP system (optional)



Technical data

Max. bending size 2000mm*2000mm (2500*2500mm)
Min. bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm



Electrical parameters

NAME BRAND NAME BRAND
PLC GERMAN SIEMENS Triplet Taiwan AIRTAC
Low voltage electrical apparatus GERMAN SIEMENS Cylinder Taiwan AIRTAC
Servo motor JAPAN FUJI Solenoid valve Taiwan AIRTAC
Servo driver JAPAN FUJI Switch power Taiwan TEND
Relay JAPAN OMRON TOUCH SCREEN Taiwan WEINVIEW
Sensor KOREA AUTONICS GUIDE Taiwan TBI


Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing 4

LJWBQJ-2500A Glass Washing Machine

Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing 5



1, USES:

glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.

2, Structural characteristics:

  • Aluminum alloy assembly structure, no scrap concept, permanent use,
    High efficiency, energy saving 70% efficiency;

    2. The remaining sheet metal parts are all made of advanced mechanical spraying

    Paint or powder

    3. The rubber roller is made of vulcanized rubber and stainless steel shaft;

    4. The washing part in contact with water is made of stainless steel;

    5. In the cleaning department, the wind crew lifts up and down as a whole, the maximum lift is 350mm, which is convenient for cleaning and maintenance

    6. Three pairs of brushes (Ø150mm) with stainless steel shaft configuration (low-e glass, flat coated glass and sunscreen coated glass can be cleaned without damaging the coated surface);

    7. Two pairs of specially configured stainless steel aluminum alloy air knives, strong wind, good air drying effect, with heating system (with temperature control device, opening and closing optional);

    8. The fan is equipped with an air filter in the air inlet room, which has a large air volume and a good air-drying effect. The entire fan cover is installed on the upper part of the workshop, with an air filter on the side for easy inspection and cleaning

    9. The main drive is gear transmission, frequency conversion speed regulation, digital display, and the washing section brush roller rotation is driven by independent belts of the upper and lower motors respectively. The frequency conversion speed regulation is stable, and the service life is long, realizing high-demand cleaning of special glass;

    10. Mechanical control buttons, digital display of washing machine, simple operation, simple operation and convenient maintenance

    11. The water tank of the washing machine is installed outside, which is convenient for cleaning the water tank, changing the water, and checking the washing effect of the washing machine to be cleaner.

    12. Optional PLC control, touch screen. It is convenient for workers to use and maintain, and can be connected to any edging machine manufacturer without gaps. (If necessary, it can be purchased separately)

Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing 6

3, Technical parameters:

1. Maximum glass width: 2500mm (effective maximum: 2650mm)

2. Minimum glass specification: 400mm×400mm (limited to single row on left and right sides)

3. Glass thickness: 3mm-25mm (digital display)

4. Speed range: glass thickness within 3-25mm Vmax=1-12m/min

5. Main drive, brush speed regulation method: frequency control

6. Table height :900±25mm



Maximum glass width 2500mm (effective maximum: 2650mm)
Minimum glass specification 400mm×400mm (limited to single row on left and right sides)
Glass thickness 3mm-25mm (digital display)
Speed range glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method frequency control
Table height 900±25mm
Total power 42KW(water-bearing wind heating: 15KW)
Water source self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
Power source 380V 50Hz
Dimensions (length × width × height) approximately 6260*4800*3100
Weight 3940kg

Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing 7

Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing 8Four Suction Cup Lifting Cantilever Crane For 1000KG Hollow Glass Processing 9
