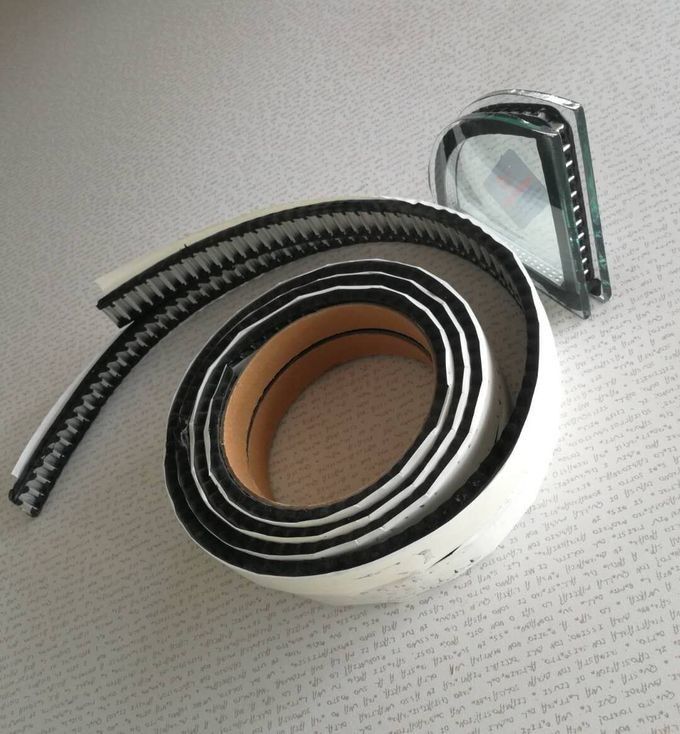

Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing

Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing
Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing

Large Image :  Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing

Product Details:
Place of Origin: China
Brand Name: Kation
Certification: CE
Model Number: KationBS001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 100000m/month

Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing

Description
Name: Butyl Aluminum Sapcer For Double Glass Advantage: Warm Edge Thchnolgy
Size: Can Be Request Usage: Double Insulating Glass
High Light:

Butyl Sealing Glass Spacer Bar

,

Insulating Glass Spacer Bar

,

Insulating Glass Machine Spacer Bar

Butyl sealing Spacer Bar For insulating glass machine processing



New Generation Compound Aluminium Spacer Space Bar For Hollow Glass



Aluminum compound sealing spacer for IG is a kind of bold innovation based on LIJIANG  spacer, perfect combination of aluminum strip and spacer bringing more beautiful spacer and stronger support, together with unique patent design and excellent quality topping the world, making LIJIANG  spacer the ideal choice for making insulating glass.

Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 0

Keywords: warm edge spacer.flexible spacer bar.rubber spacer with aluminum

Use for Manufacturing building doors and windows,Train,Bus,insulating glass ,insulating door, shutter,Refrigeration equipment and so on.


Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 1Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 2Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 3

Features:

1.The glass looks more beautiful with the aluminum strip on surface, and the appearance meeting the requirements for aluminum-frame type insulating glass, significantly improving its level.

2.The ageing-resistant performance remarkably enhances. The aluminum strip on surface effectively resists the ultraviolet irradiation, reinforcing the ageing-resistant performance of the spacer to a large extent.

3.Simple operation makes higher production efficiency.Adopting LIJIANG  spacer can take the place of complex processing procedure of traditional aluminum-frame type insulating glass.

Raw material options
No. Material name Material producing area composition Technical requirements
1 Inner sealant Butyl rubber China butyl sealant. Calcium powder,polyisobutylene Q/PHX001-2014
2 External sealant Polymer adhesive Germany BASF polyisobutylene,butyl sealant, Calcium GB/T 19187-2003
3 Aluninum strip 3003 aluminum alloy China AL-Mn GB/T 3190 1996 EN AW 3003/AlMnlCu EN 573 3-1994
4 Aluminum foil film Aluninum foil film China Aluainum foil membrane GB/T 28118-2011
5 Molecular seive 3A nolecular sieve China 2/3K20•1/3Na20 •Al203 •2Si02 •9/2H20 GB/T 10504 2017
6 heat-insulating film PVC China PVC GB3830-83

Application:

  1. can be used independently for sealing, no need secondary seal.
  2.  can also be coated with single-component hot-melt adhesive or polysulfide adhesive from the outside of the strip to enhance its structural performance (compatibility testing is required).

Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 4



FAQ:

Q1: Are you a factory or trading company?
A: We are a group company included glass machinery factory glass material factory and trading company, and we are professinal manufacture who produces glass machine and materials in China.

Q2: Where is your factory located?
A: Our factory is located in Jinan City, Shandong Province, China.

Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, the samples are free of charge, but the customers have to pay the courier cost.



Q4: Can you make the product according to my design or original sample?
A: Sure, we have a rich experience of professional and technical staff who will make the most suitable and satisfied designs for you.



Q5. How to ensure product quality?
A: We have 100% inspection during production, you (or your representatives) also can come to inspect the goods before delivery from our factory.



Q6: How do you make our business long-term and good relationship?
A: We will always keep the best quality product and the most competitive price to ensure our clients the best interests. Also we will regard you as our good friend in life and a reliable partner in business cooperation.



Other product of LIJIANG GLASS


Automatic Butyl Machine With CE Hot Melt Butyl Extruder Equipment for insulating processing

Aotomatic Bulyl Extruder Machine with high quolity

Application



PLC control system,touch screen interface

Automatically adjust the amount of glue according to different speeds

Automatically identify the width of aluminum bar,accordingly glue nuzzle can adjust automatically.

Hydraulic systerm uses German components to ensurethat the glue is even and full

Fast preheat,improve work efficiency

with preheating function

With exhaust and inflatable function,improve coating quality and asve time for feeding glue

Quickly coating speed,can up to 47m/min

Squeeze pressure:10-18MPa

Temperature:110-140℃

Aluminumspacerwidth:6A-27A

Speed:5-47m/min

Diameter of butyl cylinder:200mm

Air supply:0.4㎡/min

Air pressure:>0.6Mpa

Total power:380V,5.7KW,50HZ

Dimension:2800*700*900mm

Weight:650kg

Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 5Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 6Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 7

Tech parameters of Automatic hot melt Extruder Machine



Squeeze pressure 10-18MPa
Temperature 110~140℃
Glue thickness 0.3-0.5mm
Glue width 3.5mm
Aluminum spacer width 5.5-26.5mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 750kg







Equipment details of Automatic Butyl Extruder Insulating Glass machine



Germany Siemens parts



Butyl extruder machine Adopt German brand Siemens PLC, stable performance.

Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 8

KINCO Touch Screen



Use toubh screen operation ,simple trial,Clear interface, Simple operation, Smart touch screen,Updated programming.

Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 9





Germany HAVE Valve



High speed butyl extruder machine Adopt Germany’s Harvey valve, more stable performance.

Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 10



Alarm system



Adopt Automatically alarm system, reminding adding butyl.

Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 11



Glue cylinder

The rubber cylinder adopt the pull-up structure, which is convenient for changing butyl.

Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 12



Germany Maximator Cylinder

Super charging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 13

Adjust the glue putput automatically according to the speed change



The height adjustment of beam is convenient,effective to solve the provlem of white line

Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 14

Other product of LIJIANG GLASS





Spacer Bending Machine With Aluminum Bars And Warm Bars

Application

The full automatic spacer bending machine is used for making frames ( or other materials) for insulating glass, which replaces the traditional fabrication technology. The Automatic Spacer Bending Machine With Aluminum Bars And Warm Bars can make a variety of convex polygonal aluminum frames by one aluminum strip in one time. The bending machine is available to bend aluminum bars, stainless steel bars, warm bars and thermex and so on. Also on the bending mahcine, also contains printing code , printing label , drilling holes and USB, machine hand for support big frame

Equipment details

  • Adopt Siemens PLC control system, touch screen interface
  • Japan FUJI CNC servo control system
  • Four spacer size storage units
  • Aluminum spacers are available in different sizes and sizes
  • Automatically cut and feed aluminum spacers
  • Bend shaped spacer frames continuously
  • Automatically avoid the connecting corner while bending and cutting
  • The special machine hand device is used to bend big spacer frame
  • Heavy duty connectors is convenience and safety for installation and debugging
  • Taiwan Airtac Magnetic valve; German Siemens PLC control system; Japan Fuji servo control system.
  • Spare parts of all machine have ID codes.
  • Precise bending effect, corner error less than 0.1mm.

Leading Technology

  • Spacer printing code function (Optional)
  • Automatic drill gas filling hole (Optional)
  • Printing label sticker function (Optional)
  • USB input function, read the excel format file directly etc (Optional)
  • Connect to ERP system (Optional)
  • Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer) and stainless steel ( Optional) and so on.
  • We have the special soft system which could avoid the 120mm to reduce waste. For example, if the length of the gusset is 60mm, when the program calculates the right angle, there is a gusset. When you start to bend the rectangular frame, you need firstly transport 120mm, then cut 120mm, and then step on the pedal to bend frame, so you will waste the 120mm.

Technical data

Max.bending size 2000mm*2000mm (2500mm*2500mm)
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm

Electrical parameters

NAME BRAND NAME BRAND
PLC GERMAN SIEMENS Triplet Taiwan AIRTAC
Low voltage electrical apparatus GERMAN SIEMENS Cylinder Taiwan AIRTAC
Servo motor JAPAN FUJI Solenoid valve Taiwan AIRTAC
Servo driver JAPAN FUJI Switch power Taiwan TEND
Relay JAPAN OMRON TOUCH SCREEN Taiwan WEINVIEW
Sensor KOREA AUTONICS GUIDE Taiwan TBI



Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 15Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 16Butyl Sealing Glass Spacer Bar For Insulating Glass Machine Processing 17
