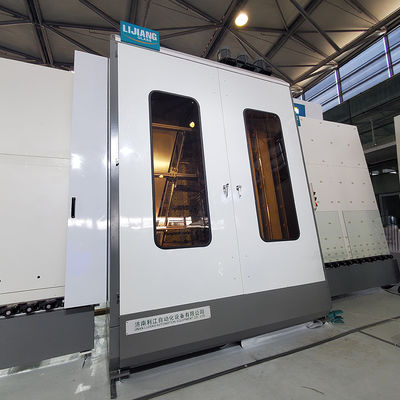

Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function

Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function

Large Image :  Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJBQX2025
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: $35,000 to $28,000
Packaging Details: container
Delivery Time: Within 14 working days
Payment Terms: L/C, T/T
Supply Ability: 11 units per month
Contact Now

Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function

Description
Voltage: 380V Power: 31kw
Weight: 1000 Kg Marketing Type: New Product 2020
Glass Thickness: 3-15mm
High Light:

Drying Vertical Glass Washing Machine

,

Water Heating Vertical Glass Washing Machine

,

Water Heating Vertical Glass Washing Machine

Fully automatic and easy-to-operate vertical insulating glass washing machine with drying water heating function

Product Description
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 0
Vertical Glass Washing and Drying Machine LJBQX2025
The whole washing and drying section adopt stainless steel, including the plate and interior spare parts.
1.Standard left to right operating direction.
2.Strong welded construction with high quality coating paint. All stainless steel components and tanks for all water applications. Shield is made by carbon steel. Chassis in washing and drying section is made by high robust channel steel.
3.80MM rubberized vulcanized and rectified conveyor rollers(with stainless shaft end).
4.Main conveyor device: Bevel gear is adopted for steady and synchronous transmission.
5.3 pairs of brushes are equipped, individual motors drive front and gear brushes through belts. Brush shaft diameter is 170mm and shaft end is made by stainless steel.
6.2 water pumps and water tanks, each tank has heater device.
7.2 inclined air knives, hot air can be provided. Blower packed with muffle cotton can largely minimize the noise. It is placed at the back of unloading table which can save place.
8.Motors, blower, pump, transmission, lighting, up/down can be controlled by electric panel. Inverter for conveyor rollers rotation drive with digital display for speed, glass thickness and up/down distance.




Benefits & Advantages

* Automatic detect low-e & high performance glass
* Wash online and offline low-e glass, automatically recognizes Low-e film
* The air knife can automatically adjust the width according to the glass thickness
* Using intelligent intermittent energy-saving working methods
* Hierarchical type washing system
* Water tank automatic temperature control, water replenishing system
* The whole equipment adopts the European silencer system & stainless steel drying system.
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 1
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 2
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 3
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 4
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 5
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 6
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 7
Specification
Item.
Spec.
Max. glass size(Optional)
2000*2500mm
Min. glass size
280*450mm
Glass thickness
3-15mm
Glass washing speed
2-10m/min
Glass conveyor speed
15m/min
Washing brushes
3 pairs
Water supply
Water consumption:0.5t/h
conductivity:40μs/cm
Air supply
Flow: 0.8m/min
Air pressure
≥0.8MPa
Total power
3P 31KW
Above information is the Specification. from Jinan LIJIANG Glass Standards.
If customers want to change the Spec., please let us know.
Product picture display
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 8
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 9
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 10
Packing & Delivery
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 11
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 12
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 13
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 14
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company introduction
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 15
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 16
Fully Automatic Vertical Glass Washing Machine With Drying Water Heating Function 17
Jinan Lijiang Glass is a professional manufacturer of glass processing machine integrating R & D, production, sales and service. The main products are: glass edging machine, glass chamfering machine, glass cleaning machine, glass cutting machine, glass cutting machine, glass Sandblasting machine, etc. Committed to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time.
