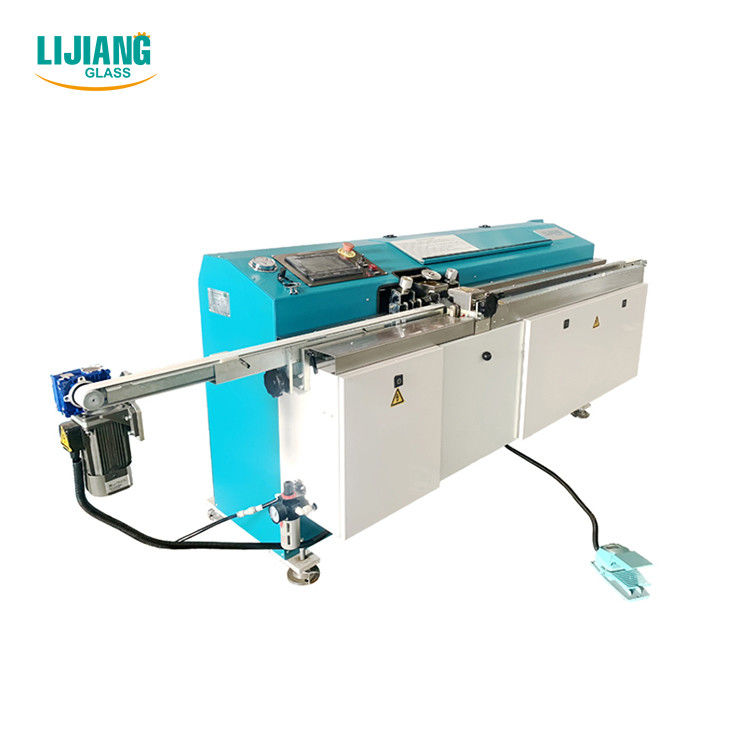

2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control

2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control
2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control
2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control 2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control 2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control 2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control 2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control

Large Image :  2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJTB03
Payment & Shipping Terms:
Minimum Order Quantity: ONE SET
Price: US$6000 to US$5500
Packaging Details: Wooden boxes and containers
Delivery Time: Within 10 working days
Payment Terms: L/C, T/T
Supply Ability: 10 units per month
Contact Now

2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control

Description
Voltage: 380V 50Hz Power: 5.7kw
Dimension(L*W*H): 2800*700*900mm Weight: 650 Kg
Glass Thickness: 3-15mm
High Light:

Alupro Spacer Butyl Extruder Machine

,

2000*2500mm Butyl Extruder Machine

,

Intelligent Butyl Extruder Machine

2000*2500mm Automatic Alupro spacer Butyl Extruder Machine for Double glass with Intelligent control


APPLICATION
LJTB01 butyl extruder machine is used to apply hot melt butyl to the aluminum spacers of insulating glass evenly. The use of large electrical control panel makes the operation easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min. The squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The machine is energy-saving. The dispensing cylinder uses rotate supporting system and this makes the refill of butyl easier. The system can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
Main feature

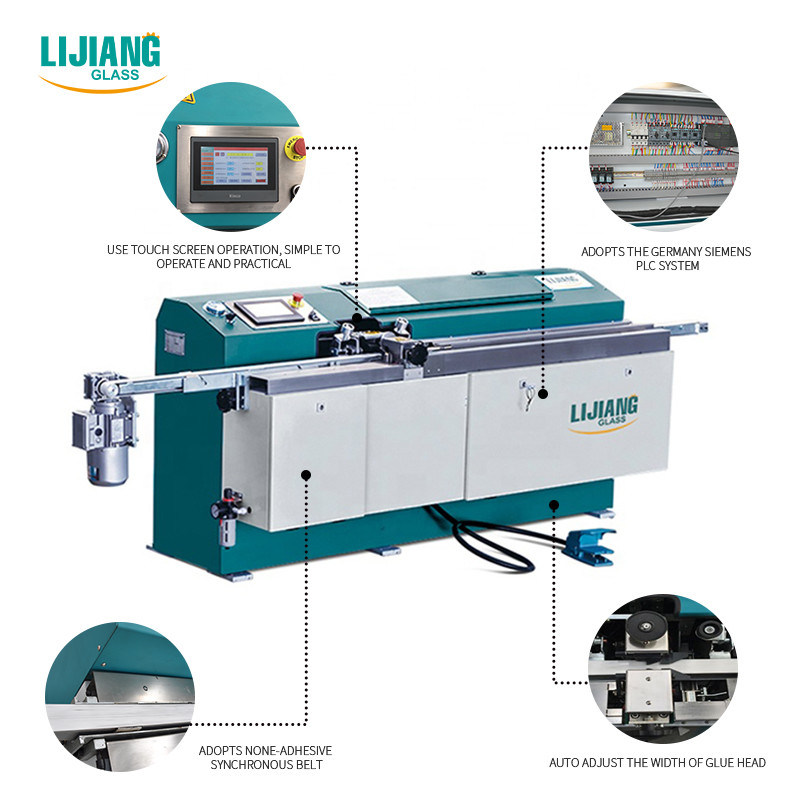

Touch-screen operation which makes the machine simple and practical Rectangle & arc frame , decorative aluminum fram can be coat Auto-measure the width of spacer, auto-adjust the distance of nozzle Auto-centering and auto clamping The wheel material is Teflon brand ,non-stick coating, non-adhesive belt The crossbeam height is easy to adjust,we can control the height of butyl Nuzzle height can be adjust, solve the gap between spacer and butyl The coating speed is up to 47m/min,save butyl is up to 30％ (double side standard is 7-8g, our machine can do 4g thickness is 1-1.5mm ,width 3mm) Glue output and height is same level. Alarm device when use out of butyl Pre-heating function,set up a regular time before . Glue cylinder stands upside,easy to change glue Germany HAWEI brand pressure can up to 25MPa,The pressure is stable that can make the glue was coating evenly The front roller and the back roller are used for rectangular frame, the Arc roller is used for circular frame. Electrical components are used famous brand Pneumatic and Hydralic supercharging pump -German Maximator brand control the pressure of outlet oil strongly. Pressure valve German HAWE brand with high pressure resistance, keep the butyl well proportioned Pneumatic component -Taiwan Airtac Relay Japan OMROM Japan quick-opening valve make sure the both sides of nozzle open and close at the same timeAPPLICATION
2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control 0
2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control 1
Coating speed
5-47m/min
Aluminum spacer size
4-30mm
Supply sealant pressure
<100kg/cm2
Power
5KW
Air source
≥0.6MPa
Dimension
2600mm*680mm*1100mm
volume of butyl approx.
7.5L






Name
Brand
Low voltage electrical apparatus
Germany SIEMENS
Hydraulic and pneumatic supercharging system
Germany MAXIMATOR
Pressure relief valve
Germany HAWE
Frequency converter
KINCO
PLC
KINCO
Pneumatic components(cylinder,valve)
ARTAC
Quick exhaust valve,Vacuum generator
Japan SMC
travel light
Japan OMRON

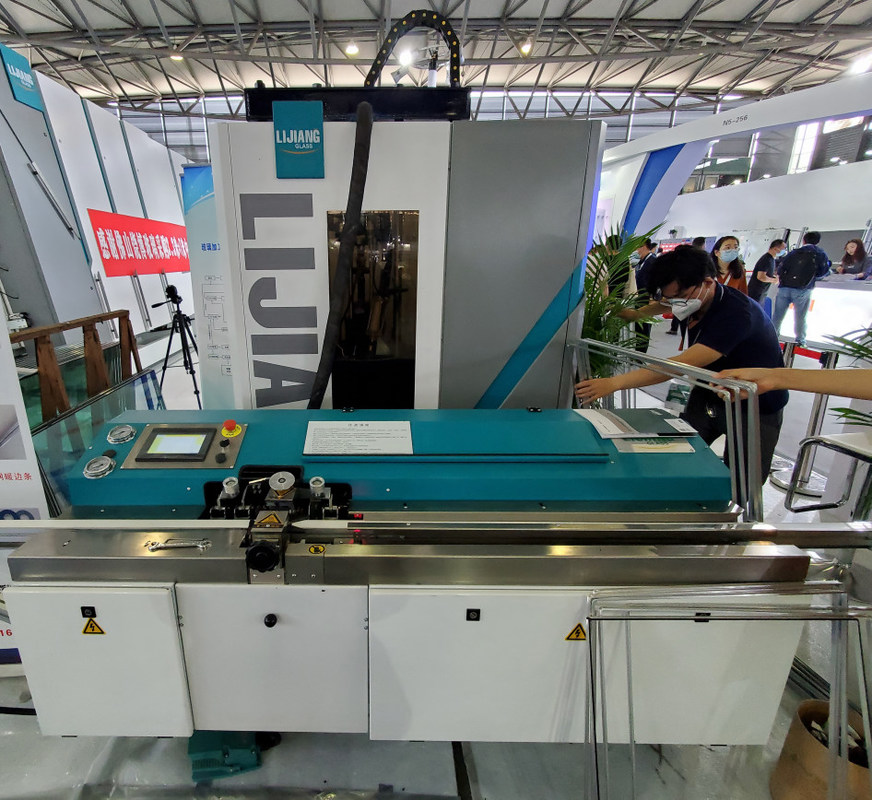

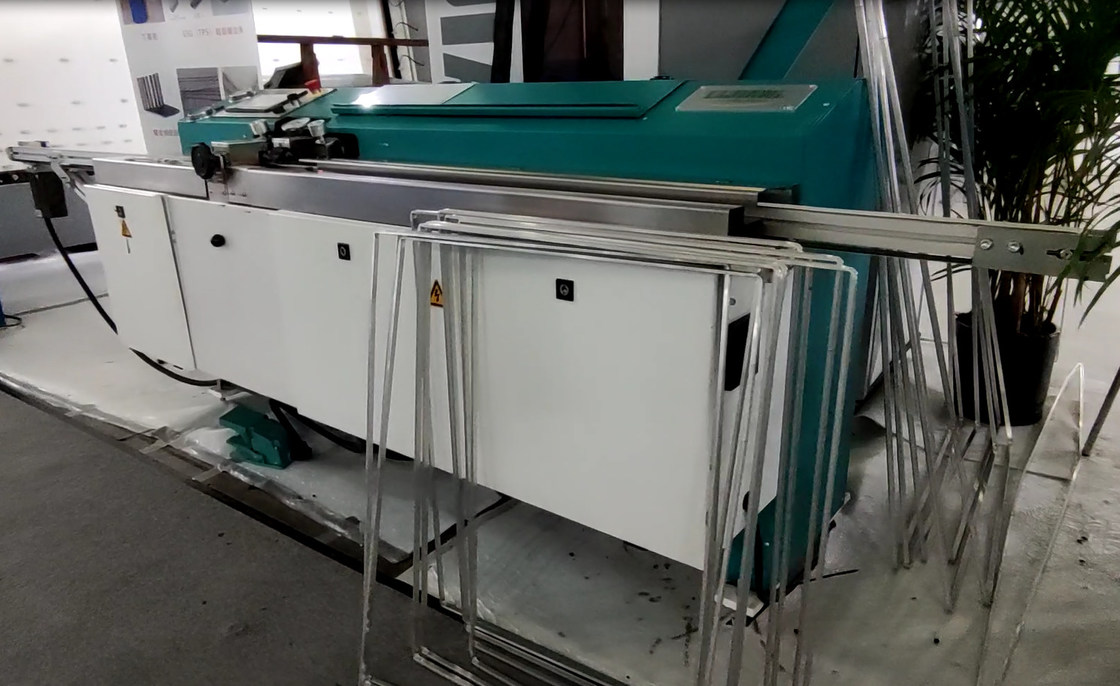

FACTORY DISPLAY

2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control 2
2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control 3
Vertical Insulated Glass Produce Line for double glass production line Auto Sealing Robot for double glass production line Sealant Spreading Machine for double glass production line Low-E Glass Washing &Drying Machine for double glass production line Smart Edge Deleting Machine for double glass production line Automatic Spacer Bending Machine for double glass production line Automatic Desiccant Filling Machine for double glass production line Butyl Extruder Machine for double glass production line Glass Edge grinding Machine for double glass production line Spacer Cutting Machine for double glass production line Sealing gun Freezer for double glass production Rotated Sealant Spreading Table double glass sealing Argon Gas Filling Machine double glass Semi-auto Aluminum Frame Transfer Machine for double glass production line Molecular Sieve Filling Machine double glass production line Glass Lifting Table double glass production line Glass Loading /unloading Device for double glass production line Water Treatment System for double glass production line (Economy) Water Treatment System double glass production line (Advanced) Auto Seaming MachineVertical Insulated Glass Produce Line for double glass production line Auto Sealing Robot for double glass production line Sealant Spreading Machine for double glass production line Low-E Glass Washing &Drying Machine for double glass production line Smart Edge Deleting Machine for double glass production line Automatic Spacer Bending Machine for double glass production line Automatic Desiccant Filling Machine for double glass production line Butyl Extruder Machine for double glass production line Glass Edge grinding Machine for double glass production line Spacer Cutting Machine for double glass production line Sealing gun Freezer for double glass production Rotated Sealant Spreading Table double glass sealing Argon Gas Filling Machine double glass Semi-auto Aluminum Frame Transfer Machine for double glass production line Molecular Sieve Filling Machine double glass production line Glass Lifting Table double glass production line Glass Loading /unloading Device for double glass production line Water Treatment System for double glass production line (Economy) Water Treatment System double glass production line (Advanced) Auto Seaming Machine
2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control 4
2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control 5
2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control 6
2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control 7
2000*2500mm Alupro Spacer Butyl Extruder Machine For Double Glass Intelligent Control 8
