Mobile Glass Lifting Machine For Double Glazing Glass With Suckers

Mobile Glass Lifting Machine For Double Glazing Glass With Suckers
Mobile Glass Lifting Machine For Double Glazing Glass With Suckers Mobile Glass Lifting Machine For Double Glazing Glass With Suckers

Large Image :  Mobile Glass Lifting Machine For Double Glazing Glass With Suckers

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJXP300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 12000 per set
Packaging Details: Wooden books
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month

Mobile Glass Lifting Machine For Double Glazing Glass With Suckers

Description
Name: Glass Installation Robot Loading Capacity: 300 / 400 / 500/ 600 / 800kg
Lifting Height: 3500mm Glass Size: 3660*2440
Manual Rotating: 360°
High Light:

Mobile Glass Lifting Machine

,

Glass Lifting Machine For Double Glazing

,

Double Glazing glass suction lifter

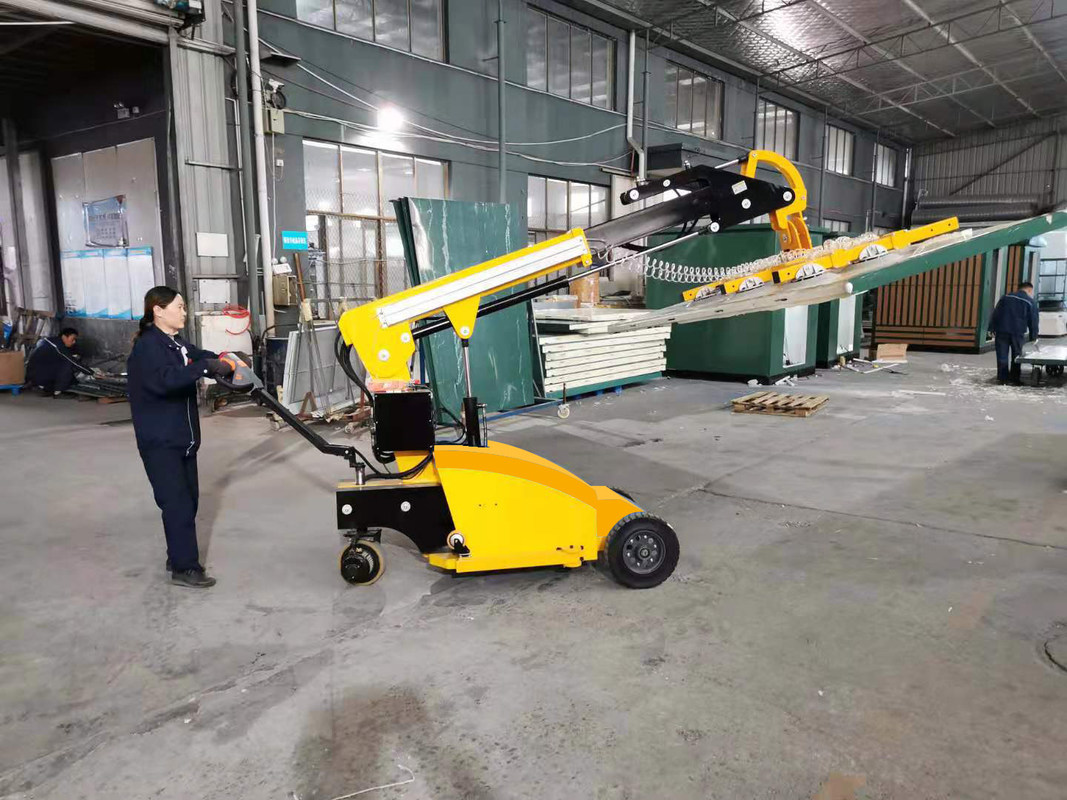

Mobile Glass Lifting Machine For Double Glazing Glass With Suckers LJXP300



1. Double system control, one vacuum system for working, and one for alternate;

2. Adopt American THOMAS vacuum pump, Italy METALROTA heavy type driving wheel, Swiss BUCHER power unit and intelligent maintenance-free battery,during the use, without air source or power supply. It can achieve electric walking, lifting ,lowering taking and releasing air by electrical. Manually rotated 360°in the vertical side, and manually rotated 90° in the horizontal side.

3. With Japan PANASONC bdigital display vacuum pressure switch and battery fuel gauge, clearly monitor the safe operation of the equipment.

4. With vacuum pressure auto supply system to ensure the whole vacuum system maintained at a relatively constant safety pressure value, if catch the unexpected power failure, the pressure holding function can extend the emergency handling time, safer to use.

5. Adjustable design, can be changed the position of the suction cups and assembled in various ways according to needs, each suction cup equipped with a separate control valve, can handle glass of different shapes and sizes.

Mobile Glass Lifting Machine For Double Glazing Glass With Suckers 0

Mobile Glass Lifting Machine For Double Glazing Glass With Suckers 1





Rated load capacity
kg 300 350 400 500 600
Manual rotating



°

360° 360° 360° 360° 360°
Lifting height mm 3500 3500 3500 3500 3500
Battery V/A 2x12/80 2x12/90 2x12/100 2x12/120 2x12/120
Charger V/A 24/12 24/12 24/15 24/18 24/18
Drive motor V/W 24/1200 24/1200 24/1200 24/1500 24/1500
Lift motor VAV 24/2000 24/2000 24/2000 24/2200 24/2200
Overall Width mm 810 810 810 810 810
Overall Length mm 2660 2660 2660 2800 2800
Driving wheel dimension mm 250*80 250*80 250*80 300*100 300*100
Pads diameter mm 300 300 300 300 300
Glass size mm 3660*2440 3660*2440 3660*2440 3660*2440 3660*2440



Ⅰ.Warranty : 1 year ( the wearing parts and grinding tools are out of this range)guarantee the perfect working condition by normally replacing for wearing
parts,electric parts and some other parts under the proper operating.

II.service system
1,installation:after the machine arriving customer’s factory,LIJIANG can send its engineer to the customer’s factory for machine installation,adjustment and personal training for free.but the round-trip air ticket,and accommodation will be born by the customer.(we will support to customer as on line service if we can not go for service because of COVID-19)

2,warranty period repair:during the warranty period (2years),if there is a problem with the equipment and the customer request LIJIANG engineer to repair in the factory. The customer is responsible for the round-trip air ticket,no maintenance fee and no apare parts cost (except wearing parts).(we will support to customer as on line service if we can not go for service because of COVID-19)

3,out of warranty repair:outside the warranty (2years),if the equipment appears problems,the customer request LIJIANG to send engineer to the factory for maintenance. The customer should be responsible for round-trip air tickets and accommodation.Also customers need to pay for the LIJIANG.
