Intelligent Electric Glass Suction Cup Lifting Machine Deep Processing Suction Cup Crane

Description
Name: Glass Lifting Table Advantage: With Lifting Sucker
Max Liftting Wight: 800kgs Cantilever Method: Column Type Or Wall-hanging Type
Lifting Stroke: 800-2000mm Normal Standard: 1200mm Rail Length: 1000mm
Quantity Of Sucker: 2 Or 4 Or 6 Or 8 Suckers Gas Source: Gas Source Compressed Air 6-7 Mpa
Flip Function: 90° Manual Rotation
High Light:

Glass Suction Cup Lifting Machine

,

Intelligent Suction Cup Lifting Machine

,

Deep Processing Suction Cup Crane

Intelligent Electric Glass Suction Cup Lifting Machine Four-jaw Glass Electric Suction Cup Deep Processing Vacuum Suction Crane
Product Description
Intelligent Electric Glass Suction Cup Lifting Machine Deep Processing Suction Cup Crane 0

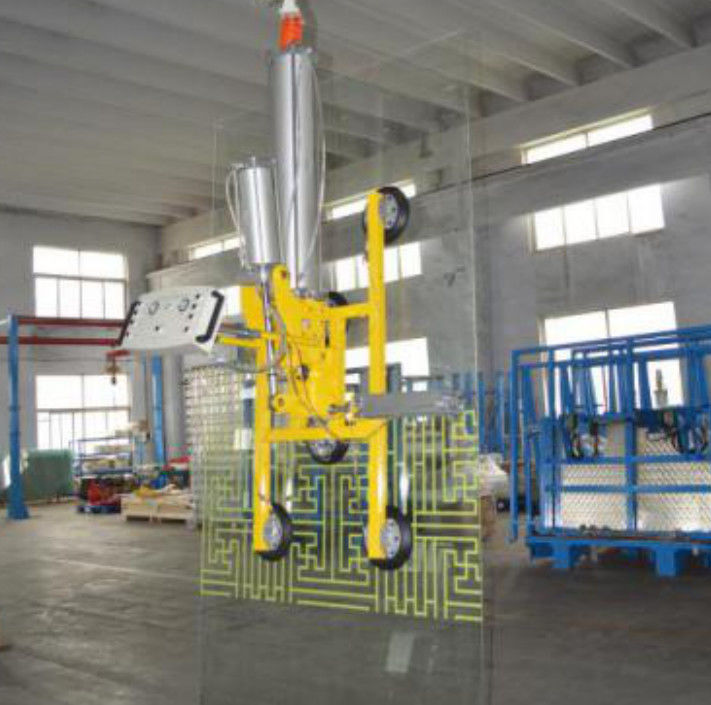

LJXJ300 Glass Loading and Unloading Lifter Cantilever Crane

Pneumatic glass handing manipulator loading and unloading lifter is operated by means of the usage of compressed air. The gadget does no longer use electricity and is protected and reliable, convenient to operate. It is an fundamental glass dealing with device for a contemporary glass processing industry. The air flowing thru the vacuum generator motives Vacuum Pressure to suck the glass. A cylinder stroke is acted through receiving the command sign from the compressed air in an inlet pipe. The system is often used for glass managing work in glass manufacturing unit processing lines, such as grinding, cleaning, tempered, laminated, insulated, etc.
Intelligent Electric Glass Suction Cup Lifting Machine Deep Processing Suction Cup Crane 1
Equipment Advantages
Intelligent Electric Glass Suction Cup Lifting Machine Deep Processing Suction Cup Crane 3
Intelligent Electric Glass Suction Cup Lifting Machine Deep Processing Suction Cup Crane 4
Intelligent Electric Glass Suction Cup Lifting Machine Deep Processing Suction Cup Crane 5
Intelligent Electric Glass Suction Cup Lifting Machine Deep Processing Suction Cup Crane 6
Intelligent Electric Glass Suction Cup Lifting Machine Deep Processing Suction Cup Crane 7
Intelligent Electric Glass Suction Cup Lifting Machine Deep Processing Suction Cup Crane 8
Intelligent Electric Glass Suction Cup Lifting Machine Deep Processing Suction Cup Crane 9




Benefits & Advantages


●Mechanical part:

(1) The whole size of the major beam of the suction hoist is designed to be 2000mm, and the higher section of the center section is welded and sealed with a plate, and the center section is used as a vacuum accumulator. The air tightness take a look at is carried out after welding to make certain no leakage. When the gear is abruptly powered off, it is nonetheless assured to be capable to reliably adsorb the plates for at least 20 minutes, and will now not purpose security accidents such as tools harm (the European CE popular is to keep 10 minutes)

(2) This tools is geared up with 6 suction cups with a diameter of 360mm for exclusive sizes of glass. The role of every suction cup on the beam is adjustable to facilitate the adsorption of glass of unique sizes.



●Electrical part:

(1) A vacuum strain change and a buzzer alarm unit are mounted on the vacuum hoist. When the vacuum device strain does no longer attain the set pressure, or when a strength failure occurs, the alarm unit will manage the crimson warning mild to mild up and the buzzer to sound. , Prompt the operator to deal with it in time.



●Vacuum part:

(1) The suction hoist adopts a German oil-free rotary vane vacuum pump, with a pumping ability of 8m3/h, a massive vacuum diploma of over 85%, electricity saving, compact and lightweight, no maintenance, etc.;

(2) The entire set of tools is outfitted with 6 vacuum suction cups, multi-point adsorption to make certain that the plate can preserve a excessive stage in the course of the managing method except tilting;

(3) The suction cup cloth is nitrile rubber, with a diameter of 360mm, oil (benzene), durable, acid and alkali resistance, and can correctly adsorb with FRP to produce a actual single suction cup level. Theoretical giant suction pressure = high-quality region (physical product * coefficient) * calculated strain (0.6bar); (0.18*0.18*3.14)*0.6*10000=610.416, which is about 610.4Kg. According to the four instances security factor, the real allowable suction electricity of the suction cup is 610.4/4=152.6Kg. The complete suction strength of 6 suction cups is 600kg. Note: The vacuum suction pressure cited in the above desk is calculated beneath 60% vacuum degree. Under regular working conditions, the machine vacuum diploma can attain extra than 85%;

(4) The vacuum strain sensor is made of Japanese Panasonic brand, and the alarm stress stage is set to 60% vacuum;

(5) Each suction cup is geared up with a guide ball valve to manipulate the opening and closing, which ensures that the identical gear can be utilized to a variety of specs of plates;

(6) The higher and decrease components of the sucker rod are geared up with a spring. When the plate is now not flat, the spring acts as a buffer to make the sucker evenly stressed, so as to make sure the security and reliability of the suction cup.



● Overall:

(1) According to the European Union DIN EN 13155 vacuum gadget sketch for the out of doors constructing curtain wall set up site.

(2) Horizontal handling, electric powered flipping and vertical handling.

(3) Flexible design, can be utilized to the dealing with of one-of-a-kind sizes of FRP




Application

- Insulating Glass Production line, - Installing Glass Curtain Wall System, - Loading and Unloading glass sheet on glass cutting table, - Instaling car windscreen. - Depending on the work site, the pneumatic suction hoist can carry the glass to any position you need with the help of different suspension methods.
Intelligent Electric Glass Suction Cup Lifting Machine Deep Processing Suction Cup Crane 10



The Wall-mounted Cantilever Crane

The wall-mounted cantilever crane is used to transport the glass and does not occupy the flooring area. The cantilever crane can be immediately established on the wall, on the column of the manufacturing unit constructing or on the equipment and equipment. The fixing technique is very simple, and the rotating attitude can attain one hundred eighty degrees.

Intelligent Electric Glass Suction Cup Lifting Machine Deep Processing Suction Cup Crane 11



The Column Cantilever Crane
The column cantilever crane is used to transport the glass, which can be established in any work site. It solely occupies the basis place of the column installation, has a small footprint, and can use all viable space. The most rotatable attitude can attain 270 degrees.
Main Technical Parameter
Item.
Spec.
Safety-absorption
200KG/400kg/600kg/800kg
Performance
Rotation 0-270 degree and lifting 600-1200mm
Quantity and size of sucker
2/4/6/8/12
Working gas source
5-8 Pa
Voltage
DC12V (Built-in 2 batteries for long battery life)
Battery life
It can be used for 3 to 5 days after charging once.(In addition, it can also be connected to the power supply.)
Single suction cup loading
The actual test weighs up to 150kg or more
Length dimension
Control cabinet: 0.3m; Suckers: Optional 1-5m
Width dimension
Suckers: Optional 1-1.5m
Outer size
L1120mm*W660mm*H620mm
The Installation Schematic
Intelligent Electric Glass Suction Cup Lifting Machine Deep Processing Suction Cup Crane 12
Intelligent Electric Glass Suction Cup Lifting Machine Deep Processing Suction Cup Crane 13
The Size Schematic Diagram of Vacuum Suction Cup Glass Lifter
Intelligent Electric Glass Suction Cup Lifting Machine Deep Processing Suction Cup Crane 14
The Size Schematic Diagram of Column Cantilever Crane Glass Lifter
