Product Details:
|
| Name: | Horizontal Glass Washer | Advantage: | Max Size Can Be Customeized |
|---|---|---|---|
| Material: | Stailess Steel | Washing Speed: | 2-10m/min |
| Minimum Glass Size: | 450*280mm | Flat Glassthickness: | 3-15mm |
| High Light: | Automatic Horizontal Glass Washer,10m/Min Horizontal Glass Washer,10m/Min Flat Glass Washer |
||

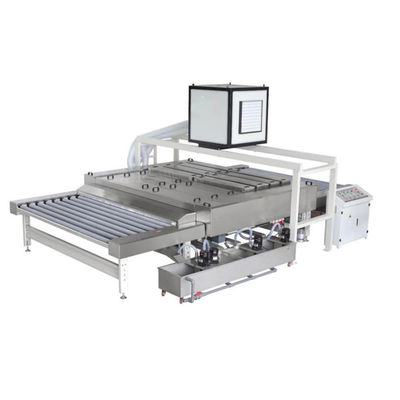

Automatic horizontal glass washer Flat glass washer 2-10m / min foe glass processing

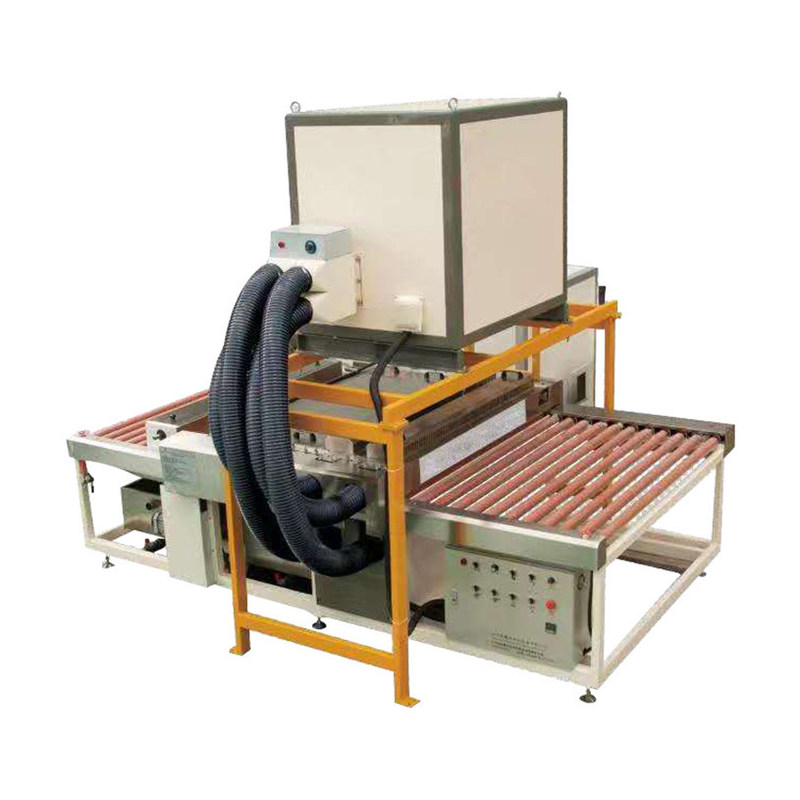

The automatic horizontal glass washer, which cleans and dries glassware, performs automatic product cleaning from both sides at the same time via the upper and lower brushes. The device should do the following:
-Glass loading (automatic from processing line);
-Glass cleaning (automatic);
-Glass drying (automatic);
-Unload (manual).
Pressure – 6 bar.
Pressure-4 bar.
Water tank details►
The washing part in contact with water is made of stainless steel
Air knives detail ►
Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)
High quanlity profile detail►
Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency

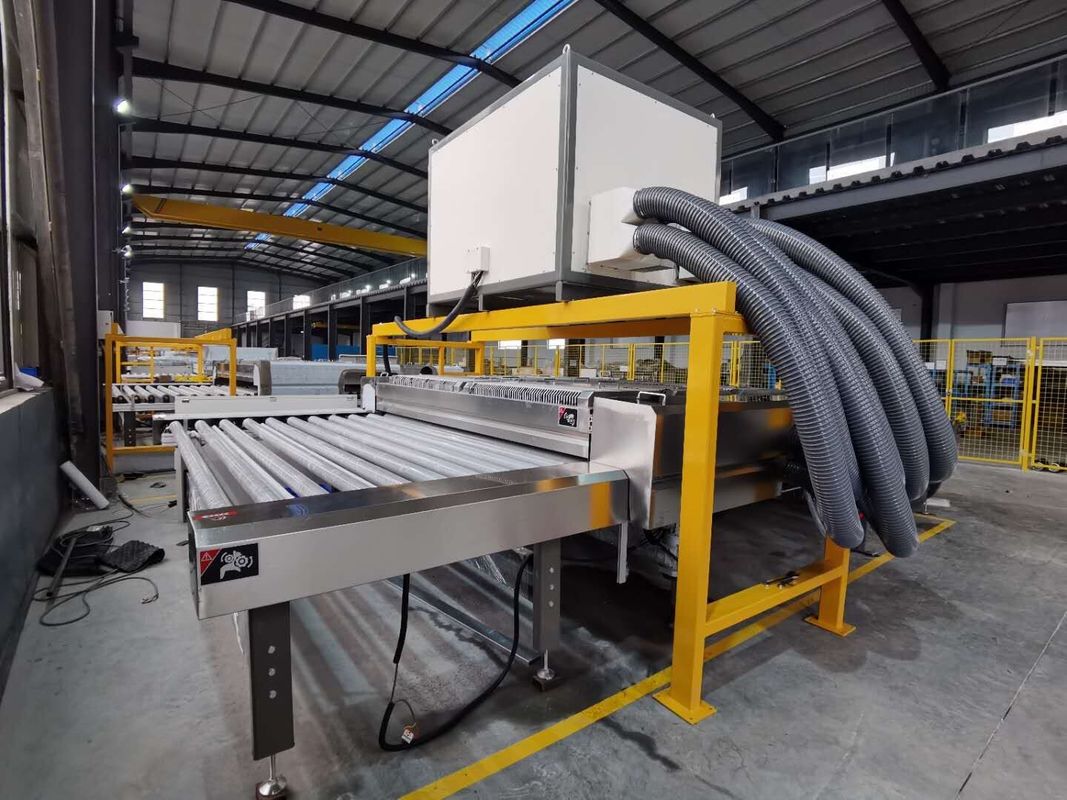

The fan is equipped with an air filter in the air inlet chamber, which has a large air volume and excellent air drying effect. The entire fan box is installed at the top of the workshop and has an air filter screen on the side for easy inspection and cleaning.
1. Maximum glass width: 2500mm (effective maximum: 2650mm)
2. Minimum glass specifications: 400mm x 400mm (limited to one row on the left and right)
3. Glass thickness: 3mm-25mm (digital display)
4. Velocity range: Glass thickness within 3-25mm Vmax = 1-12m / min
5. Main drive, brush speed adjustment method: Frequency control
6. Table height: 900 ± 25mm
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
| Main drive, brush speed regulation method | frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100 |
| Weight | 3940kg |
Glass washing machine used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.
| Main drive motor | Zhejiang province |
| Brush motor | Zhejiang province |
| High pressure air blower | Guangdong province |
| The water pump | Shanqing |
| brush | Anhui province |
| Rubber roller | Guangdong province |
| Frequency converter | VEICHI/Rexroth |
| Electric parts | Schneider |
Automatic Vertical Glass washing machine
1. Overview of automatic vertical glasswasher and washer
The automotive industry flat glasswasher is used for glass cleaning to process double glazing. The automatic vertical washer and washer can perform the following functions: pre-cleaning, cleaning, and drying of flat and Low-E glass. In production. Glasswashers have the advantages of a small footprint, high efficiency, high performance, and convenient maintenance.
2. Advantages of glasswasher
• 3 pairs of soft brushes with 0.1mm soft hair can be used to wash Low-E glass
• Pre-cleaning (optional)
• The air knife can automatically adjust the width of the air knife according to the thickness
• The new air knife uses an aluminum profile (Duckville Air Knife) and the size of the air outlet is adjusted by the aluminum profile duck beak. This reduces the number of adjusting screws, prevents each screw from loosening, and avoids air knife resonance.
• European silencer system
• The operation box with a cleaning speed display can accurately display the cleaning speed (8-10m). • Water tank automatic temperature control, water supply system
• Stainless steel material
3. Main features of vertical glass washing machine
The automatic vertical washing machine uses a Siemens control method that allows the washing speed of the washing machine to be freely adjusted.
4. Tech Parameters of Vertical Glass cleaning and Drying Machine
| Power supply | Voltage(V) | 380 |
| Frequency (Hz) | 50 | |
| Main power | kW | ≈35 |
| Washing speed | m/min | 1~7 |
| Max high speed | m/min | 10 |
| Min glass size | mm | 450×280 |
| Max glass size | mm | 2500×4000 |
| Glass thickness | mm | 3~15 |
| Roller height | mm | 500±20 |
| Total weight | kg | ≈3500 |
5. Detail of AutomaticGlass Washing Machine
horizontal glass washer
