Product Details:
|
| Name: | Glass Lifter For Loading And Unloading | Advantage: | With Lifting Sucker |
|---|---|---|---|
| Max Lifting Weight: | 800KG | Cups Qty: | 2-8 |
| Arm Lenth: | 2m | Colum Length: | 3m |
| High Light: | 800KG Vacuum Hoist Lifting Systems,Glass Loading Vacuum Hoist Lifting Systems,800KG suction cup crane |
||

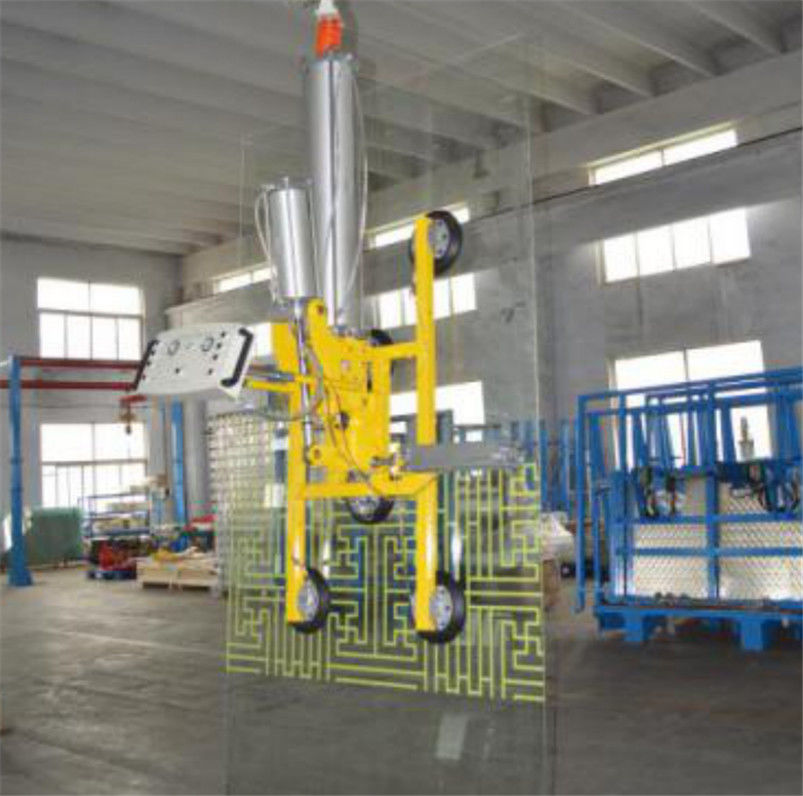

Glass Lifting Machine For Insulating Glass Loading And Unloading

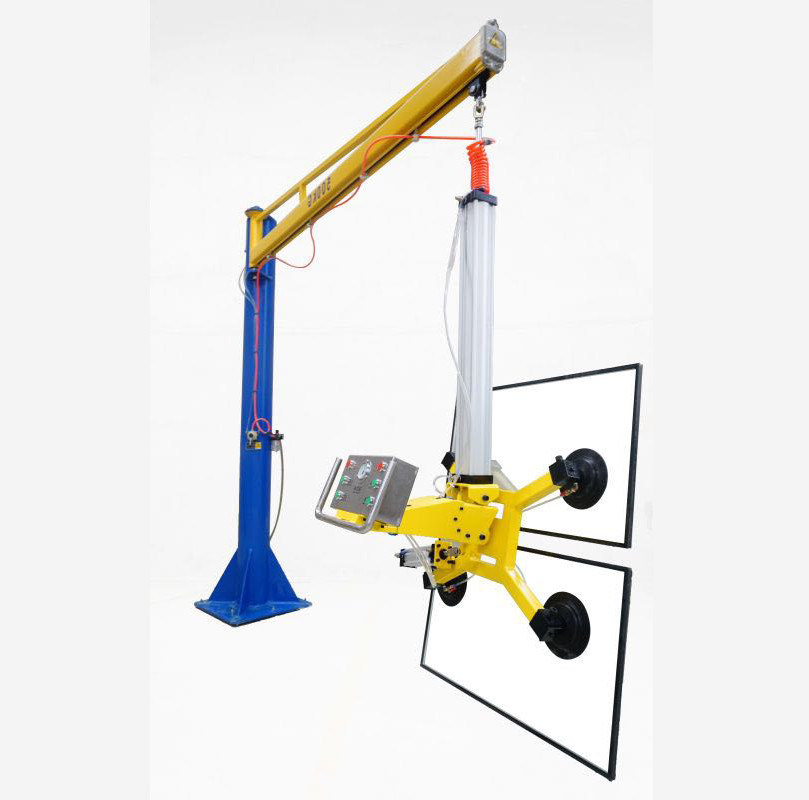

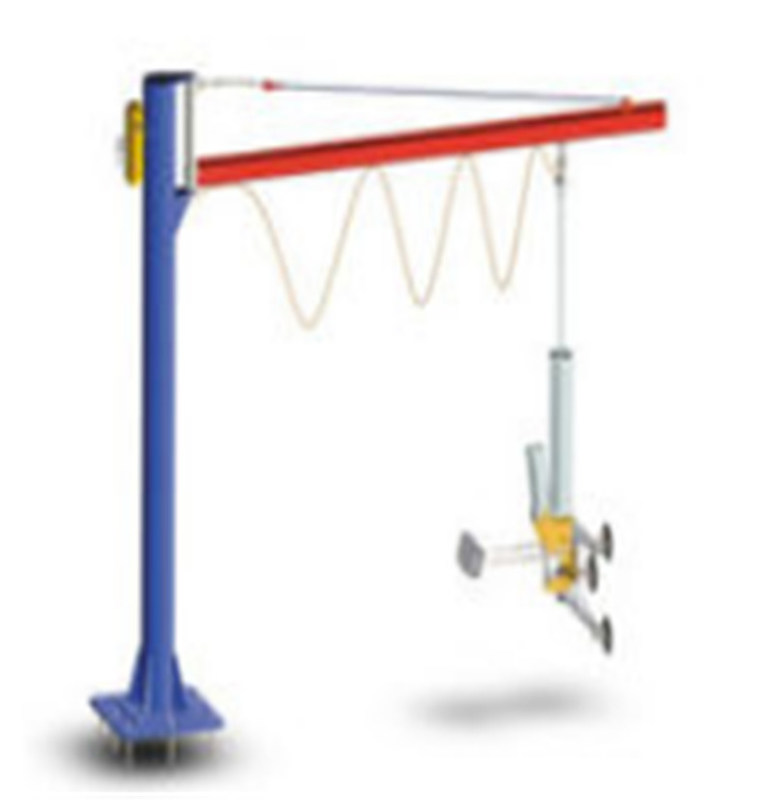

Jib crane is common light lifting equipment in modern production.
It is fit for frequent lifting work of short distance between fixed positions.
It has advantages of high efficiency, energy saving, convenience, occupying a small area and easy operation and maintenance.
500-600 kg
This machine is reliable and safe, easy to operate.
The device is commonly used for glass loading and unloading work in glass deep processing process, such as cutting, grinding, cleaning, tempering furnace, lamination glass and insulated glass.
This device is usually used together with jib crane beam or gantry crane frame, depending on the client's requirements.

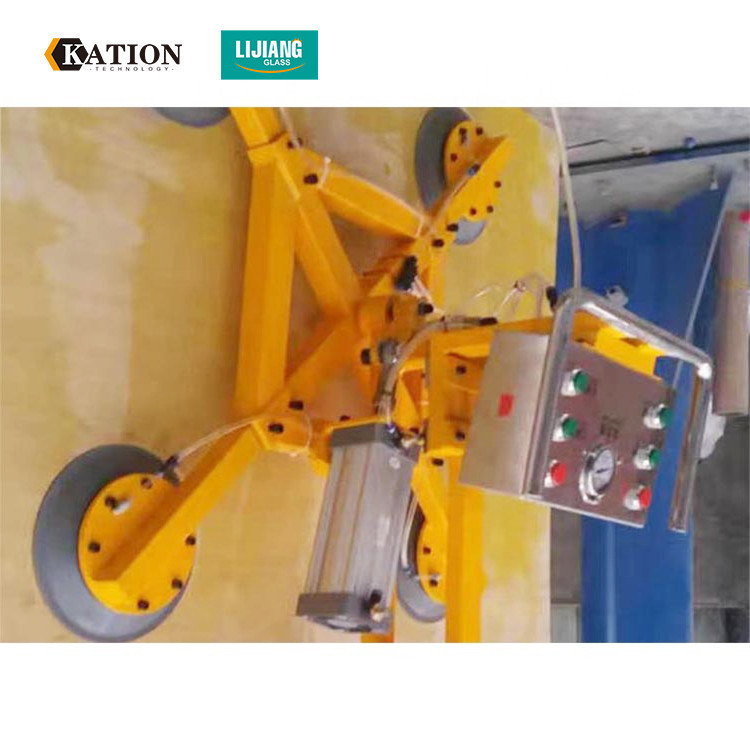

Parameters:
| Max Glass weight | 360KG | |
| Rotation angle | 90° | Left and Right |
| Suction cups | 4 Pieces | |
| Cups Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air control parts | Airtac |
Parameters:
| Max Glass weight | 260KG | |
| Rotation angle | Rotate 90 ° | Left and right |
| Suction cups | 2 pieces | |
| Cups Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4meters | |
| Air control parts | Airtac |
Parameters:
| Max Glass weight | 500KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 6 Pieces | |
| Cup Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air Control parts | Airtac |
| Max Glass weight | 400KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 2 pieces | |
| Cups Materials | Silione | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air control parts | Airtac |
Other products of LIJIANG GLASS
LJBZ2025 Vertical Automatic Insulating glass production line
APPLICATION
As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.
1. Low-e glass sensor
This sensor is installed before washing machine.It can automatically recognize Low-e glass,preventing the glass from dropping Low-e surface.
2. Conveyor roller
The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big size glass and thick glass pass through smoothly.
3. Washing&Drying machine
The whole washing &drying machine adopts stainless steel,including the plate and interior spare parts.And some slider block are copper.
3.1 Washing part
It has 3 pair of brushes, which are all soft brushes, washing flat glass,tempering glass and low-e glass.It has a diameter of less than 0.1mmde bristles,which will never damage glass,especially low-e glass .
Noise reduction device
The noise can be controlled below 90 decibels by using nylon gear and sponges.
4.1 Pressing way
It presses IGUs by hydraulic station with pressure, it guarantees the precise pressure.
4.2 Energy saving of pressing function
It adopts 3 micro switches,which divide the pressing part into 4 sections.
Each micro switch receives the signal and adds a part of the working area. When the corresponding micro switch is not touched, the region does not work.
The work area can be divided in this way.
4.4 Stepped glass(Optional)
It also can make stepped glass with a servo motor.
5, touchscreen and electric box.
Main Parameters:
| Washing speed | 2~10m/min |
| Max.working speed | 45m/min |
| Washing glass thickness | 3~15mm |
| Max.insulating glass thickness | 60mm |
| Conveyor height | 500mm |
| Min.glass size | 450×280 |
| Max.glass size | 2000×2500 |
Main components:
| Circuit breaker | schneider |
| Contactor | schneider |
| PLC | Siemens or omron |
| Touch screen | Taiwan Wenview |
| Power switch | Taiwan |
| Frequency | Dongyuan or Siemens |
| Relay | Japan Omron |
| Optoelectronic switch | Korea Autonics |
| Servo motor | Siemens |
| Pneumatic component | Taiwan Airtac |
