Product Details:
|
| Machine Name: | Butyl Extruder Machine | Glue Barrel: | 7 Kg |
|---|---|---|---|
| Working Speed: | 47m/min | Warranty: | 1 Year |
| Heating Time: | Less Than 15 Mins | Power: | 5.7Kw |
| Glue Width: | 3.5mm | Aluminum Spacer Width: | 5.5-26.5mm |

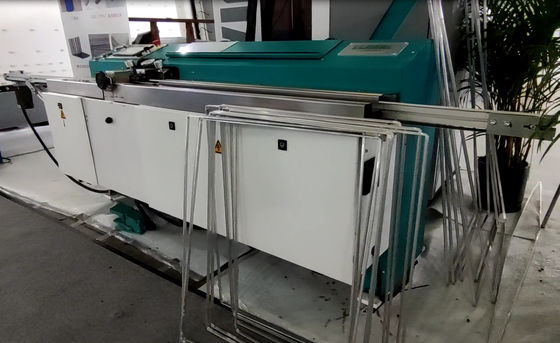

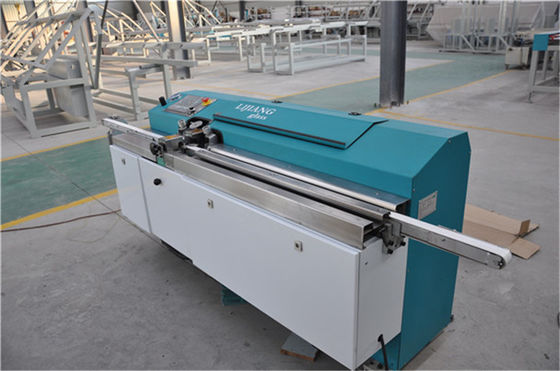

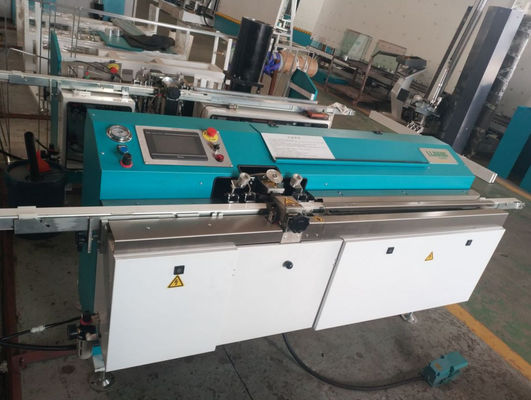

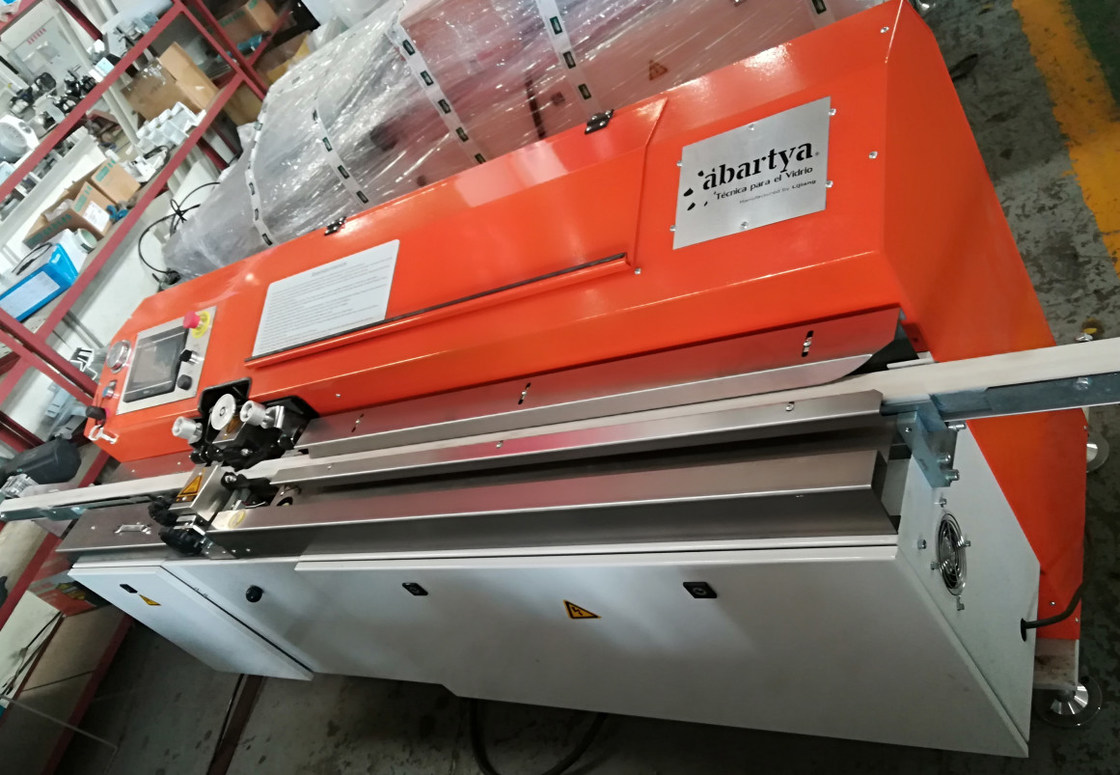

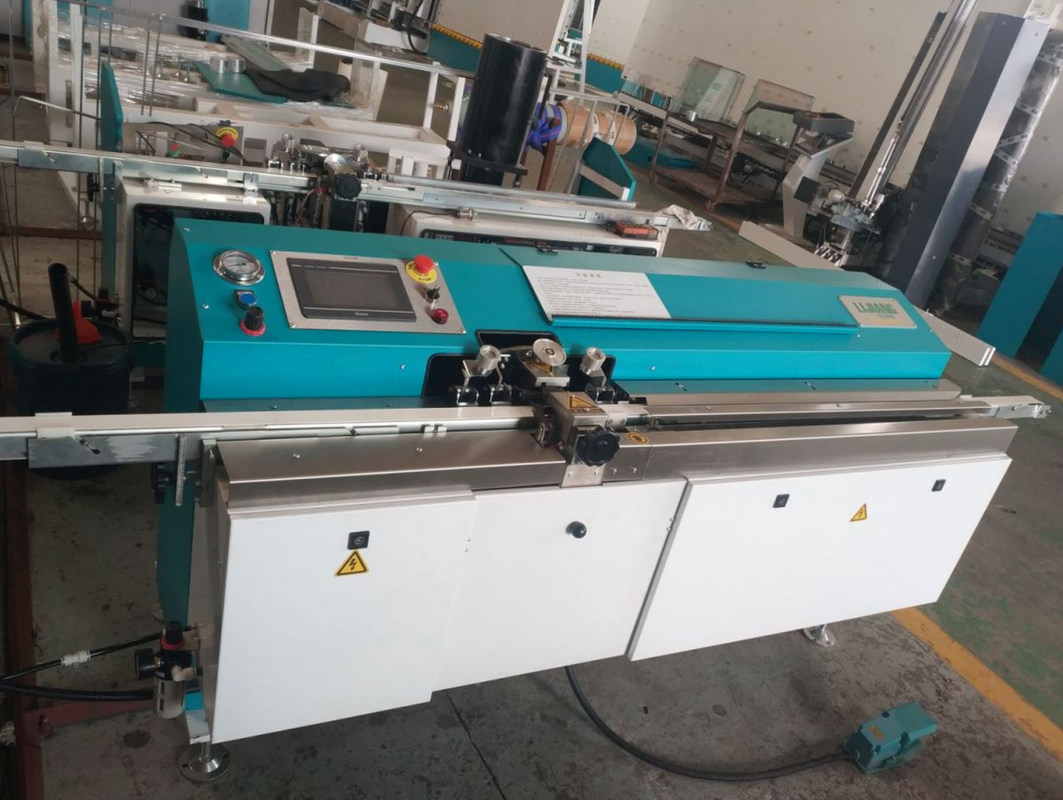

Automatic butyl sealants extruder machine with big butyl barrel
1. Touch-screen operation, simple and practical
2. Auto-measure the width of spacer, nozzle automatic positioning
3. Auto-centering and auto-clamping
4. The bigger wheel help to coat the arc frame
5. Coating nuzzle is Teflon brand ,non-stick coating
6. The coating speed is up to 47m/min,saving materials up to 30％,( 5g/m)
7. The crossbeam height is easy to adjust,we can control the height of butyl
8. The special part controls both sides of nozzle opening and closing at the same time
9. Alarm device when use out of butyl and easy to load butyl
10. Pre-heading function,set a regular time before working time
11. Glue cylinder Adopt the upright structure, easy to change butyl.
12. Automatic filter function Automatically filter debris, keep spreading evenly.
13. Hydralic and Pneumatic supercharging pump ,German MAXIMATOR brand
14. Pressure release valve German HAWE brand ,high pressure resistance ,keep the butyl well proportioned
15. Pneumatic component Taiwan Airtac
16. Japan OMROM Relay
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Electrical parameters
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
Related product of LIJIANG GLASS
Vertical Full Automatic Low-e Glass Edge Deletion Machine With Deleting Low-e Film
Low-E glass, also known as Low-E glass, is a kind of film product composed of multilayer metal or other compounds coated on the surface of glass. The coating layer has the characteristics of high transmittance to visible light and high reflection to mid far infrared ray, which makes it have excellent heat insulation effect and good transmittance compared with ordinary glass and traditional coated glass for building.
Low-e glass types:
Single silver Low-E glass
Single silver Low-E coated glass usually contains only one functional layer (silver layer). In addition to other metal and compound layers, the total number of coating layers reaches 5.
Double silver Low-E glass
The double silver Low-E coated glass has two functional layers (silver layer), plus other metal and compound layers, the total number of coating layers reaches 9. However, the technical process control of double silver Low-E glass is much more difficult than that of single silver.
Main feature:
The vertical glass edge deletion machine contains 3 sections: glass loading section, deleting section and glass unloading section. The deletion machine has 4 kinds of different directions. Online low-e and outline low-e glass.
The vertical low-e film edge deletion machine can delete the double or triple low-e film.
Specification :
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 15KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
