Product Details:
|
| Name: | Glass Washing Machine Technical Parameters | Speed Range: | Glass Thickness Within 3-25mm Vmax=1-12m/min |
|---|---|---|---|
| Main Drive, Brush Speed Regulation Method: | Frequency Control | Table Height: | 900±25mm |
| Total Power: | 42KW(water-bearing Wind Heating: 15KW) | Power Source: | 380V 50Hz |
| High Light: | Double Glazing Glass Washing Equipment,Vertical double Glass Washing Equipment,Vertical double Glass Washing And Drying Machine |
||

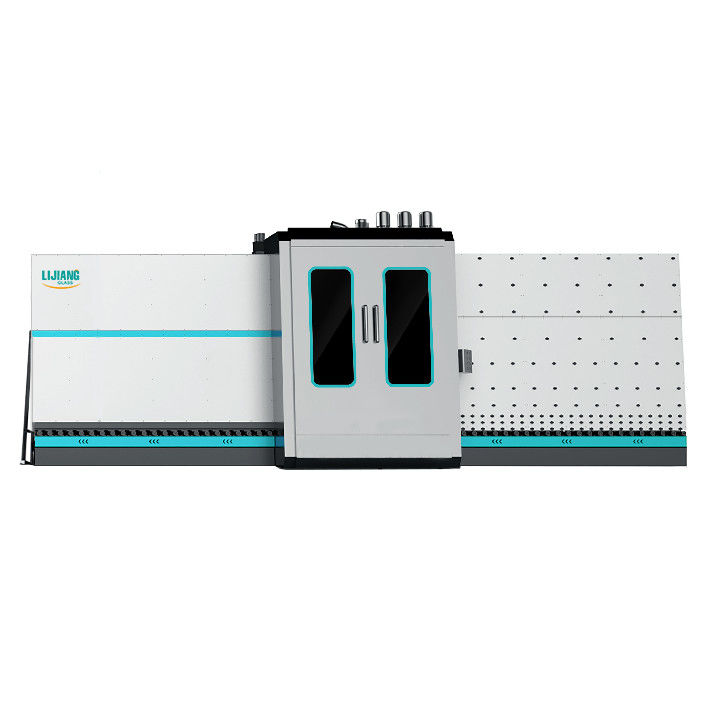

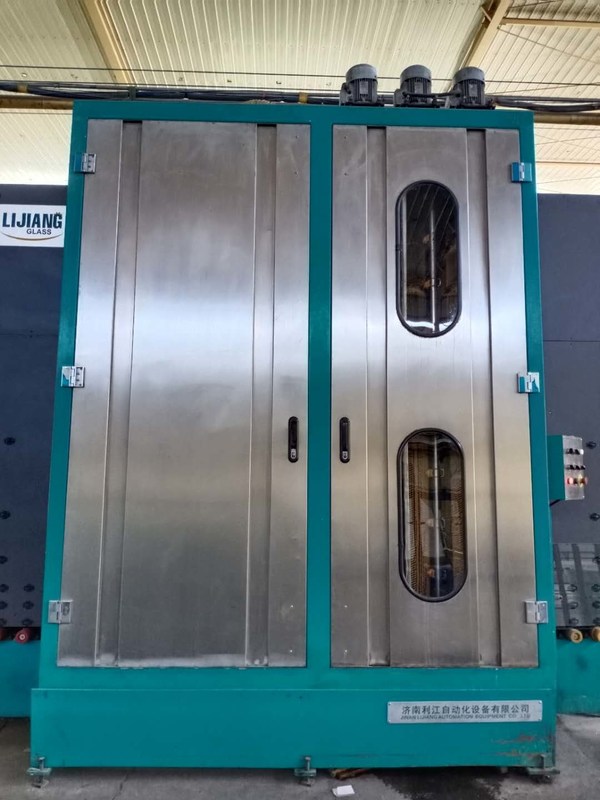

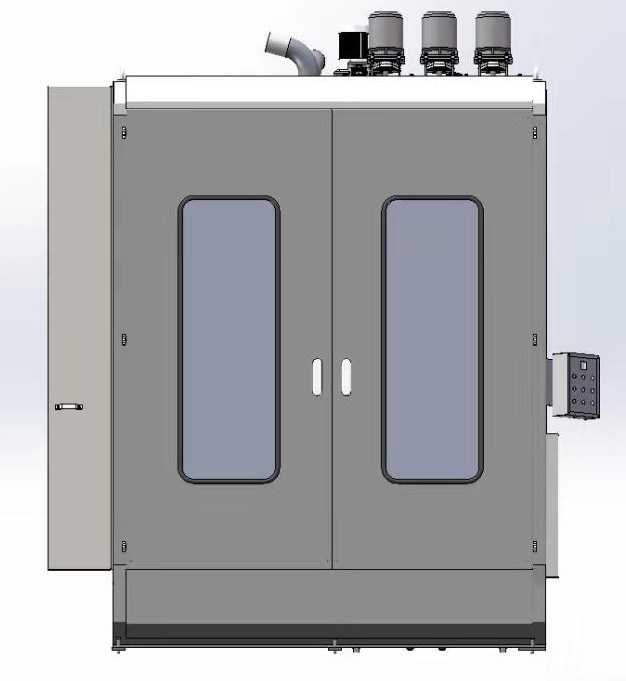

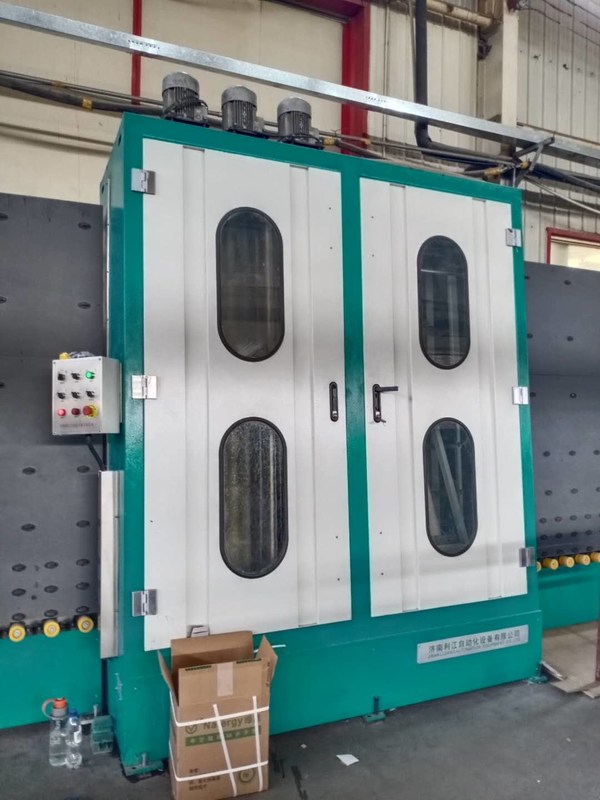

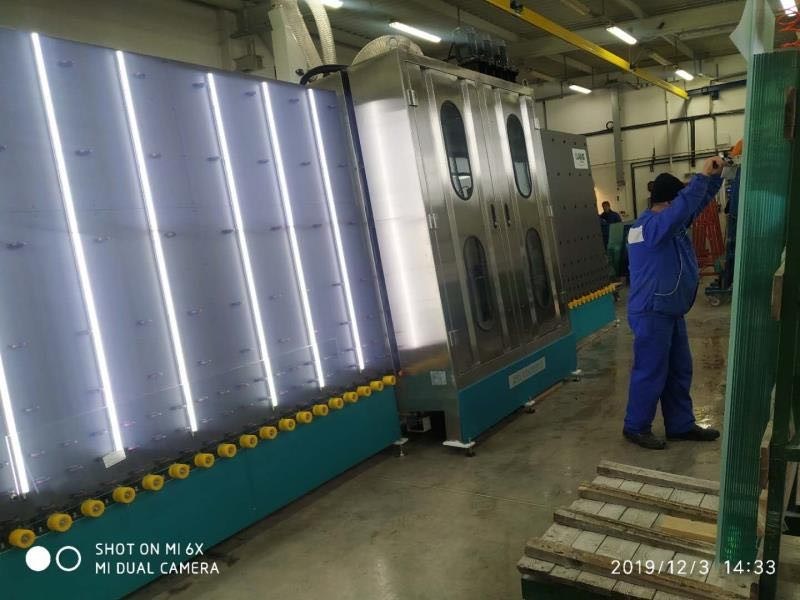

Glass washing machine technical parameters CP-2500A
1,USES:
glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.
2, Structural characteristics:
1,Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency；
2. The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder；
3. The rubber roller is made of vulcanized rubber with stainless steel shaft；
4. The washing part in contact with water is made of stainless steel；
5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain；
6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface)；

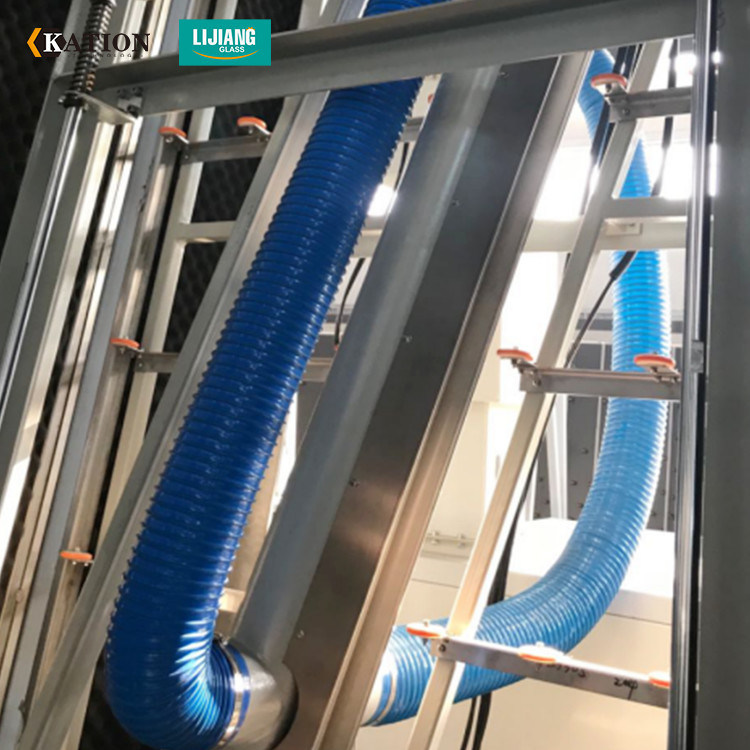

7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)；
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
|
Main drive, brush speed regulation method |
frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100 |
| Weight | 3940kg |
| Main drive motor | Zhejiang province |
| Brush motor | Zhejiang province |
| High pressure air blower | Guangdong province |
| The water pump | Shanqing |
| brush | Anhui province |
| Rubber roller | Guangdong province |
| Frequency converter | VEICHI/Rexroth |
| Electric parts | Schneider |
Main feature:
l Automatic detect low-e & high performance glass
l Wash online and offline low-e glass, automatically recognizes Low-e film
l The air knife can automatically adjust the width according to the glass thickness
l Using intelligent intermittent energy-saving working methods
l Hierarchical type washing system
l Water tank automatic temperature control, water replenishing system
European silencer system&stainless steel drying system
