Product Details:
|
| Name: | LJTB01 Butyl Extruder Machine | Diameter Of Butyl Cylinder: | 200mm |
|---|---|---|---|
| Air Supply: | 0.4m³/min | Air Pressure: | ≥0.6MPa |
| Total Power : | 380V, 5KW, 50HZ | Squeeze Pressure: | 10-18MPa |
| High Light: | Insulated Glass Butyl Extruder Machine,Sealant Butyl Extruder Machine,200mm Butyl Sealant Coating Machine |
||

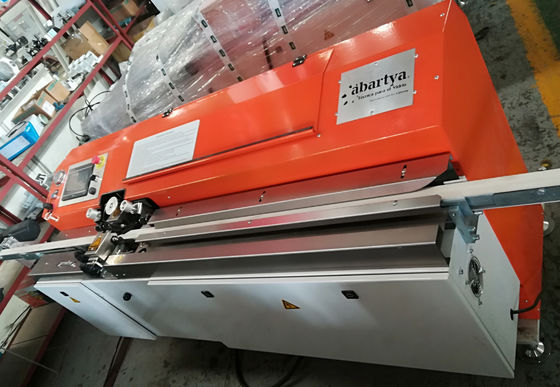

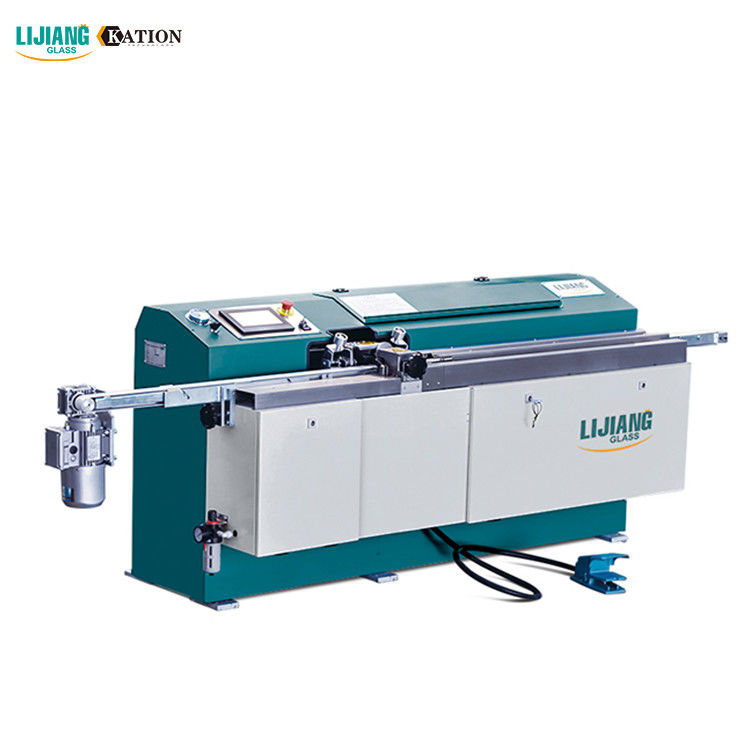

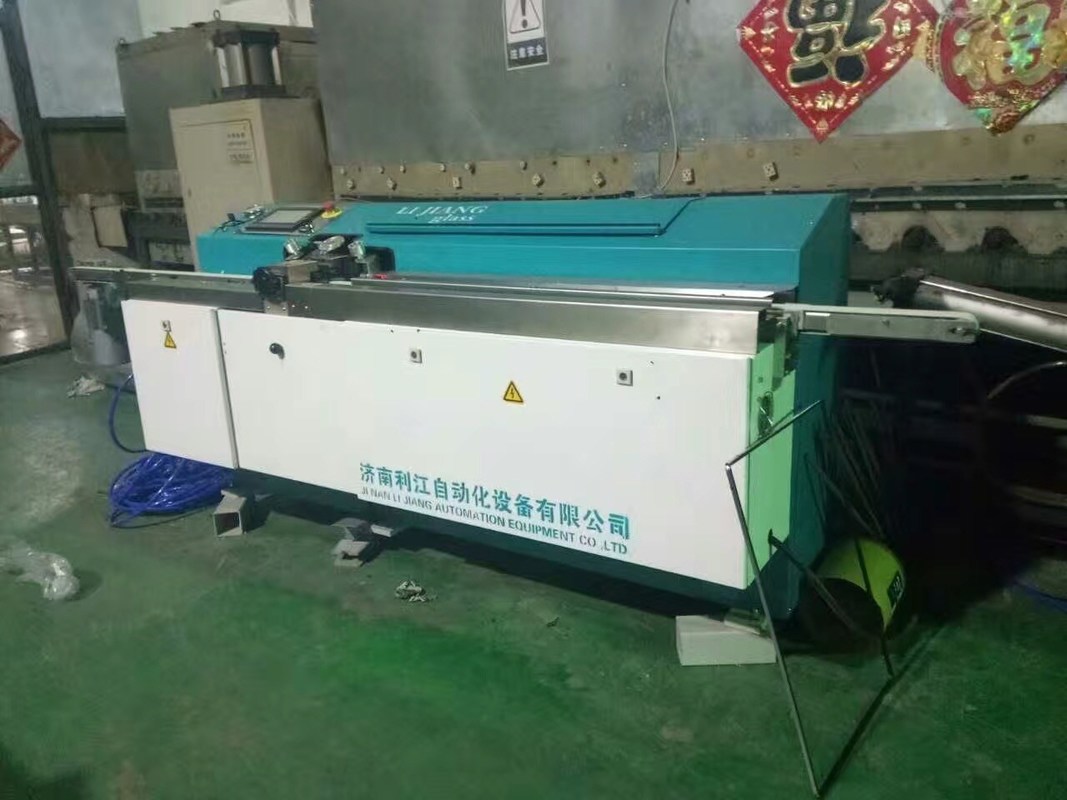

LJTB01 Butyl Extruder Machine
Application of double glass machine
LJTB01 butyl extruder machine is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The LJTB01 butyl extruder machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
² Technical Data of butyl silicone sealant
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600*680*1100mm(L*W*H) |
| Weight | 650kg |
² Main components of double glass machine
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
Other features of china pneumatic
1. Adjustable coating speed, can up to 0-47m/min.
2. Can save about 40% materials, only 5g/m.
3. Extruder head height adjustment structure.
4. Automatic centering and clamping structure.
5. Stable temperature and it is convenient to adjust the sealing material automatically.
Company Profile of hot melt butyl machine
Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world. Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!
FAQ of extrusion coating machine
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
