Product Details:
|
| Name: | Glass Cantilever Crane | Advantage: | With Lifting Sucker |
|---|---|---|---|
| Max Lifting Weight: | 800KG | ||
| High Light: | Glass Cantilever Crane,Insulating Glass Cantilever Crane,800KG Insulating Glass Lifting Machine |
||

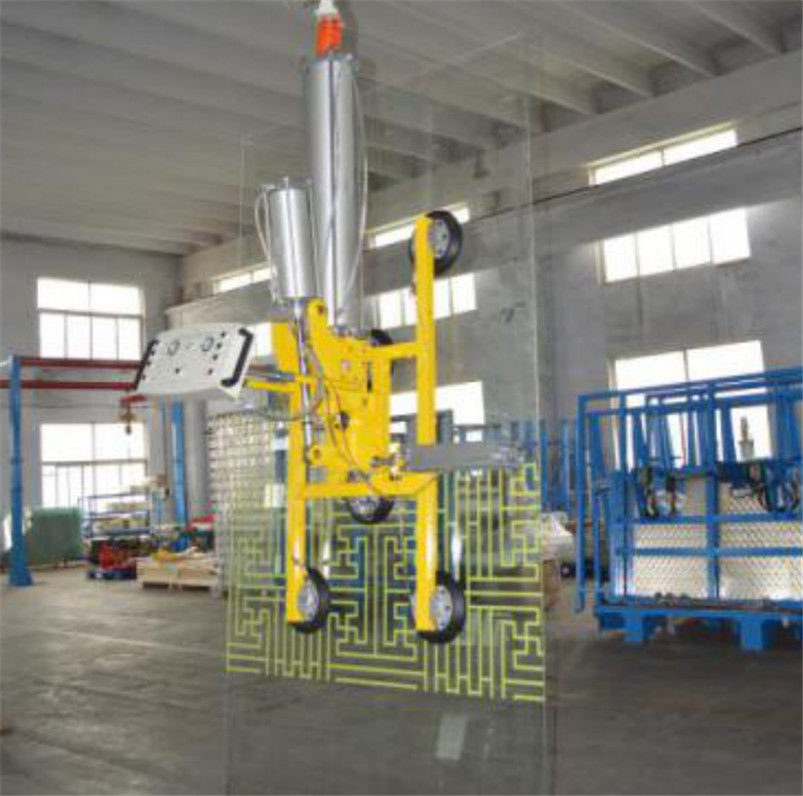

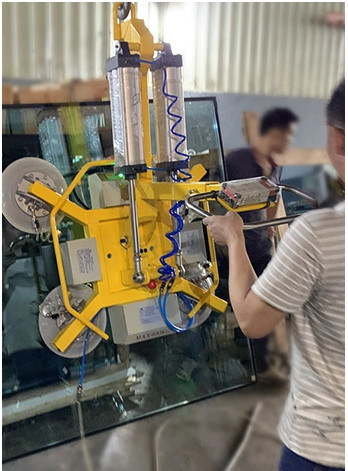

Glass Cantilever Crane with lifting sucker
Parameters:
| Max Glass weight | 360KG | |
| Rotation angle | 90° | Left and Right |
| Suction cups | 4 Pieces | |
| Cups Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air control parts | Airtac |
Parameters:
| Max Glass weight | 260KG | |
| Rotation angle | Rotate 90 ° | Left and right |
| Suction cups | 2 pieces | |
| Cups Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4meters | |
| Air control parts | Airtac |
Parameters:
| Max Glass weight | 500KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 6 Pieces | |
| Cup Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air Control parts | Airtac |
| Max Glass weight | 400KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 2 pieces | |
| Cups Materials | Silione | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air control parts | Airtac |
Other products of LIJIANG GLASS
LJBZ2025 Vertical Automatic Insulating glass production line
APPLICATION
As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.
1. Low-e glass sensor
This sensor is installed before washing machine.It can automatically recognize Low-e glass,preventing the glass from dropping Low-e surface.
2. Conveyor roller
The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big size glass and thick glass pass through smoothly.
3. Washing&Drying machine
The whole washing &drying machine adopts stainless steel,including the plate and interior spare parts.And some slider block are copper.
3.1 Washing part
It has 3 pair of brushes, which are all soft brushes, washing flat glass,tempering glass and low-e glass.It has a diameter of less than 0.1mmde bristles,which will never damage glass,especially low-e glass .
Noise reduction device
The noise can be controlled below 90 decibels by using nylon gear and sponges.
4.1 Pressing way
It presses IGUs by hydraulic station with pressure, it guarantees the precise pressure.
4.2 Energy saving of pressing function
It adopts 3 micro switches,which divide the pressing part into 4 sections.
Each micro switch receives the signal and adds a part of the working area. When the corresponding micro switch is not touched, the region does not work.
The work area can be divided in this way.
4.4 Stepped glass(Optional)
It also can make stepped glass with a servo motor.
5, touchscreen and electric box.
Main Parameters:
| Washing speed | 2~10m/min |
| Max.working speed | 45m/min |
| Washing glass thickness | 3~15mm |
| Max.insulating glass thickness | 60mm |
| Conveyor height | 500mm |
| Min.glass size | 450×280 |
| Max.glass size | 2000×2500 |
Main components:
| Circuit breaker | schneider |
| Contactor | schneider |
| PLC | Siemens or omron |
| Touch screen | Taiwan Wenview |
| Power switch | Taiwan |
| Frequency | Dongyuan or Siemens |
| Relay | Japan Omron |
| Optoelectronic switch | Korea Autonics |
| Servo motor | Siemens |
| Pneumatic component | Taiwan Airtac |
Touch Screen operating convenient Insulating Glass processing line with 98% Argon gas filling
LJBZ2570PG Automatic Vertical insulating glass processing line has the following functions: Washing flat glass, Installing aluminum frame, Pressing normal IG units, Pressing double IG units, Pressing double three-layers IG units.
LJBZ2570PG is a special equipment in the production of insulating glass with aluminum strip, which has many advantages, such as small footprint, reliable performance, high efficiency, convenient maintenance and so on.
Main feature of Jumbo size insulating glass production line
● touch screen interface,Germany Siemens PLC control system
● Automatic identification of coated and Low-E glass
●The washing machine adopts SS material and waterproof device
Water tank with automatictemperature control and water washing system
● 3 pairs of soft brushes can wash online and offline Low-E glass
●Air Fan automatic start and stop setting
● Air heating system
●Noise reduction system
●Online display of washing speed
●Adjustable pressing board to keep the plate pressing surface straight
● Connection mode of aviation plug
Applicable to produce triple IG and shaped IG
●Intelligent intermittent work, saving energy
Main parameters of Automatic insulating glass processing line
| Power supply | Voltage | 380 |
| Frequency | 60 | |
| Total power | kW | ≈42 |
| Washing speed | m/min | 2~10 |
| Max.working speed | m/min | 45 |
| Min.glass size | mm | 450×280 |
| Max.glass size | mm | 2500×7000 |
| Washing glass thickness | mm | 3~15 |
| Max.insulating glass thickness | mm | 60 |
| Conveyor height | mm | 500 |
| Total gas consumption | L/min | 1500 |
Insulating glass processing machine adopts Siemens control system, equipped with high resolution touch screen, the operator can modify the working parameters of the production line at any time, and can clearly display the status of each input and output signal, which is convenient for the routine maintenance of the machine.
LJBZ2570PG Unloading section.
LJBZ2500PG is not suitable for bow glass or twisted glass because the plane inside the pressing section is immutable.
LJBZ2500PG is a pressing machine with a new filling gas technology. This equipment is suitable for high and new technology glass pressing and filling gas machine with various gases or mixed gases. Because the control system detects preset types of gases (including mixing ratio of mixed gases) and flow rate before each gas or mixture is filled with insulating glass.
LJBZ2500PG Glass pressing and filling gas section is suitable for pressing double IG units or three-layer IG units at the same time. All kinds of flat glass (including coated glass and glass-clamped glass) can be pressed by this machine.
LJBZ2500PG can be used to measure the gas concentration of insulating glass on line. The measuring device in front of the equipment can accurately measure the size and thickness of the glass and calculate the amount of gas needed.
LJBZ2500PG can press and fill gas into two pieces of IG units whose length is less than 1.5m at the same time, which greatly improve the production efficiency, especially for the glass whose length is less than 1.5m.
Main Features
• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%
• Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU in once time. Can reach 27s for each 1m*1m double glass, improving work efficiency highly
• High-speed IG processing line, we have obtained patent rights in China in 2019
• From transfer part to pressing part, each part is divided
• Suitable for mass production in a factory. Ultra-fast speed
• Solving the problem of waiting for working on the sealing robot. Installing two spacer frames for two IGU by one workman
• Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing) with ERP system (Optional)
Technical data
| Max. glass size | 2500mm*7000mm |
| Max glass size for filling gas | 2500mm*7000mm |
| Min. glass size | 280mm*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 54.5KW |
| flat glass thickness | 3-30mm |
