Product Details:
|
| Name: | Vertical Insulating Glass Sealing Robot | Max Size: | 2000*3000mm/2500*4000mm |
|---|---|---|---|
| Advantage: | Shape Glass And Stepp Glass | Glass Thickness: | 12-56mm |
| Power: | 18Kw | Voltage: | 380V 50Hz 3P |
| High Light: | 8 Servo Insulating Glass Sealing Robot,Polysulfide Insulating Glass Sealing Robot,Vertical insulated glass sealing machine |
||

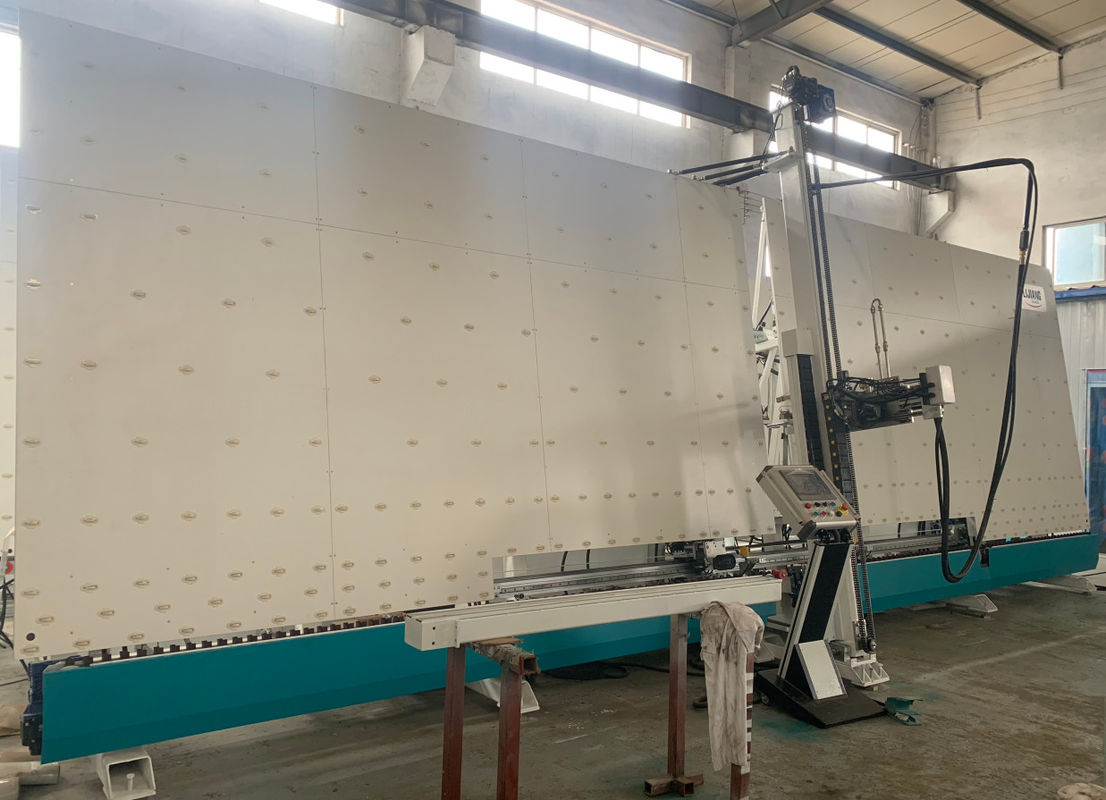

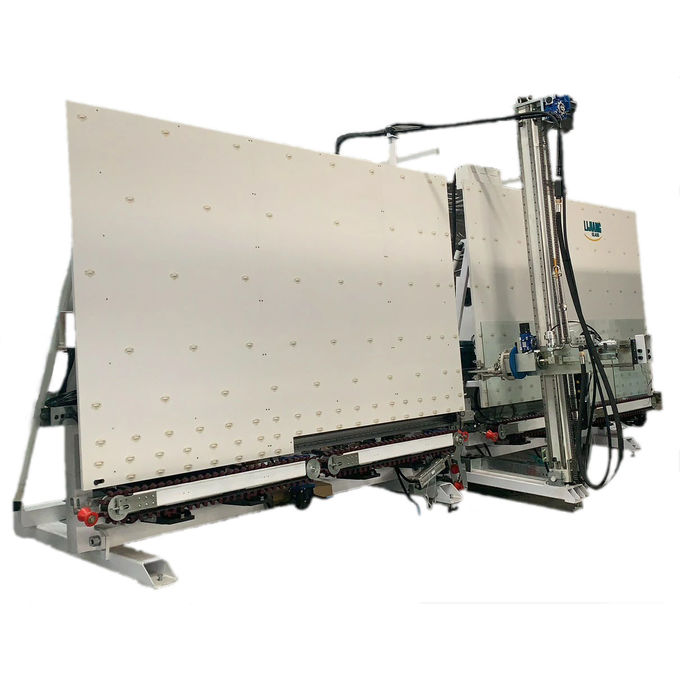

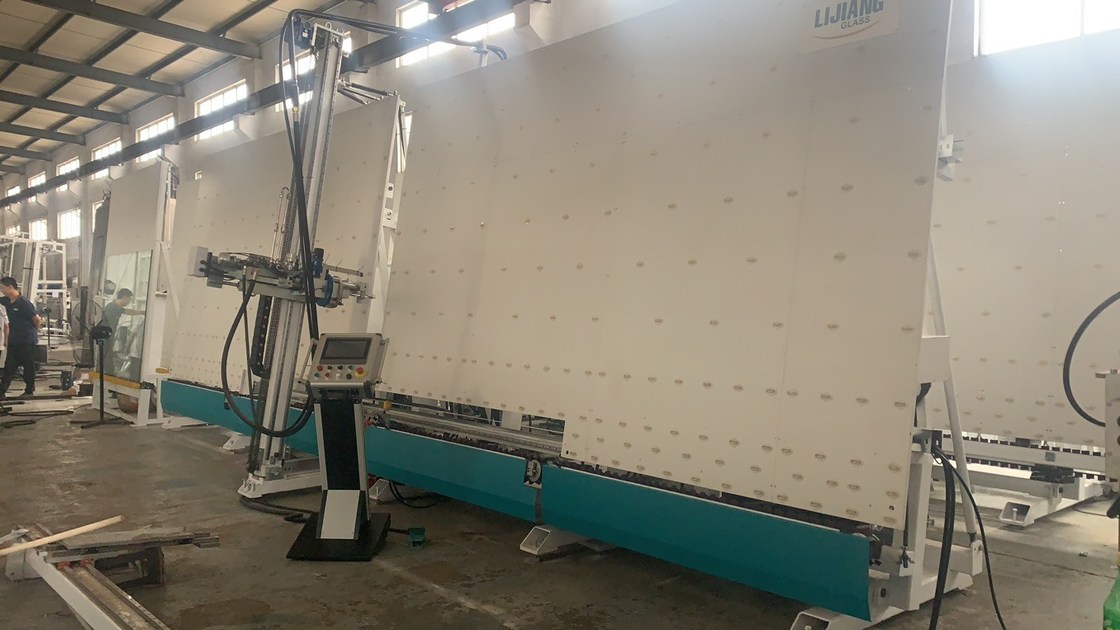

8 Servo Motors Automatic Insulating Glass Sealing Robot
►Machine Description of Insulating Glass Sealing Robot
This type of machine is a full automatic and high-efficienc sealing robot for insulating glass processing. Automatically measure glass size, glue depth and glue speed with linear adjustment. Single-function parts are equipped with manual functions, easy adjustment.Can coating more than 8 kinds of shaped glass,include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc.
► Application of Insulating Glass Sealing machine
Min & Max glass sizes can be optional
Adopt 8 servo motors
Adopt Japan ANCHUAN servo control system with stable performance
Automatically measure glass size, glue depth and glue speed with linear adjustment
Adopt timing belt to keep smooth convey with accurate position
Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
The glass corners are full without air bubbles, smooth surface, no need to
Full automatic and high-efficiency machine
New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
Automatically repair glass corners with beautiful surface
Smooth convey without scratch and pollution
Single-function parts are equipped with manual functions, easy adjustment
Shaped IG units (Optional)
Stepped IG units with four sides (Optional)
Double and Triple IG units
►Main technical parameter of insulated glass sealing line
| Max.glass size | 2000*2500mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.5-0.7MPa |
| Squeeze pressure | 32MPa |
| Overall dimension | 8000*1500*2700mm |
►►►Sealing head showing
►►►Electrical parts Showing
The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and revering mechanism and rotating.
The main electrical components are adopted Siemens, SMC and so on famous spares to maintain more stable performance.
►►►Tow pump syetem( optional )
Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.
Features: Neutral glue, no pollution to the environment Fast curing, will not corrode the surface to be adhered Excellent weathering resistance and good temperature resistance Good adhesion to most building materials without primer
The main purpose: Suitable for insulating glass sealing in construction, transportation, refrigeration and other industries
