Product Details:
|
| Name: | Edge Machinery For Glass Processing | Total Power: | 3kw |
|---|---|---|---|
| Dimension: | 2000*1200*820 Mm | Weight: | 120 Kg |
| Power Supply: | 380 V 50hz | ||
| High Light: | Irregular Glass Edge Grinding Machine,Manually Glass Edge Grinding Machine,Small Glass Edge Grinding Machine |
||

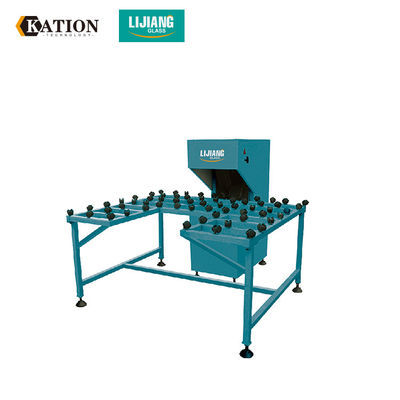

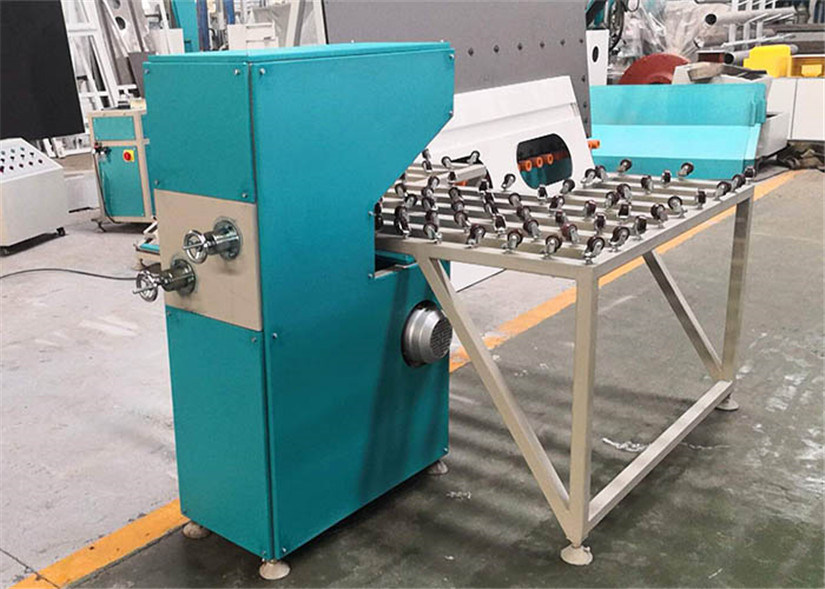

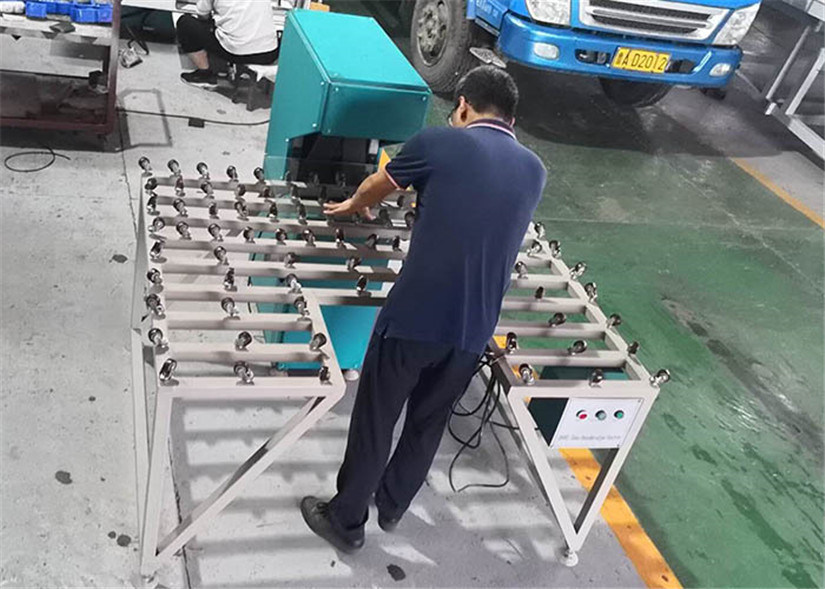

Small size portable manually glass irregular shape edge machinery for glass processing
LJMB95 sand belt edging machine is used for rough grinding and chamfering after cutting the original glass plate.The operation is simple, the labor intensity is low, the production efficiency is high, is all kinds of doors and Windows safe production is indispensable.High cost performance
Vertical Automatic Low-E film removing edge deletion machine
Overview of automatic Low-E glass deletion machine
Automatic Low-E Deletion Machine is used to delete the edge film of the Low-e glass. The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation. High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.
Main feature
• Two-way glass access
• Automatically measure size
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing
Technical data
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan |
OMRON |
