Product Details:
|
| Certification: | CE | Production Name: | Automatic Molecular Sieve Filling Machine |
|---|---|---|---|
| Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm | Filling Aluminum Frame's Minimal Size: | 300mm*250mm |
| Aluminum Specifications: | 6-27A | Faction: | Aluminum Spacer Drilling,filling And Sealing |
| Application: | Insulating Glass Processing | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm | Optional: | Big Barrel |
| High Light: | Automatic Desiccant Filling Machine,Double Glazing Desiccant Filling Machine,Double Glazing desiccant inserter |
||
Automatic Desiccant Filling Machine Adopt Siemens PLC servo control system with stable performance,it can Automatically measure glass size, glue depth and glue speed with linear adjustment, coating glass with silicone,glass corners are full without air bubbles, smooth surface.
Features of Automatic Desiccant Filling Machine
•Touch screen interface, simple and visible
•Adopt Siemens PLC control system automatic desiccant filling machine
Technical parameter of Automatic Desiccant filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |

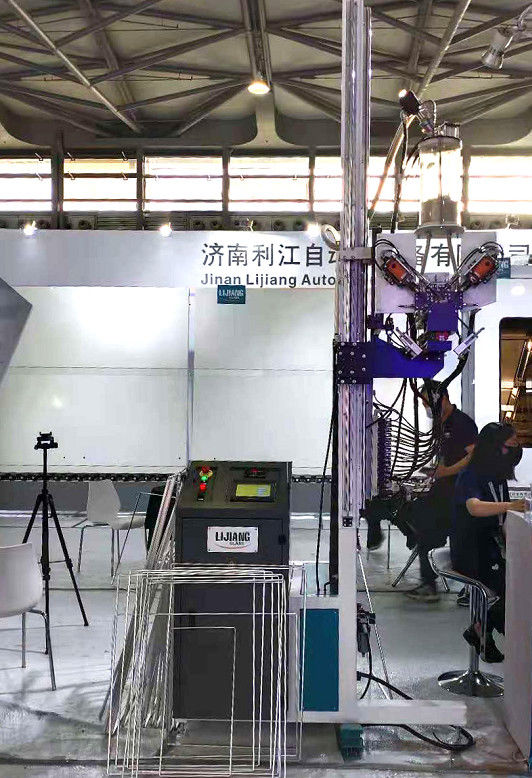

Product overview of Double Glass Molecular Sieve Filling Machine
1.Desiccant filling machine height can be adjusted according to the size of spacer frame
2.Electrical component are all Germany Brand-Siemens.
•Adopt Siemens PLC control system automatic desiccant filling machine
3.Auto drilling, filling and sealing function,Molecular sieve can be 0.5 -0.9mm or 1.0 -1.5mm sizes
4.Molecular sieve filling machine have Protection device for machine head.
5.Desiccant automatically loading from the Materials bucket.
6.All the electrical wires have the ID number,it can match with specification , So it will be very easy for the further communication in the after sales service .
Related products
Aluminum automatic spacer bar bending machine for insulating glass
Features of Aluminum Spacer frame Bending Machine
• 4 or 12groups of spacer racks
• Bend aluminum spacer, smooth stainless steel, warm spacer
• Bend spacer frames continuously
• Automatically avoid the pins while bending and cutting
• Automatically cut and feed aluminum spacers
• Aluminum spacers are available in sizes of 6A-27A
• Siemens 1200 PLC control system with fast working speed
• Pause and Reset device for handling equipment failures
• Connect to ERP system
• Drill holes
• Printing code
• Printing label sticker
• Different bending tools for different sizes of spacers
• USB input function, read the excel format file directly Optional functions
• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools
Technical Data of Automatic Aluminum spacer bar bending machine
|
Max. bending size
|
2000mm*2000mm |
|
Min. bending size
|
250mm*180mm |
|
Aluminum spacer width
|
6A - 27A |
| Spacers racks | 4 Racks |
|
Spacer size error
|
±0.5mm |
|
Angle error
|
±1° |
|
Processing speed
|
< 25s (1000mm*1000mm) |
|
Air supply
|
≥0.65MPa |
| Voltage | 380V50Hz 3P |
| Total power | 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Overview of automatic aluminum spacer bending machine
Double glazing glass is made by 2pcs or more float glasses which filled with desiccant of Argon gas with Aluminum frame.Primary seal(butyl)between insulating glass and Aliminum frame, secondry seal(polysulfide or structure). Insulating glass will be effectively protect radiation when coated Low-E film.
Detail of Automatic Aluminum spacer frame bending machine
1.Automatic Aluminum spacer frame bending machine have Four or Twelve different spacer size storage units can choose.
2.Adopt German siemens plc control system,touch screen interface.Siemens 1200PLC control system with fast working speed.
3. Aluminum spacers are available in different specifications and in sizes of 5.5-26.5mm.
4Automatic spacer Support continuous bending , it automatically avoid spacer -connection while bending and cutting
4.Automaticlly cut and feed Aluminum spacers
5.Heavy duty connectors ,convenience and safety for installation and debugging
6.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)
7.USB input function ,it can read the excel data directly
8.Spare parts of all machine have ID code ,convenient for after-sale service
9.The special machine hand device is used to bend big spacer frame
Related Product
Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A-27A |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
Sealant-spreading Machine LJST02A
Main feature
• Imported motor system to improve equipment efficiency
• Imported sealant gun,stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
Automatic Smart Vertical Edge Deleting Machine LJCM2545
Main feature
• Two-way glass access
• Automatically measure size
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing
Technical data
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 1. 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
